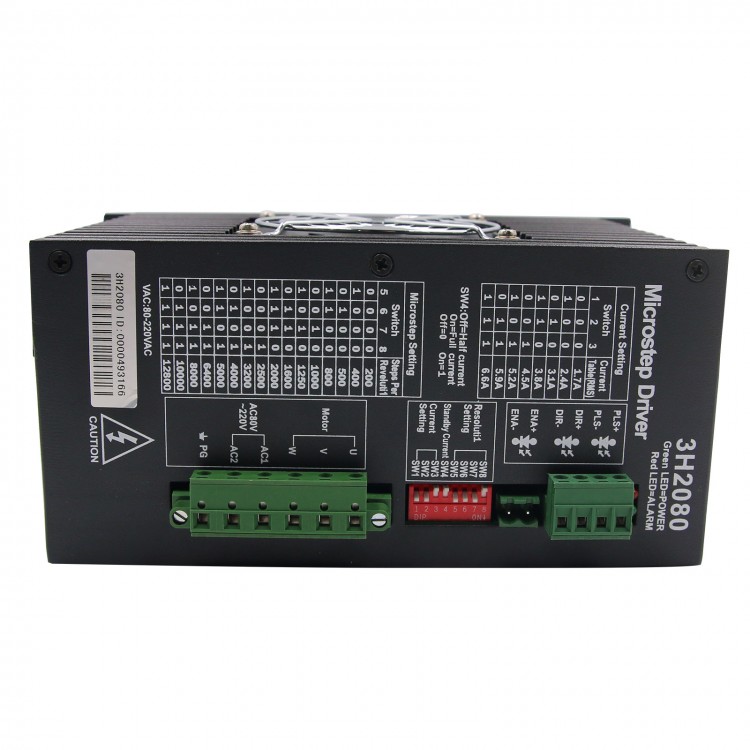

ZM-3H2080 AC220V Hybrid Microstep Driver 64 Subdivision Adaptation 3-Phase Stepper Motor Driver CNC
Feature:
- 80-220V AC power supply, can adapt to the most severe grid environment
- H bridge bipolar constant phase flow subdivision drive
- Original speed adaptive circuit, automatic optimization
- Subdivision current setting
- 2-64 subdivision 16 kinds operating modes
- Over current, over voltage, under voltage, over temperature, short circuit protection
- Offline (ENA) protection
- Single pulse function
Performance index
ZM-3H2080 is an constant torque micro stepping drive. The voltage is AC 80V-220V, adaptation current is less than 6.6A. For the diameter: 86-130MM types of three-phase hybrid stepping motor. The driver uses circuit that is similar to servo control law , this circuit can make the motor running smoothly, almost no vibration and noise. Due to the high operating voltage, the motor at high speed when the torque is much higher than the other three phase, five phase hybrid and traditional stepper motor. Step by step to stop more than 100m/s, drive current automatically halved. Positioning accuracy can be over 12800 steps / rotation.
Note:
1, When the temperature is more than 70 degrees, stop working, the fault red indicator lights. Then needs to supply power to driver to recovery work. If there is overheating protection, please add the radiator.
2, Over current (current too large or too small), the fault indicator lights, please check the electrical wiring and other short circuit fault or whether the voltage is too low, if the motor wiring and other short-circuit faults, supply powet to it.
3. When the power is on, the green indicator light is on, and the red indicator light is on when the ENA signal is entered.
4, When the protection function is started, the motor shaft to promote the self - lock, power indicator light, if you want to resume normal work, need to confirm the above fault elimination, and then power on, power indicator light green, motor shaft is locked, drive will work normally.
Package included:
- 1 x Stepper Motor driver
