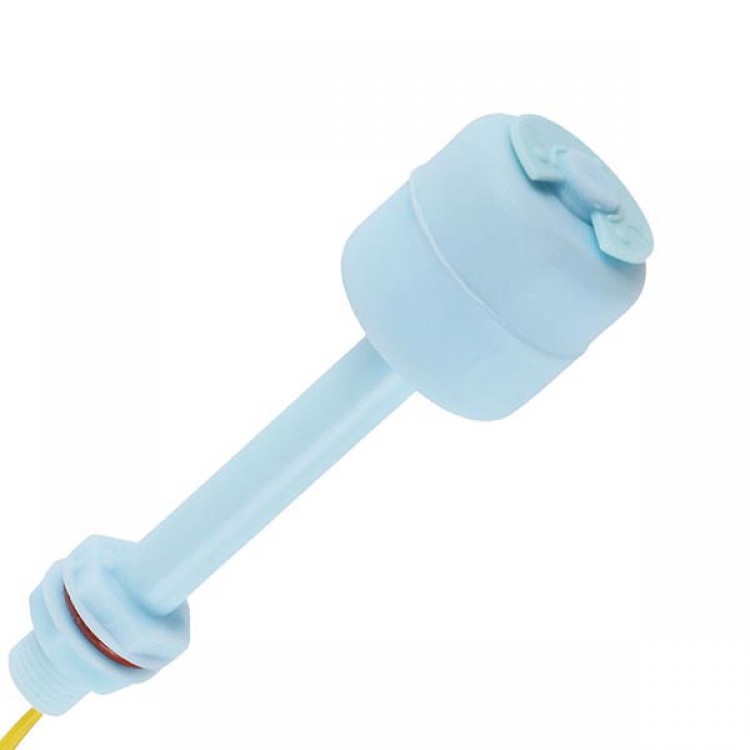

ZP5210 Plastic Level Measurement Magnetic Float Switch 2Pack
Specifications:
Float Switch 5210
- Low cost
- Long life
- Simple installation
- Wide application

Movement explaination:
When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.

Specifications:

Specification 1A 2A
Max contact rating 10W 50W
Max switching voltage 100VDC 220VDC
Max switching current 0.5A 1.5A
Max breakdown voltage 220VDC 300VDC
Max carry current 1.0A 3.0A
Max contact resistance 100Ω 100Ω
Temperature rating -10-+85°C -10-+85°C
Float ball material P.P P.P
Float body material P.P P.P
Reversible switch action Yes Yes
