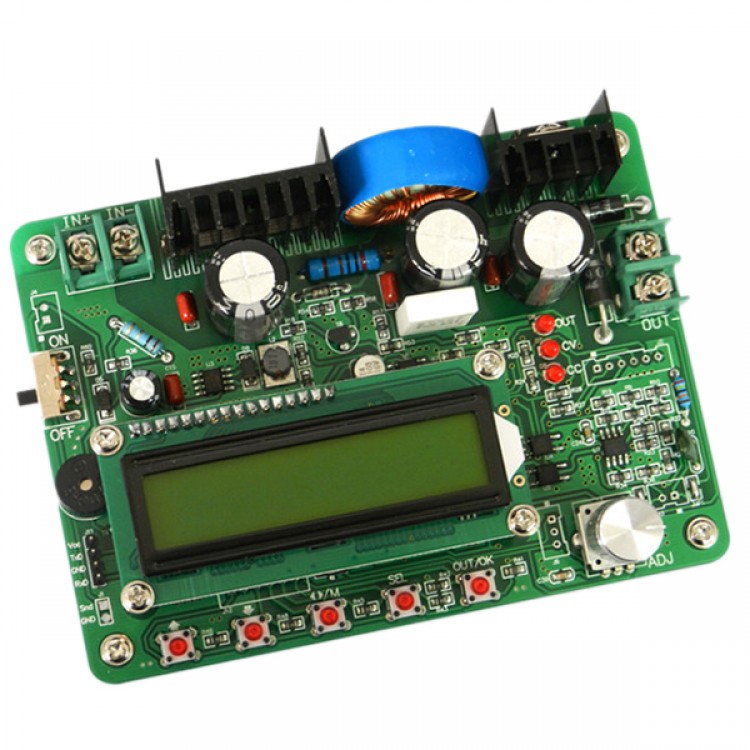

ZXY6005 Upgraded Version ZXY6005S Full CNC Constant Voltage Current DC-DC Regulated Power Supply Programmable Module 60V 5A 300W

Features:
- Switching power supply technology based on BUCK architecture, the operating frequency is as high as 150KHz
- Wide DC input voltage range: DC13V ~ 62V, suitable for a variety of pre - level input power
- Operation buttons and multi - functional encoder, easy to use
- High accuracy and high resolution 10mV/1mA
- Low ripple and low noise
- Constant current CC, constant voltage CV and output ON indicator
- LCD1602 l liquid crystal display
- Can be used to adjust the knob and button, the voltage and current regulation
- Can measure the output voltage, output current, output power, output power (AH), working time
-  Minimum differential pressure 2V can still work stably
- With output off function keys to open or close the output
- M0~M9, 10 sets of parameters settings, it can be easily transferred out.
- Onoard buzzer operation tips or alarm function
- Intelligent control function of the three stage charging of L for easy use
- TTL serial communication, improved communication protocol for centralized control
- Button calibration: the use of the process, if there is a key feature of the dislocation, you can press the OK button to start, pause 5-7 seconds after release, you can complete the key calibration

Parameters:
- Input voltage range DC13V ~ 62V
- Output current range: DC0 ~ 60V
- Output current range: 0 ~ 5A
- Output power: 0-300W
- Output voltage setting resolution: 10mV
- Output current setting resolution: 1mA
- Power effect: CV(<0.5%+10mV); CC (<1%+5mV)
- Loading effect: CV(<0.5%+10mV); CC (<1%+5mV)
- Output Ripple: <20mVpp
- Voltage display error: ± 0.5% +2 words
- Current display error: ± 1% +5 words
  Type of protection:
- Over-voltage OVP: setting range is 0.01V to 62.00V
- Over-current OCP: setting range 0.001A to 5.100A
- Over power OPP: setting range 0.001W to 5.100A
- Overcharge OAH: setting range 1mAH to 900AH
- Operating temperature: 0-40 degree C
- Storage temperature: -20~70 degree C
- Size: 135x95x38 (mm)
- Weight: 200g

Package included:
- 1 x ZXY6005S digital control Step-down Module
- 1 x Data cable
- 1 x Manual
