ZXY6010S Intelligent DC-DC Digital Control TTL Output CC CV Power Supply 60V 10A 600W

Availability: Out Of Stock

  • Price:$75.90
  • Price in reward points: 759 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $74.38 $72.86 $70.59 $67.55 Contact US
Quantity:

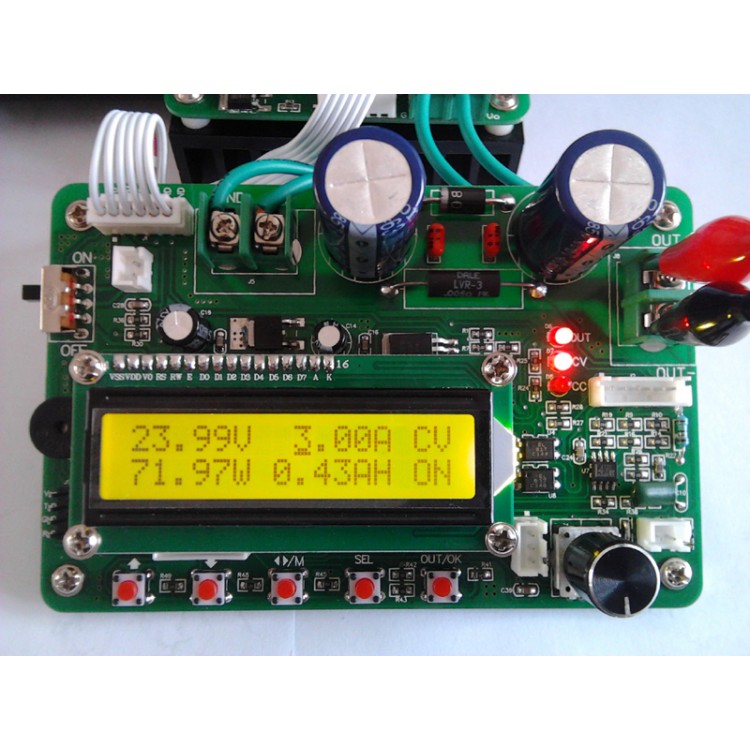

ZXY6010S Intelligent DC-DC Digital Control TTL Output CC CV Power Supply 60V 10A 600W

Description:
- Intelligent DC-DC Digital Control CC CV Power Supply 60V 10A 600W

Introduction:
- ZXY6010D/S is a one-single output,highpowered and programmable switching power supply.Its specification is 60V,10A,600W.This model has a very small size and ultrathin body.Besides,ZXY6010S has equipped whit TTL serial interface.It can provide you with multiple proposal to meet your test demands.The main special function and advantages are as follows:
- Based on BUCK framework of switch power supply technology,work frequency at 150KHz
- DC input range: DC13V to DC62V suitable for a variety of previous input power digital key operation and multi-function encoder switch operation
- high resolution and accuracy
- low noise and ripple,to be on a par with liner power supply
- high resolution:10mV/10mA
- Light indicator power supply working condition,CC,CV,OUT
- LCD1602 display
- support measurement shows that the output voltage, current, power, AH, time
- minimum differential pressure 2V can still work stability
- with output shutoff function flexible open or shut off output
- M0 to M9 common 10 group parameter set
- plate load buzzer operation hints or alarm function
- plate load extension interface,convenient external expansion operation

Packing Included:
- 1 x ZXY6010S Module
