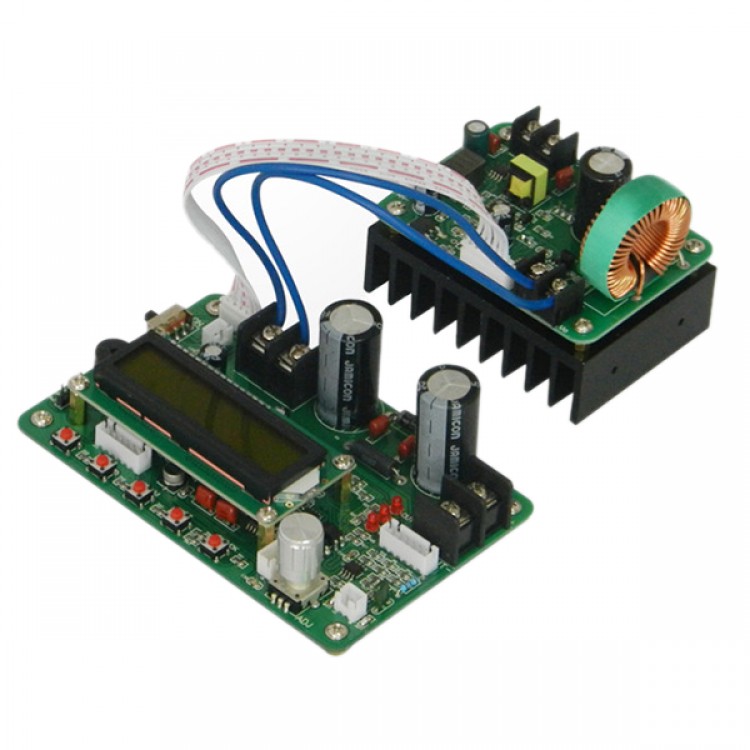

ZXY6010S Numerical Constant Voltage Constant Current DC-DC Programmable Power Supply Module 60V 10A 600W

ZXY6010S Numerical Constant Voltage Constant Current DC-DC Programmable Power Supply Module 60V 10A 600W

Description:
- ZXY60xx series of constant voltage constant current switching power supply is our newly developed DC-DC DC power supply products, switching power supply technology BUCK-based architecture, the operating frequency up to 150kHz, with a very wide input voltage range up to 15V to 65V output allowing the voltage is continuously adjustable from 0 to 60V (Note that is the BUCK architecture can not boost the output is always lower than the input), the current depending on the model, to achieve 0 to 10A continuous adjustment reasonable ZXY6010 design, materials used full back a large heat sink, a large margin, after 10 hours at full load pagers, stable performance, can work continuously at 10A full load, minimal heat, high efficiency.
 - The entire power output is controlled by the microcontroller, the LCD1602 LCD can display a number of parameters of the output voltage, output current, output power, output power (AH), the output time and the constant voltage CV and constant current CC status indication, intelligent shutdown suitable for a wide variety of applications such as laboratories, factories, workshops, and battery charging.

Features:
- Wide input voltage range of 15V to 65V
- A wide range of output voltage is continuously adjustable from 0 to 60V
- Minimum differential pressure of the input and output of up to 2V stable
- Adjustable range of the current models are continuously adjustable from 0 to 10A
- Automatic constant voltage constant current
- MCU intelligent control, with the output shutdown, open organ-off case, set the parameters of voltage and current, the output button is pressed, can be output.
- LCD1602 LCD display
- Able to display a number of parameters at the same time (voltage, current, power, power, time, etc.)
- High measurement resolution of 10mV, 1mA
- Overvoltage, overcurrent, overpower, over-charging electrical protection, overtime protection
- With buzzer alarm
- Performance indicators and related instructions:
- Input voltage range: DC15 ~ 65V
- Output voltage adjustment range: DC0 ~ 60V
- Output current adjustment range: DC0 ~~ the 10A
- Power effect: CV less than 0.5% +10 mV CC is less than 1% of +5 mA
- Load effect: CV less than 0.5% +10 mV, the CC is less than 1% of +5 mA
- Output Ripple: <50mVpp (10A full load)
- 100Hz volatility transmission ratio: less than 1/10000 (Note: this indicator after the voltage of the DCDC transformer rectifier filter as the main power!)
- Typical Efficiency: input 54V, output 24V situation more than 90%
- Display accuracy: 10mV, 1mA
- Voltage error: ± 0.5% +2 word
- The current display error: ± 2% to +10 words
- Type of protection:
   Over-voltage OVP: setting range is 0.01V to 62.00V
   Over-current OCP: setting range 0.001A to 11.00A
   Over power OPP: setting range 0.001W to 11.00A
   Overcharge with OAH: setting range 1mAH to 900AH
- The OFT overtime: set range from 1 second to 90 hours
- Size of power module (with radiator): 85x63x70 (mm)
- Size of control module: 130x85x43 (mm)
- Net weight: 410g

Package included:
- 1 x ZXY6010S Power Supply Module
