100M PLL OCXO Phase Locked Loop OCXO with 10MHz Input 100MHz Output and Ultra-Low Phase Noise

100M PLL OCXO Phase Locked Loop OCXO with 10MHz Input 100MHz Output and Ultra-Low Phase Noise

Description:

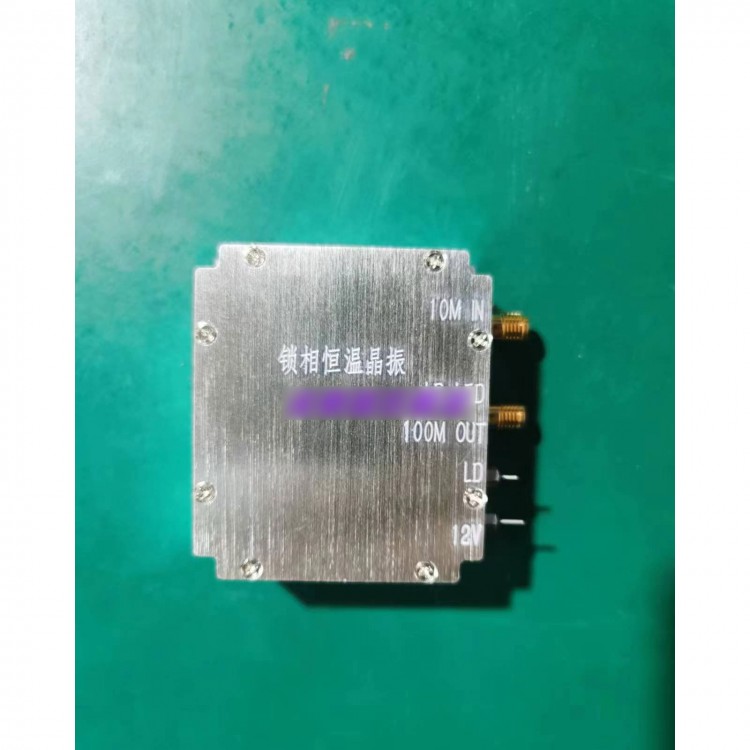

YX100-LPN Phase-Locked Crystal Oscillator with external 10 MHz input and 100 MHz frequency output. It integrates a high-stability, low phase noise oven-controlled crystal oscillator internally. Through internal analog phase locking, it ultimately outputs a low-spurious, low-phase-noise 100 MHz frequency. The PLL OCXO is suitable for microwave product applications such as RF module reference and system clock synchronization.

Specifications:
* Input Frequency: 10 MHz
* Output Frequency: 100 MHz
* External Reference Input: Input Frequency: 10 MHz; Input Power: 0 to +10 dBm
* Frequency Stability: Synchronized to external reference
* Frequency Accuracy: Synchronized to external reference
* Input Impedance: 50 Ω
* 100 MHz Frequency Output: Output Frequency: 100 MHz; Spurious: ≤ -70 dBc; Harmonics: ≤ -30 dBc; Output Power: ≥ 5 dBm
* Operating Voltage: +12 V
* Maximum Voltage: +15 V
* Operating Current: ≤ 500 mA
* Dimensions: 57 × 50 × 20 mm

Packing List:
* 1 x Phase Locked Loop OCXO

Packaging Details:
* Weight: 0.3kg
