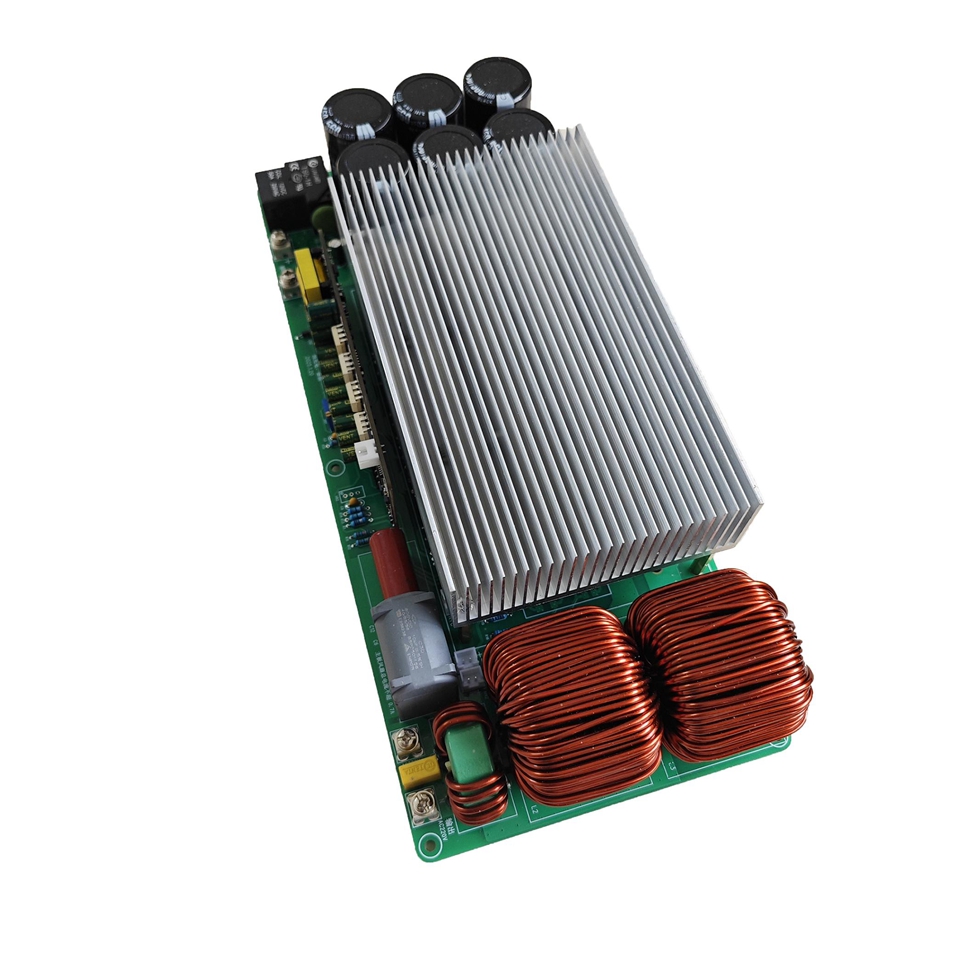

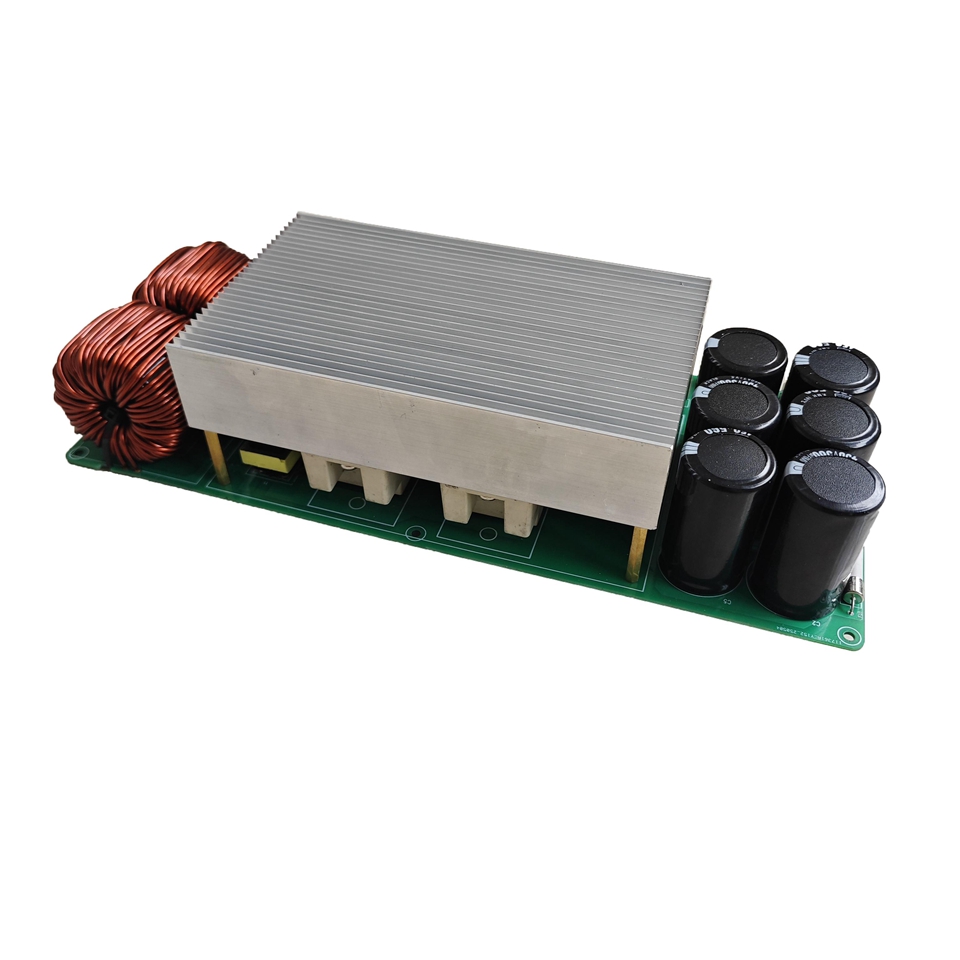

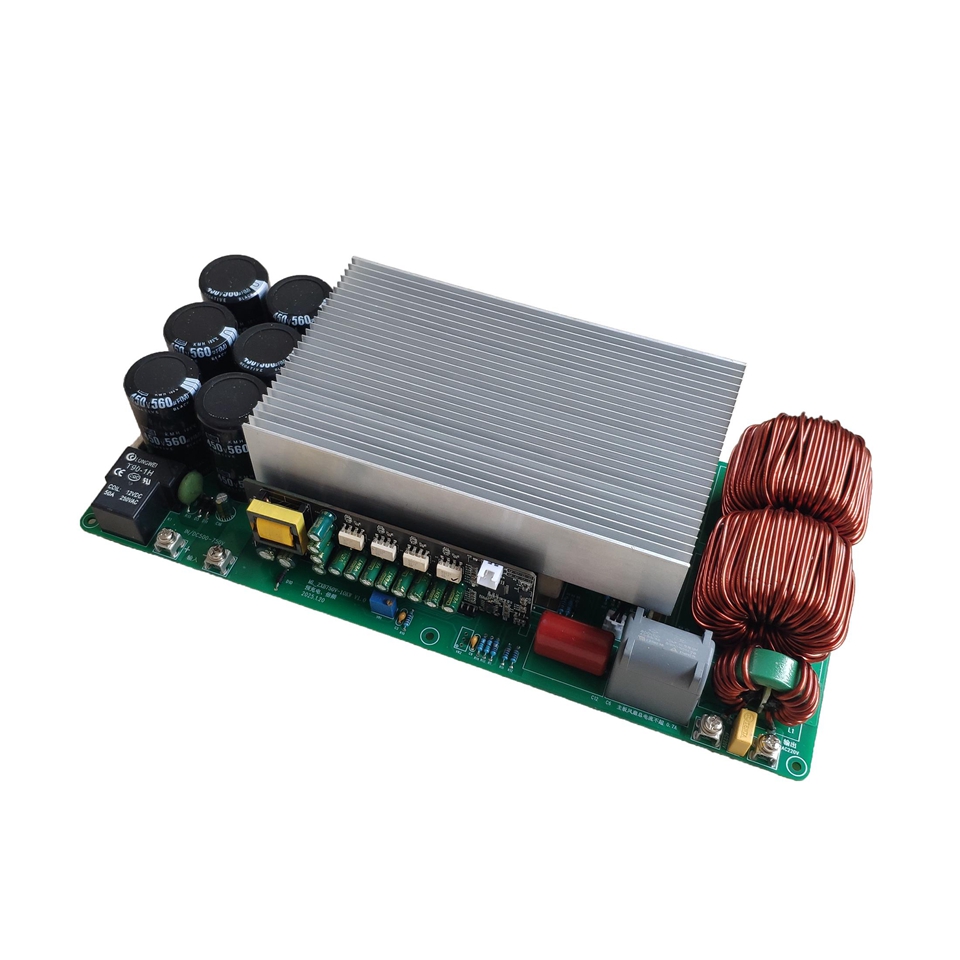

10KW DC500-750V Input AC220V Output Pure Sine Wave DC-AC Inverter Board with Pre-charging
Functions:
- It adopts the latest dedicated IGBT driver board with positive and negative voltage. A current transformer is added to the original sampling resistor for more sensitive dual sampling protection, thereby better ensuring that the IGBT power transistor is not easily damaged! The motherboard comes with overload protection, short circuit protection, low voltage protection, and over temperature protection, and the driver board has an auxiliary fan socket (12V maximum 0.35A)! There are also 2 fan sockets on the motherboard (single 12V 0.35A, maximum 0.7A for two fan sockets). The fan is intelligently controlled for temperature and power, ensuring better heat dissipation.
Application:
- This product can be used for new energy vehicles to convert power to 220V or for multiple batteries connected in series to form a high-voltage pool to convert to AC220V, a low-voltage square wave inverter to convert to 220V, a PFC boost to convert to 220V, a charging pile power collector to convert to 220V. In addition to the above uses, it can also be used for photovoltaic inverter to convert to AC220V (energy storage capacitors need to be added for photovoltaic panel power supply), modified wave inverter to sine wave inverter, high-frequency inverter to sine wave inverter, with a wide range of applications.
Specification:
- Input voltage: DC500 - 750V, the power will reduce when the input is below 500V
- Output voltage: AC220V
- Output frequency: 50Hz
- Output waveform: pure sine wave
- Product size: 305 x 135 x 65mm
Package Included:
- 1 x Inverter Board
