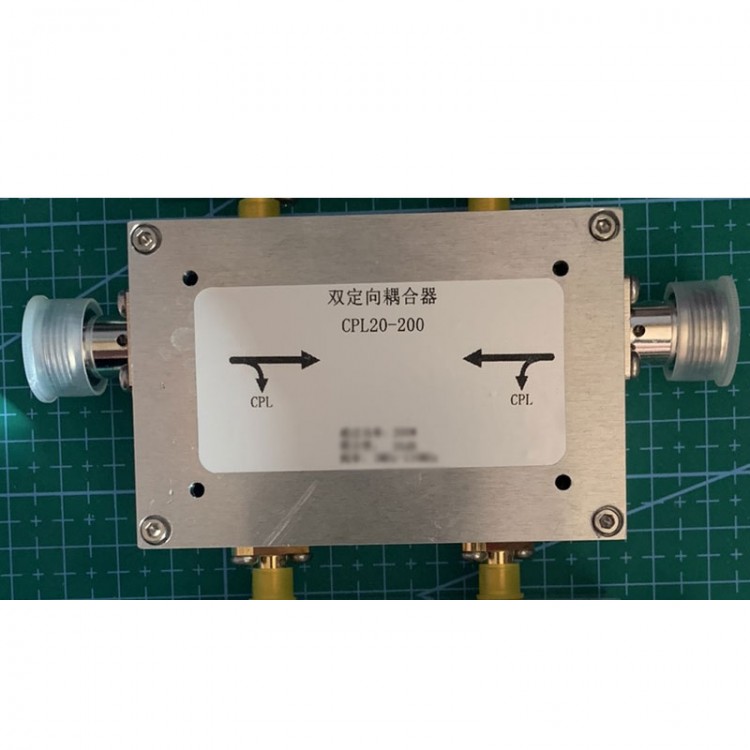

3MHz-50MHz 50dB Coupling 600W High Power Bidirectional Coupler HF VHF High Quality RF Accessory

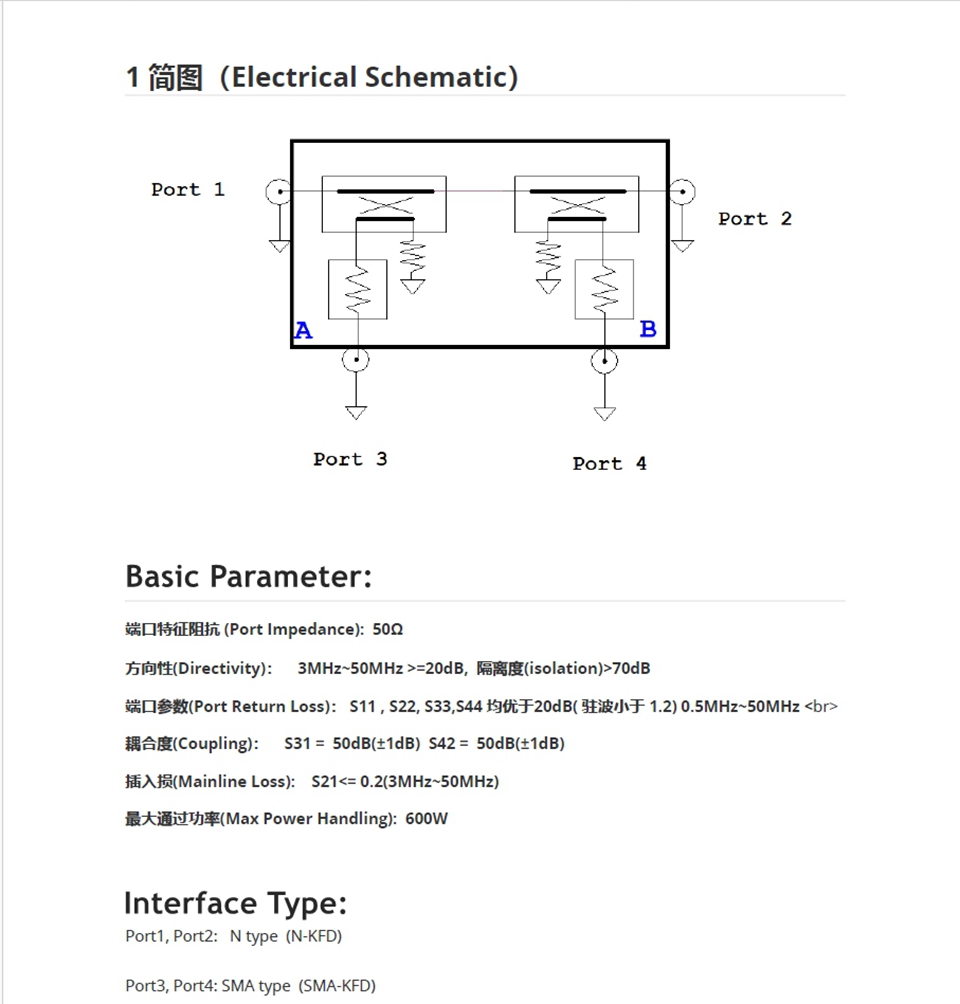

Specification:
- Port impedance: 50ohms
- Directivity: 3MHz-50MHz>=20dB
- Isolation: > 70dB
- Port return loss: S11, S22, S33, S44 all better than 20dB (SWR<1.2)
- Coupling: S31 = 50dB (±1dB); S42 = 50dB (±1dB)
- Insertion loss: S21<=0.2 (3MHz - 50MHz)
- Maximum power handling: 600W

Package Included:
- 1 x Coupler

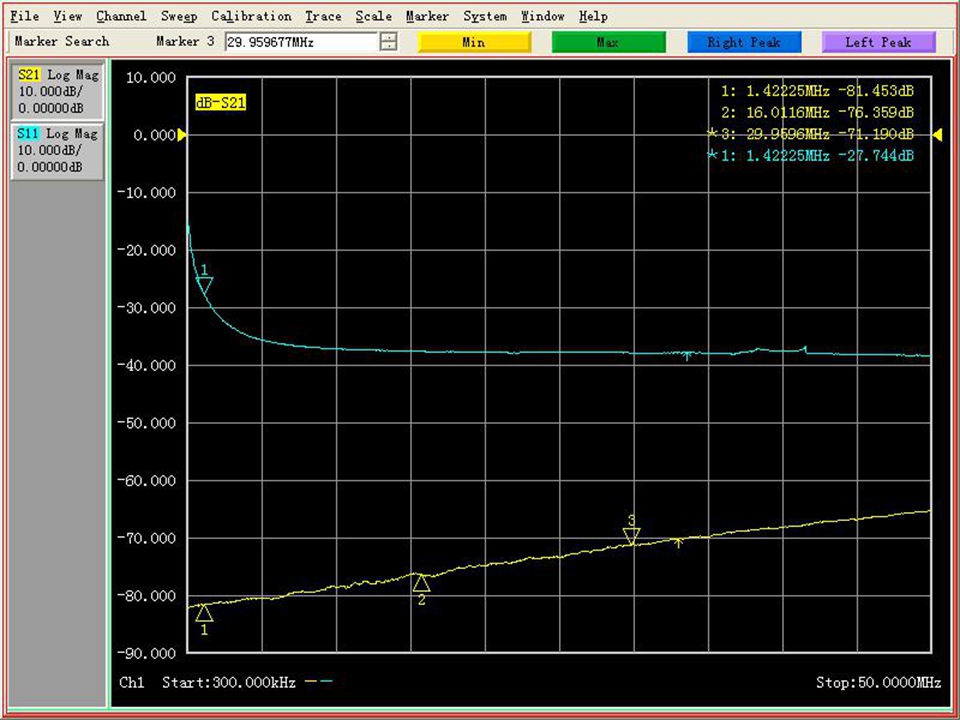

50dB Coupling Parameter:
