A600Y Bluetooth5.0 6-Channel Independent Power Amplifier 50Wx5+100W*1 Support Passive Subwoofer

A600Y Bluetooth5.0 6-Channel Independent Power Amplifier 50Wx5+100W*1 Support Passive Subwoofer

Differences:
- A600Y only supports passive subwoofers. A600S supports both active and passive subwoofers.
- The A600Y subwoofer output requires an independent subwoofer signal input, while the A600S can input a subwoofer signal separately or only input left and right channel signals.
- The display interface of A600S is more clear and the screen is larger.
- A600S is Bluetooth 5.3, A600Y is Bluetooth 5.0.

Features:
- Using Bluetooth chips with a higher version of 5.0. Realize faster transmission speed, stable signal stability, and lower connection power consumption. Simultaneously alleviated communication latency issues in versions 4.2 and below. Bluetooth link password: 0123 or 0000.
- Audio signal transmission without distortion and sound quality up to HF standard, providing you with a better music experience. Good hardware is only for reliable sound quality.

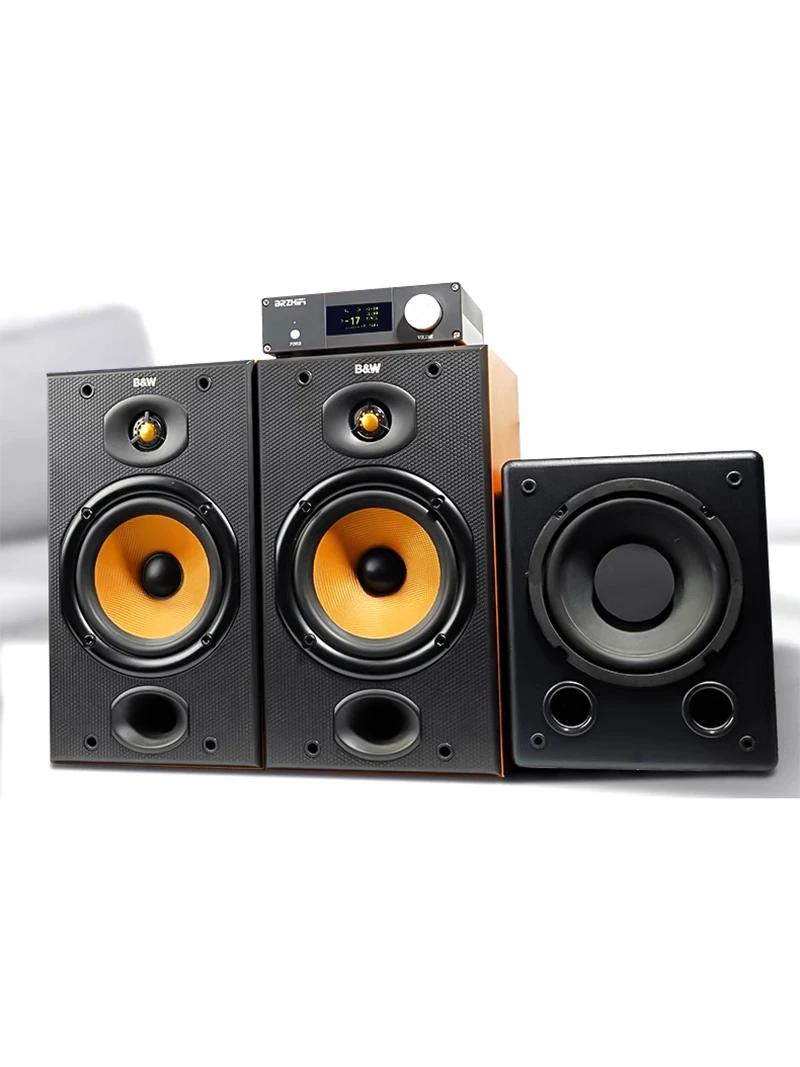

- Can connect multiple devices, such as televisions, front end speakers, laptops, desktop computers, mobile phones, for iPads, etc., suitable for various scenarios, KTV speakers, 5.1 home theaters, bookshelf speakers, etc.

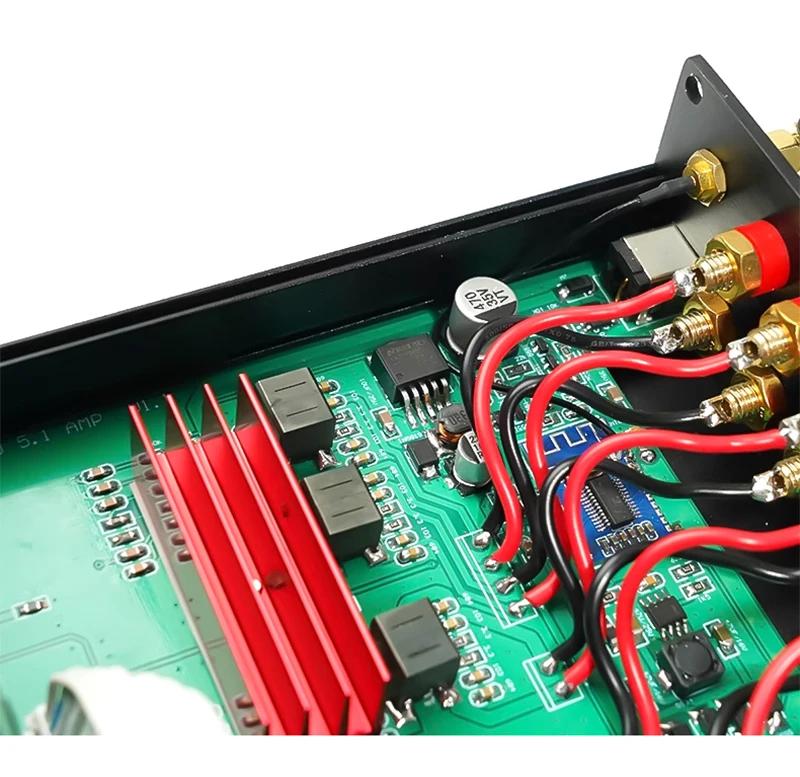

- Dedicated high current sealed inductor with low heat generation, good sound quality, and high efficiency.
- Bluetooth 5.0 is convenient to use, with clear sound quality and low interference. When Bluetooth input is prioritized, it is 2.0 output, and when the sound source input is 5.1, 5.1 output can be achieved.
- TPA3116D2, with a wide voltage input range, high efficiency without the need for filters, and other characteristics.
- M62446, integrated with 6-channel high-quality volume controller, originally designed by Japanese Mitsubishi.

Specification:
- Model: A600Y
- Product size: 178 x 145 x 50mm
- Net weight: 0.94kg
- Impedance: 4 - 8ohms
- Front main channel: 50W + 50W (recommended 3 - 8 inches)
- Surrounded channel: 50W + 50W (recommended 3 - 8 inches)
- Mid channel: 50W (recommended 3 - 8 inches)
- Bass channel: 100W (recommended 5 - 10 inches)
- Power supply: DC24V
- Power IC: TPA3116
- SNR: > 102dB
- THD+N: 0.01% (at 1kHz)
- Frequency:
  Front channel: 10Hz - 40kHz
  Surrounded channel: 10Hz - 40kHz
  Mid channel: 10Hz - 40kHz
  Bass channel: 10Hz - 180Hz
- Treble adjustment: front channel ±10dB (±2dB)
- Bass adjustment: front channel ±10dB (±2dB)
- Bluetooth: 5.0, support 44.1 - 48kHz
- Bluetooth protocol: SBC

Package Included:
- 1 x Power Amplifier
