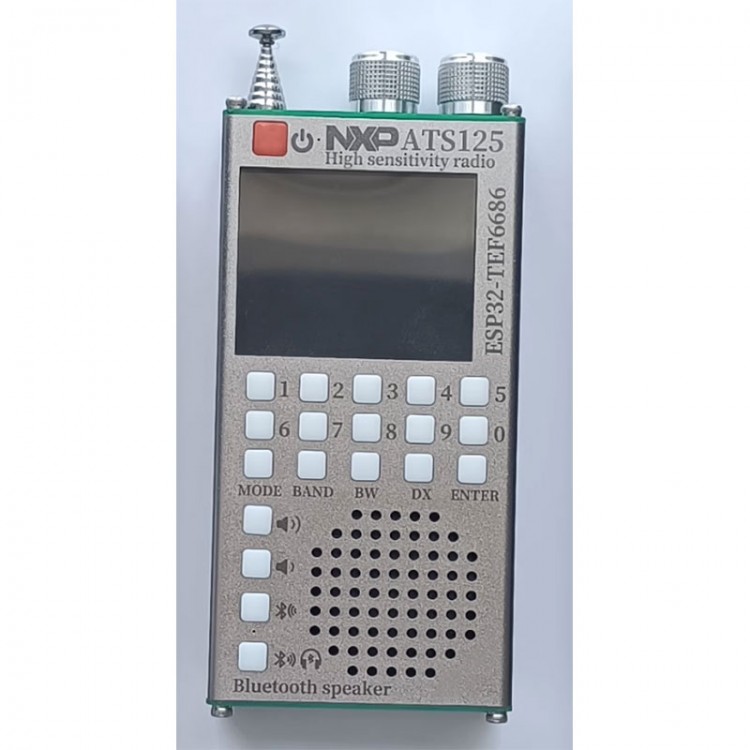

ATS125 High Sensitivity Multifunctional Bluetooth FM Radio TEF6686 Vehicle DSP Tuner with 2.4-inch LCD

ATS125 High Sensitivity Multifunctional Bluetooth FM Radio TEF6686 Vehicle DSP Tuner with 2.4-inch LCD

Description:
- The ATS125 is the latest high-performance, high-sensitivity, and multifunctional Bluetooth version radio produced after the continuation of the ATS20/ATS25/ATS100/ATS120/ATS200 series radios.
- It is an open-source project based on PE5PVB, optimized and combined with the high-performance Bluetooth chip from Jerry, and integrated with the NXP high-performance automotive grade TEF6686 chip for high sensitivity and high fidelity Bluetooth function radio. It has excellent selectivity and ultra-high sensitivity.
- This car DSP tuner has a wide range of functions and advanced algorithms (CEQ, EMS, iMS, PACS, noise eliminator...), software defined radio signal processing, and significant advantages in multi-channel improvement, adjacent frequency interference, weak signal processing, and noise cancellation.
- The radio built on TEF6668_SSP32 not only supports listening to radio stations, but also offers rich advanced features such as almost all RDS (Radio Data System) data display, automatic/manual radio scanning, mute function, battery voltage display, variable themes, multiple languages, radio presets, and more.
- We have redesigned the circuit board based on the mature TEF6686 locomotive front-end receiving circuit, and selected a 2.4-inch LCD color screen with resistive touch on the basis of an open-source project; While ensuring the portability of the machine, it can display rich RDS information (RDS information requires support from local radio stations); Added a numeric keypad for users to quickly input frequencies; Equipped with a large capacity battery of 2500mAH, it supports longer usage time.
- In short, this portable high-sensitivity travel Bluetooth version radio hopes to meet your satisfaction! Due to the continuous optimization and updates of the firmware by both domestic and foreign enthusiasts, new features will be introduced, and the manual may have different functional differences. We apologize for any inconvenience caused.
- PE5PVB project: https://github.com/PE5PVB/TEF6686_ESP32

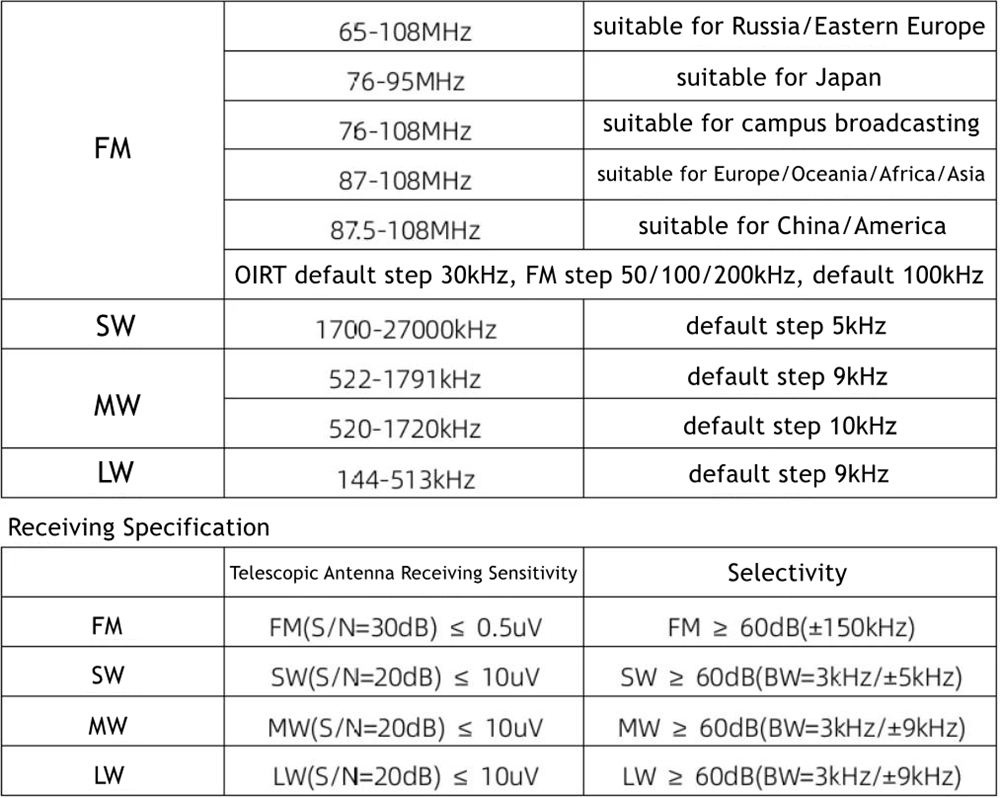

Basic Parameter:
- Main control chip: ESP32-WROOM-32U
- Bluetooth chip: JL high-performance Bluetooth transceiver chip
- Display: 2.4-inch 320x240, IPS full view LCD screen with resistive touch
- Control method: default numeric keypad input and knob tuning, also supports third-party touch screen firmware
- Antenna: Built-in 820mm ultra long rod antenna, with a 3.5mm external antenna interface at the bottom
- Speaker output: for TI audio amplifier chip TPA6211A1, the speaker uses a 40MM long stroke full frequency speaker, with powerful bass and transparent treble.
- Battery parameters: 3.7V/2500mAh, polymer lithium battery
- Charging interface: TYPE-C and data upgrade interface shared
- Communication interface: Built-in CH340 USB to serial chip, upgraded for external communication through TYPE-C interface
- Size and weight: 120 x 63 x 25mm (excluding antenna joints and antennas), 350g

Unique Bluetooth stereo transmission and reception function:
- Bluetooth reception mode: You can connect your phone to the radio via Bluetooth, and the radio can be used as a Bluetooth speaker. The 40MM long stroke full range speaker provides powerful bass and transparent treble.
- Bluetooth transmission mode: The broadcast received by the radio is transmitted via Bluetooth to Bluetooth earphones or speakers to enjoy HIFI level music.

Menu Description:
- Open menu page: long press the MODE button
- Exit menu page: short press the MODE button
- Select menu content: rotate TUNING knob
- Confirm menu content: short press the TUNING knob
- Declaration: Different versions of the program have different interfaces. Please try operating the menu yourself!

Charging Instructions:
- The radio is charged through the TYPE-C interface, and there is a charging indicator light hole next to the power button. Please use a charging head with a voltage of 5V and a current of 1A or higher to charge the machine. The maximum charging power is 5W and fast charging is not supported. It is recommended to turn off the device for charging. Using a radio for charging may cause interference. The charging indicator light will turn red during charging and turn off after charging is complete.

Firmware Upgrade:
1. Upgrade through TYPE-C port and connect the radio to the computer using the included data cable. A new COM port will appear on the computer.
2. Press and hold the ESP32 BOOT button, then turn on the device to enter upgrade mode.

Flashing Process:
1. Connect the radio to the computer using the TYPE-C data cable. A new serial port number will appear in the device manager. If not, please install the CH430N driver.
2. Press and hold the BOOT button on the radio, then press POWER to power on the radio and enter flashing mode.
3. Download and unzip the firmware, execute the flash.bat flashing script, and enter the corresponding serial port number to start flashing.
4. Wait for the flashing to end and restart the radio.
- Warning: Flashing the device carries risks, and you will be responsible for it yourself! The software version for shipment may vary, and the manual is for reference only!
- Firmware release page http:// github.com/PE5PVB/TEF6686_ESP32/releases

Package Included:
- 1 x Radio
