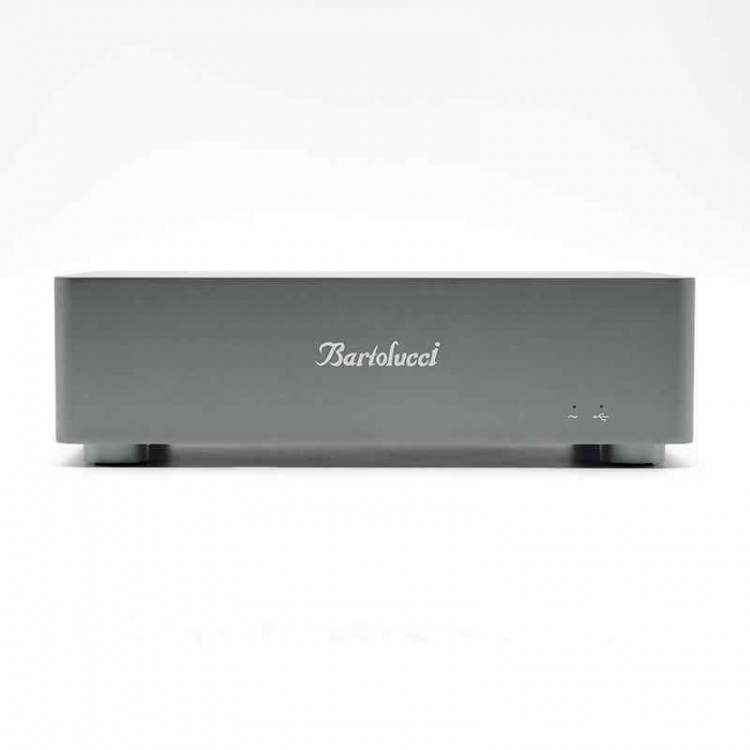

BARTOFUCCI Standard Version AE101 HiFi USB Digital Interface USB to AES/I2S/SPDIF/COAX with High Precision TCXO

BARTOFUCCI Standard Version AE101 HiFi USB Digital Interface USB to AES/I2S/SPDIF/COAX with High Precision TCXO

Differences:
- Advanced Version: for ACCUSILICON ultra-high precision active crystal oscillator; AS338 45.1584MHz and AS338 45.152MHz
- Standard version: low temperature-drift and high precision crystal oscillator; 12MHz, 45.1584MHz and 49.152MHz 0.1% high precision active crystal oscillator.

Features:
- Adopting original imported driver chips for TI: S/PDIF and AES output driver chips; I2S digital output driver chip.
- Adopting a low temperature drift high-precision femtosecond crystal oscillator, the lower clock jitter performance brings better sound quality, and the sensitive mid to low frequency quality of the human ear has been significantly improved, resulting in a resilient sound; At the same time, high frequencies are more refined, delicate, and accurate due to low jitter.
- The circuit board adopts immersion gold technology, which significantly improves the conductivity of the circuit board and reduces internal resistance; Current transmission is more efficient, especially at high frequencies.
- The product adopts a Hi-End level "fully discrete linear power supply solution" design, which realizes independent linear power supply for each chipset and completely eliminates internal power supply interference of the equipment.
- All linear regulator components use original voltage regulator chips for TI, with power ripple suppression as low as 2uV or below.
- The EI square ox transformer is carefully crafted using imported high-quality silicon steel sheets and high-purity oxygen-free copper wire. Unique shock-absorbing adhesive installation method. The measured parameters and performance are significantly better than ordinary toroidal transformers.

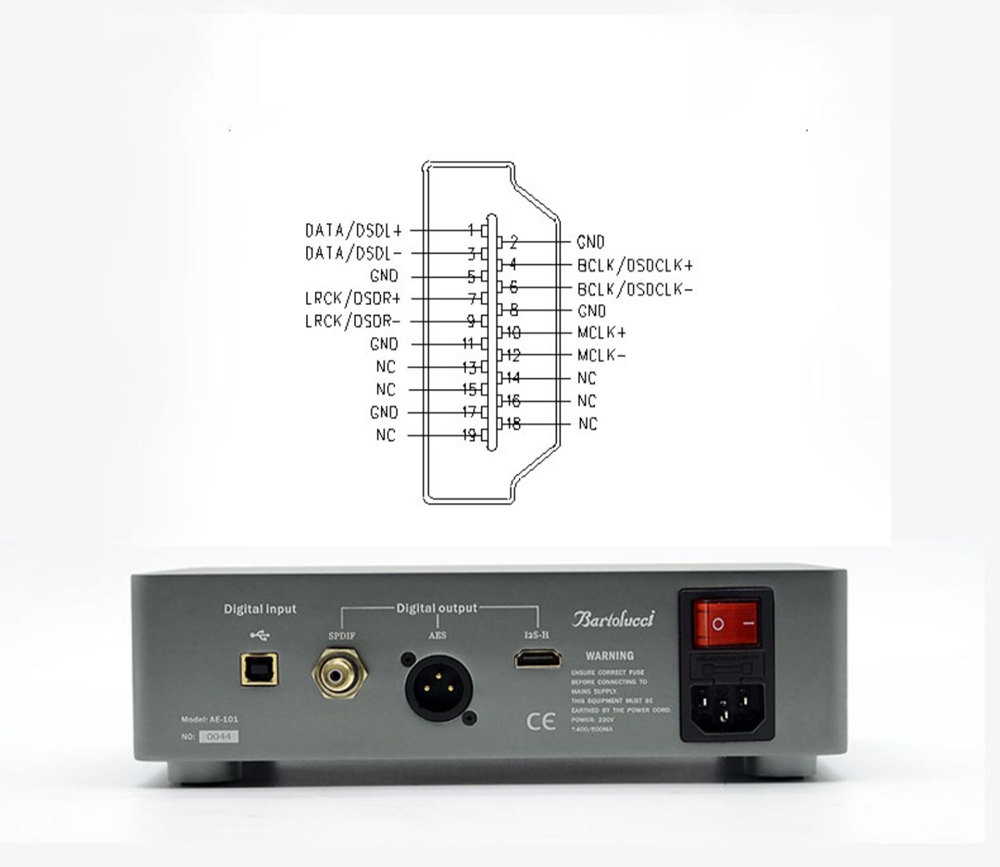

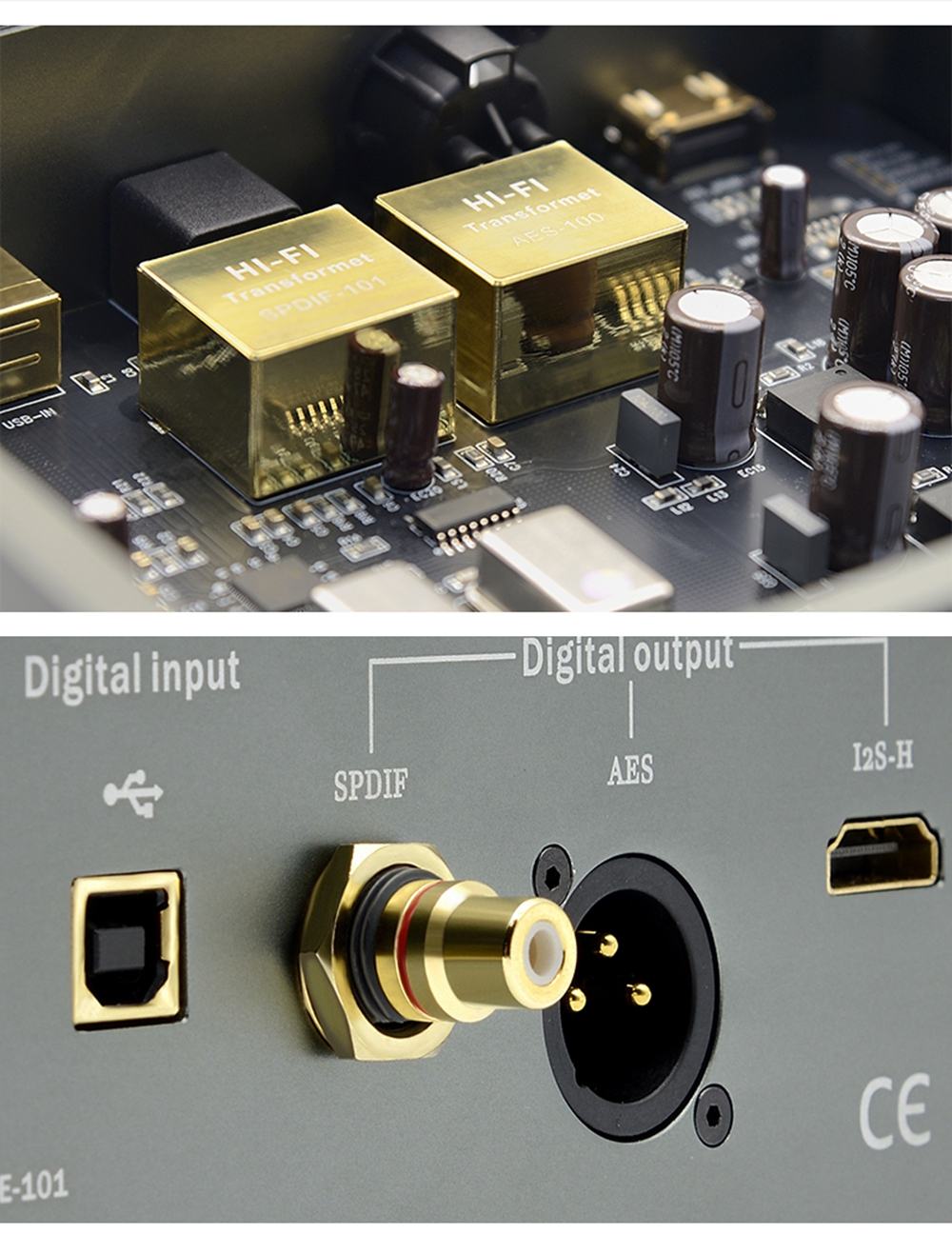

- Rich input and output ports meet the mainstream professional decoding interfaces in the market. USB is the input port, SPDIF, AES, I2S are the output ports; All ports are made of gold-plated material.

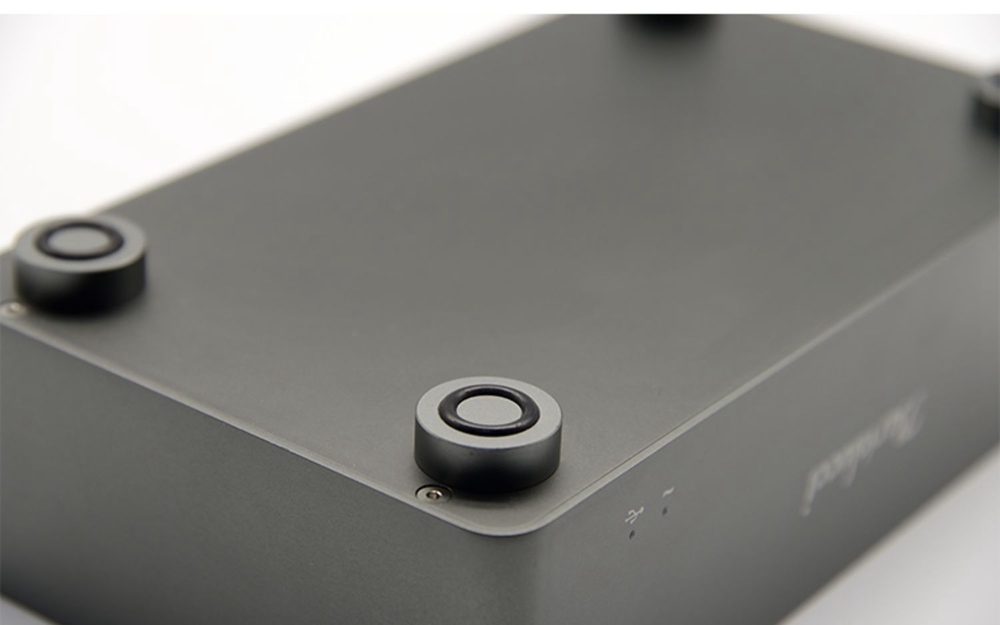

- The body adopts a high cost pure aluminum seamless shell, CNC machined integrated high hardness scratch resistant oxidation coating, and four machine foot pads are made of anti slip silicone foot pads.

Specification:
- Imported high bit-rate digital processing main chip:
  I2S digital output PCM format: supports up to 768KHz 32bit
  I2S digital output DSD format: supports up to 22.4MHz
  S/PDIF output PCM format: supports up to 192KHz 24bit
  AES output PCM format: supports up to 192KHz 24bit
- Product size: 240 x 140 x 70mm

Package Included:
- 1 x USB Digital Interface
