|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$45.07||$44.15||$42.77||$40.93||Contact US|

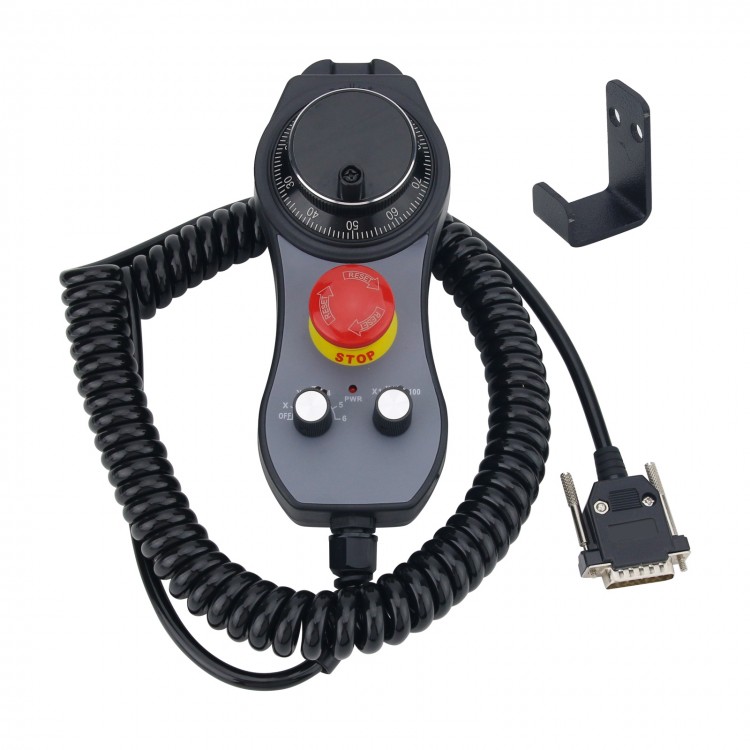

CNC 6-Axis 1 & 100 Pulse MPG CNC Handwheel with Emergency Stop and Self-Reset (Plug for DDCS V41)
- The CNC 6 Axis handheld controller MPG Pendant with x1, x10, x100 selectable, You are bidding one complete unit of the MPG pendant with Emergency stop for 6 axis CNC machine, it equipped with our popular machined MPG unit with 6 axis and scale selector, LED indicator also send feedback from the CNC machine to user about the status of the unit.
- All Wiring isolated from MPG unit and provide a easy to install wiring diagram, it suit both commercial machine as a replacement jog control unit or other computer based controller. Which add great control flexibility to the system.
- Resolution: 100PPR
- Power: 5V
- Current: ≤80mA
- Output voltage:
Output is high level: VCC-2.5V
Output is low level: ≤0.4V
- Axis: X, Y, Z, A, B, C
- Ratio: x1, x10, x100
- Max response frequency: 100KHz
- 1 x CNC Handwheel
