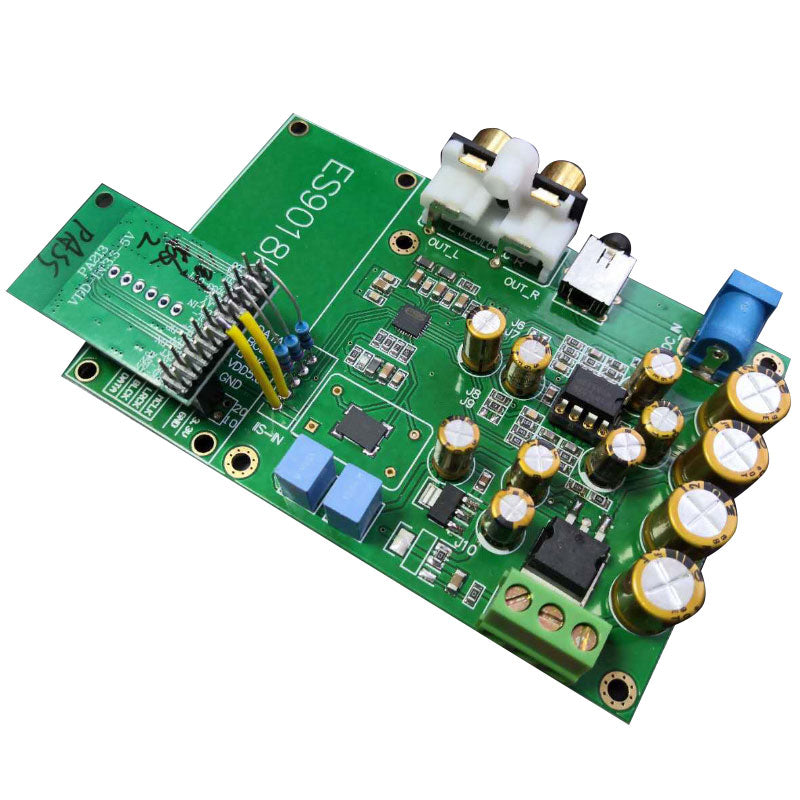

ES9018K2M NE5532 I2S Input Decoder Board DAC Board with 8675 Bluetooth Board 32bit 384k/DSD64 DSD128 DSD256

ES9018K2M NE5532 I2S Input Decoder Board DAC Board with 8675 Bluetooth Board 32bit 384k/DSD64 DSD128 DSD256

Description:
- This board is finished board.，Do not containUSBcard，You can Use XMOS208card，Italian cards(both are compatible)，All boards are welded in batches by patch machine，Quality assurance，Internal core adoption ES9018K2M Core Design，
-  The MCK for es9018 is an independent clock of 100m, so it is very convenient to input data BCK lrck. it is perfect for CD DVD .
- The Board is equipped with ne5532 operational amplifier. To upgrade the operational amplifier, customers can buy the update operational amplifier with fever seperately

Specification:
- Voltag:DC 9-15V（standard DC5.5*2.1Seat）
- PCB size:65*65MM
- Output terminal:RCA+3.5terminal，Can be directly connected to the power amplifier，Ear drop，Headset

Input support:
- I2S/DSD:32bit 384k/DSD64,DSD128,DSD256


Foot position instruction

Plate interface :From left to right:GND,5V output（Reserve power for the back sub-card，For example, our Bluetooth sub-card）,LRCK,BCLK,DATA

 Feature:
1:Perfect seamless interface usage，PCM DSDHandover without defect。
2:AC and DC power supply,Easy to use
3:ES9018K2MPerfect parameters，127dB DNR -120dB THD+N It's not comparable to old chips.。
4:Plate volume 65X65 Convenient installation

Power supply setting (default single power )

DC Single power supply range: DC9-15V
DC Dual power supply Range: +- DC 9~+-15V

Note, O mean connect. X mean disconnect
