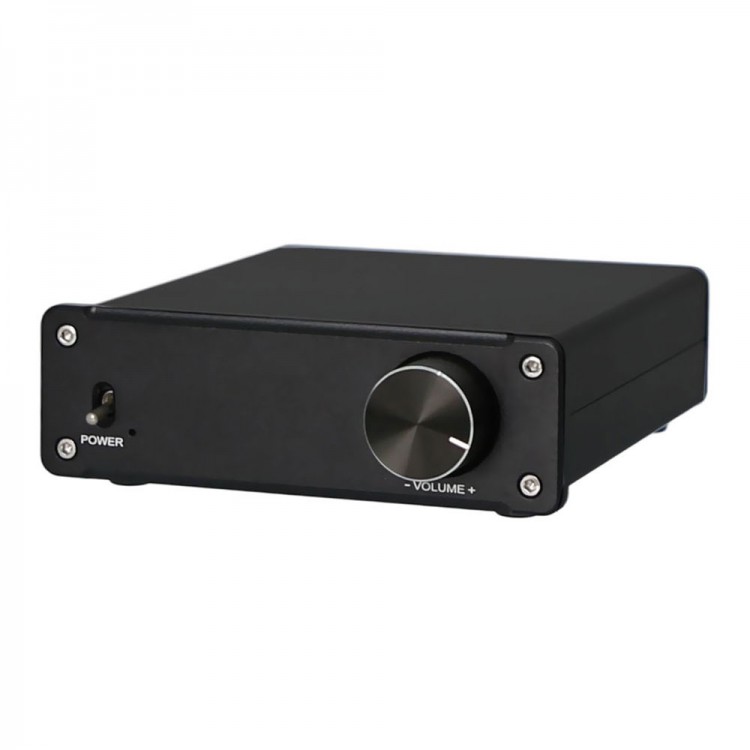

D325E TPA3255 Dual Channel 300Wx2 High Power Digital Power Amplifier Low Distortion Class D Audio Amplifier with Power Adapter
Description:
- Using the TPA3255 digital amplifier chip, the output power can reach up to 300W per channel, and the distortion is very low.
- The appearance design of D325E is simple and elegant, with an aluminum alloy shell that is easy and simple to use as a whole.
Using Instruction:
- The power supply voltage of D325E is DC24V-48V, and the higher the voltage, the greater the power. The voltage cannot exceed 48V, otherwise it will burn out the machine.
- The specifications of the DC power socket are 5.5*2.5, with positive inside and negative outside.
- The D325E output can only be connected to passive speakers and cannot be connected to active speakers or constant voltage speakers.
Specification:
- Model: D325E
- Input: RCA
- Output: small crystal terminal post
- Working voltage: DC24V - 48V
- Standby power consumption: 1W
- Power amplifier chip: TPA3255 x 1
- Output power: 300W x 2 / 4ohms, 150W x 2 / 8ohms
- THD+N: <0.02%
- SNR: 110dB
- Frequency response: 20Hz - 20kHz
- Product size: 166 x 126 x 40mm
- Net weight: 0.6kg
Package Included:
- 1 x Power Amplifier
- 1 x Power Adapter
