D325Max 300Wx2 TPA3255 Retro Mechanical VU Meter Digital Power Amplifier Bluetooth5.1 Built-in ES9038Q2M DAC with Power Adapter
Description:
- D325MAX is a newly designed digital amplifier that uses the TPA3255 digital amplifier chip, with an output power of up to 300W per channel and very low distortion. Design of large machinery VU meter.
- The D325MAX amplifier is equipped with an advanced decoding chip ES9038Q2M, which supports fiber coaxial input. Bluetooth input is also decoded separately through this chip. So the resulting effect will have more details and a larger sound field.

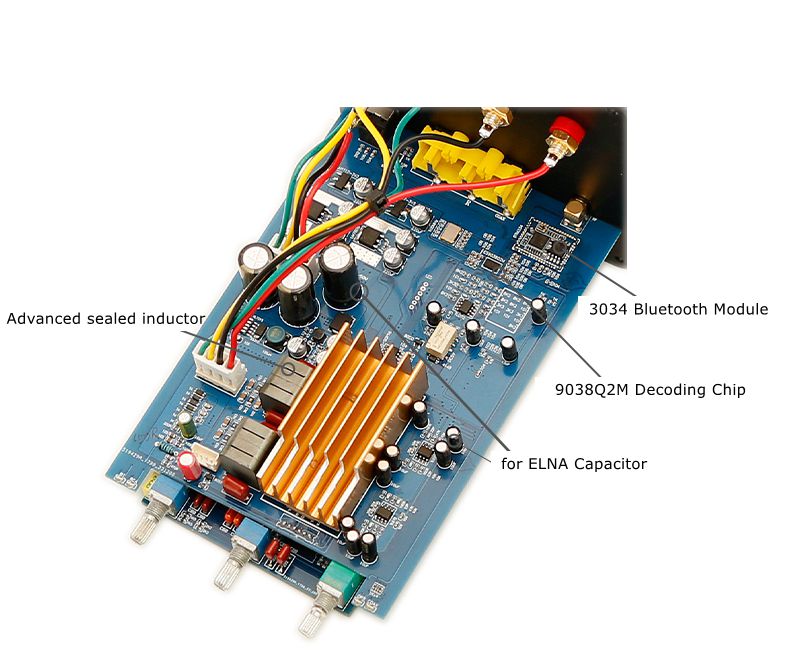

- The power amplifier circuit uses high-power sealed inductors, which have stronger performance than red ring inductors, better low-frequency control, higher power, better high-frequency extension, and are transparent and delicate. Built-in 3034 Bluetooth module, supporting for APTX HD lossless transmission, making the Bluetooth output comparable to CD player input. It is very convenient to use.

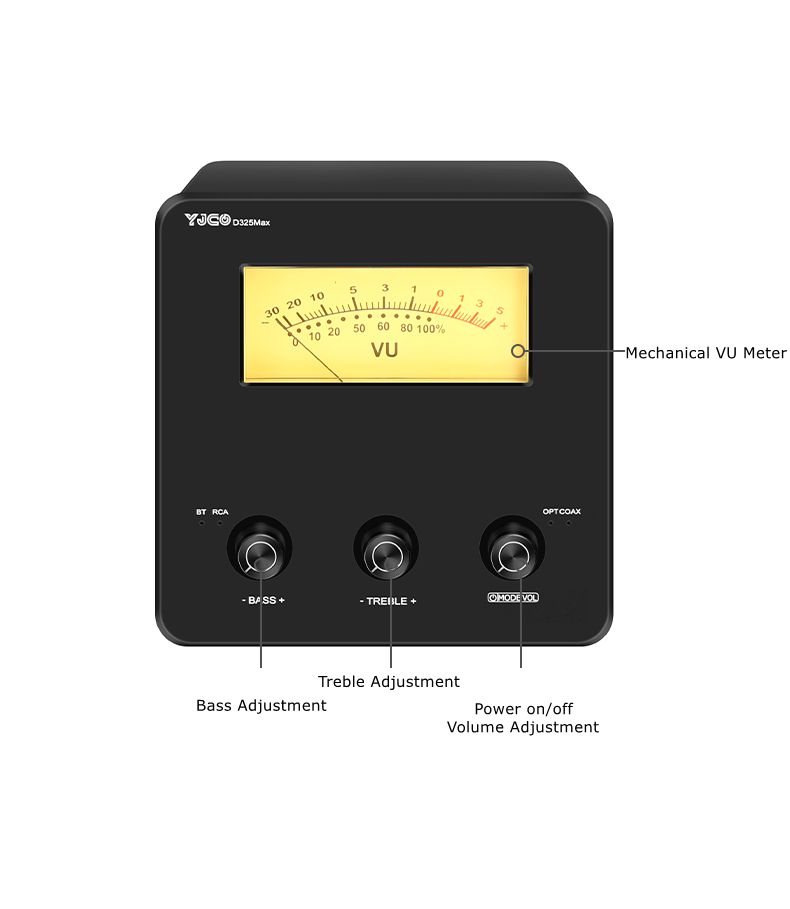

- With tone function, it can adjust treble and bass.
Using Instruction:
- Short press the volume knob to switch inputs, and the corresponding front indicator light will light up. Long press to enter standby mode.
- The Bluetooth name is "YJHIFI", simply connect by searching for the name.
- The power supply voltage of D325MAX is DC24V-48V, and the higher the voltage, the greater the power. The voltage cannot exceed 48V, otherwise it will burn out the machine.
Specification:
- Model: D325MAX

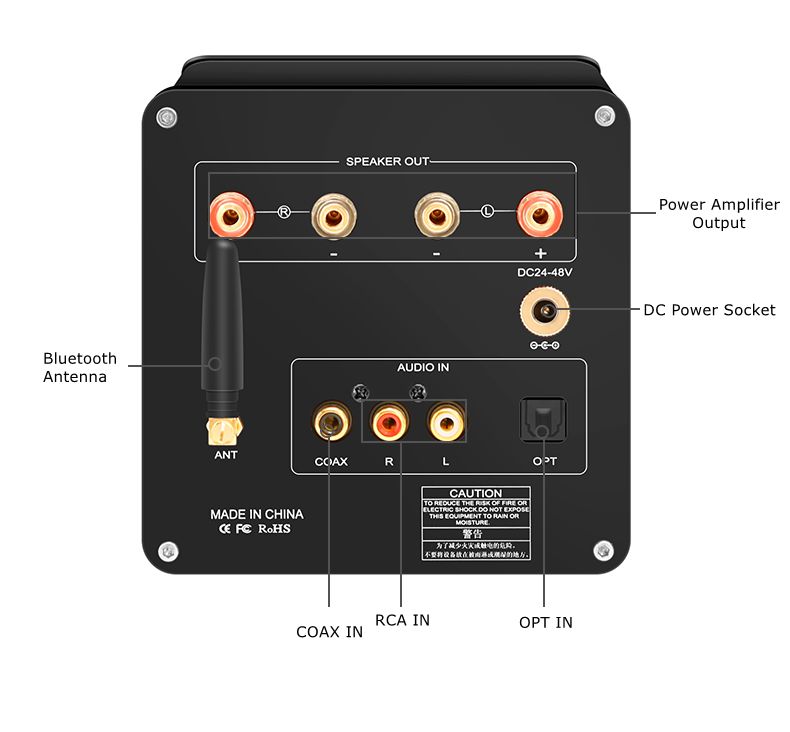

- Input: RCA, COAX, OPT, BLUE
- Output: small crystal terminal post
- Working voltage: DC24V - 48V
- Standby power consumption: 1W
- Decoding chip: ES9038Q2M
- Bluetooth chip: QCC3034
- Bluetooth support: SBC/AAC/APTX/APTX-LL/APTX HD, 16-24Bit, 44.1-48kHz
- Power amplifier chip: TPA3255 x 1
- Output power: 300W x 2/4ohms, 150W x 2/8ohms
- THD+N: <0.02%
- SNR: 110dB
- Frequency response: 20Hz - 20kHz

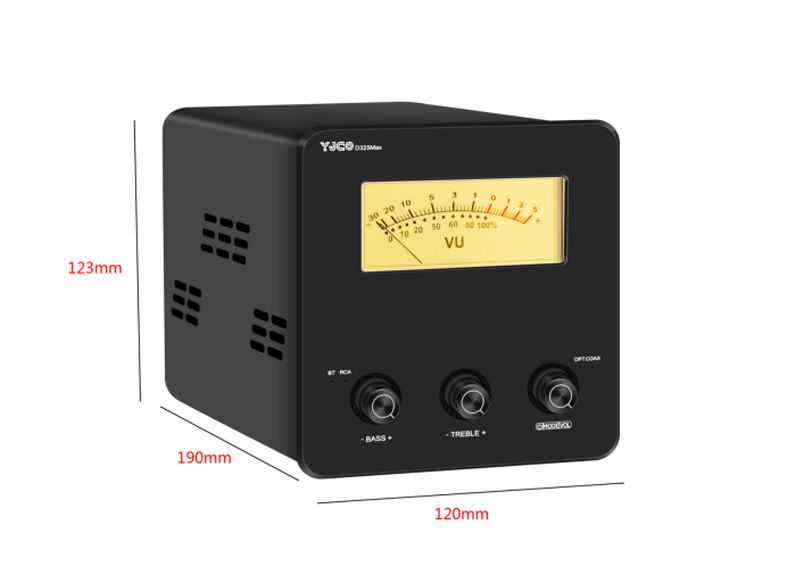

- Product size: 120 x 190 x 123mm
- Net weight: 800g
Package Included:
- 1 x Power Amplifier
- 1 x Power Adapter
- 1 x Bluetooth Antenna
- 1 x User Manual
