SCF-9V Supercapacitor Power Filter with 3A Output Current (Main Unit + 9V Switching Power Supply)

SCF-9V Supercapacitor Power Filter with 3A Output Current (Main Unit + 9V Switching Power Supply)

Description:

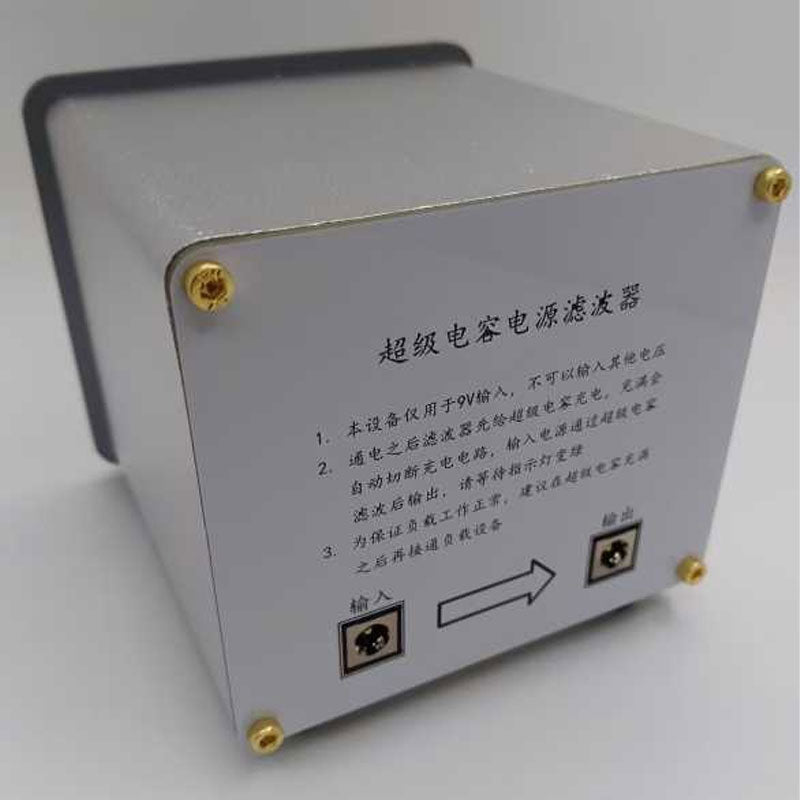

The SCF-9V is a super-capacitor filter specifically designed for 9V DC power supplies. It must not be used in other voltage applications.

The input and output sockets are DC5521, with positive pole inside and negative pole outside. Do not reverse the input and output connections.

The input voltage is 9V, and the current should be 2A or higher. After power is applied, the red light indicates that the super-capacitor is charging, which takes approximately 15 minutes to charge. When fully charged, the indicator light turns green, indicating normal output.

Please charge the filter before connecting a load. The maximum output current of the filter is 3A.

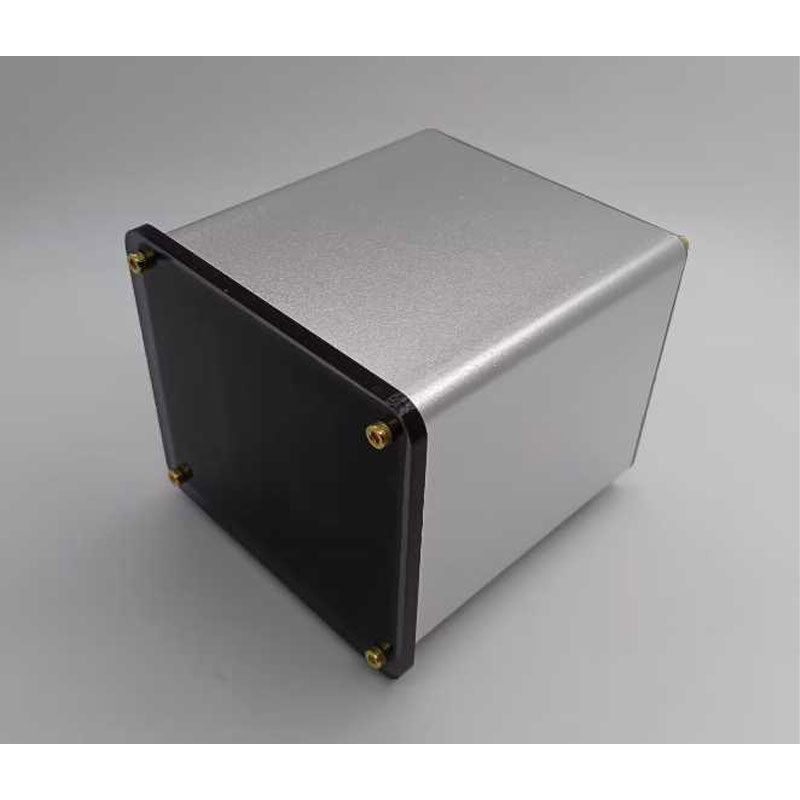

Its dimensions are approximately 12cm x 10cm x 10cm.

Package Included:
- 1 x Supercapacitor Power Filter
- 1 x DC Cable
- 1 x 9V Switching Power Supply

Packaging Details:
- Weight: 0.55kg
