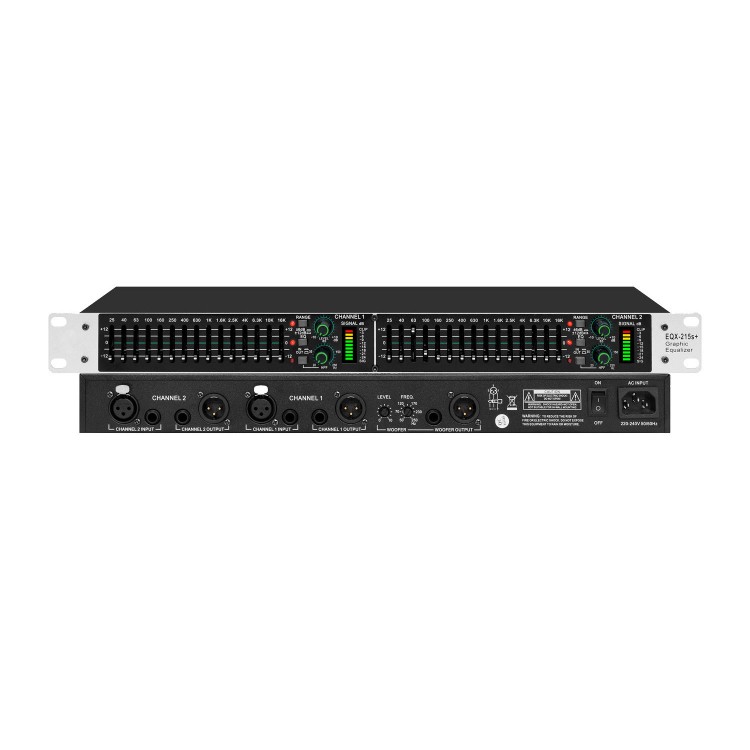

EQX-215+ 20Hz-20KHz 15 Band Equalizer Dual-Channel Graphic Equalizer with XLR and 6.35mm Jacks
Features:
* EQX-215+ is a dual-channel 15-band equalizer.
* Professional equalization adjustment can easily enhance sound quality. Delicate tuning, reducing noise interference, improving sound quality, and delivering high-definition audio output.
* Independent adjustment of treble, mid-range, and bass.
* It features independent subwoofer output. Users can freely adjust the frequency.
* Both main output and input have XLR and 6.35mm jacks. It can connect to effectors, mixers, amplifiers, and subwoofers.
* Supports volume control: -10 to +10 decibels.
* Equipped with independent signal presence and LED peak meters.
Technical Specifications:
* Type: Active balance
* Impedance: 20KΩ
* Maximum level: +23dBu
* Connector: 1/4" phone jack (TRS) and XLR output
* Power supply impedance: 100Ω
* Minimum load impedance: 200Ω
* Frequency response: 31.5Hz-16kHz 0.25dB
* Power: 12W
* Type: Constant Q/Wein bridge
* Bandwidth: 1/3 octave band
* Tolerance: ±3%
* Range: ±12dB (adjustable) at ±6dB
* Subsonic filter: 18dB/0 attenuation at 20-250Hz
* Nominal voltage: 220-240 VAC (50-60Hz)
Package Included:
* 1 x Main unit
* 1 x User manual
* 1 x Power cable
Packaging Details:
* Weight: 3kg
