SK18752 Fever Amplifier Board with Preamp AC 12-22V Power Amp Module Compatible with LM1875 Chip
Precio habitual
$22.37
Precio habitual
Precio de oferta
$22.37
Precio unitario
por
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Precio habitual
$22.37
Precio habitual
Precio de oferta
$22.37
SK18752 Fever Amplifier Board with Preamp AC 12-22V Power Amp Module Compatible with LM1875 Chip
Description:

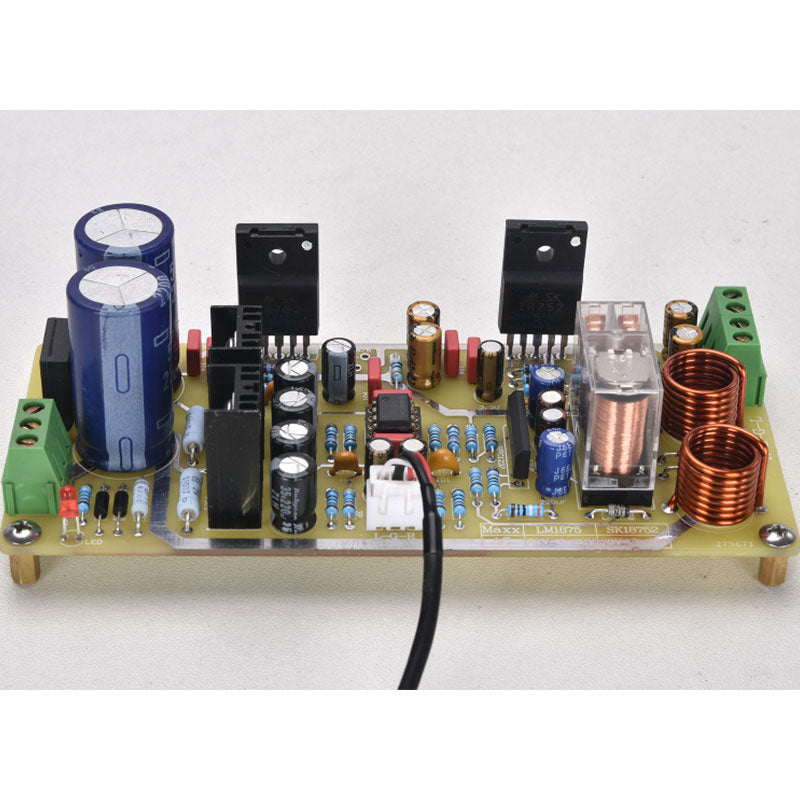

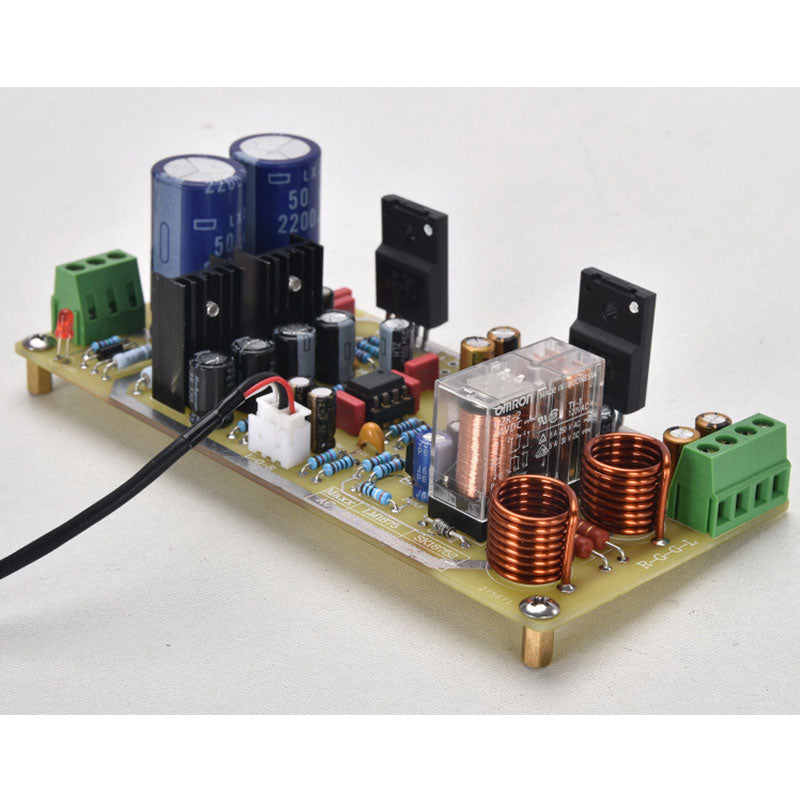

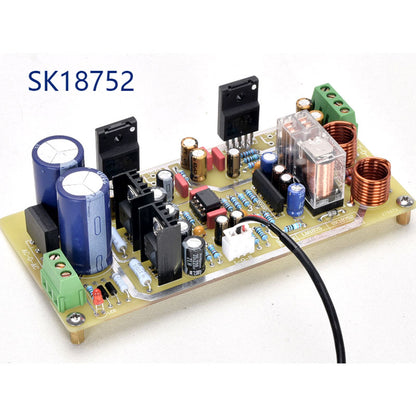

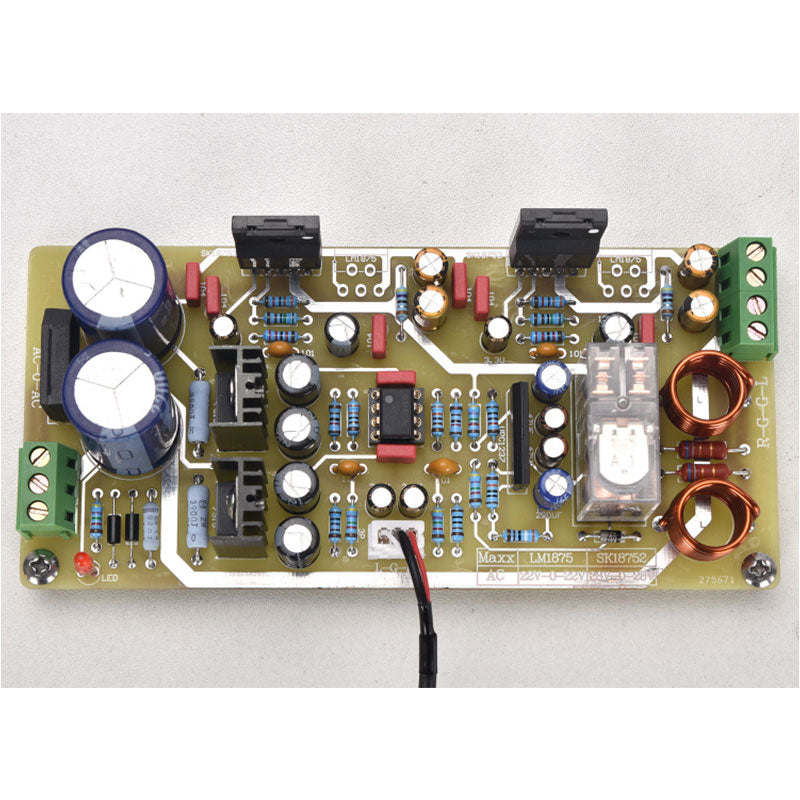

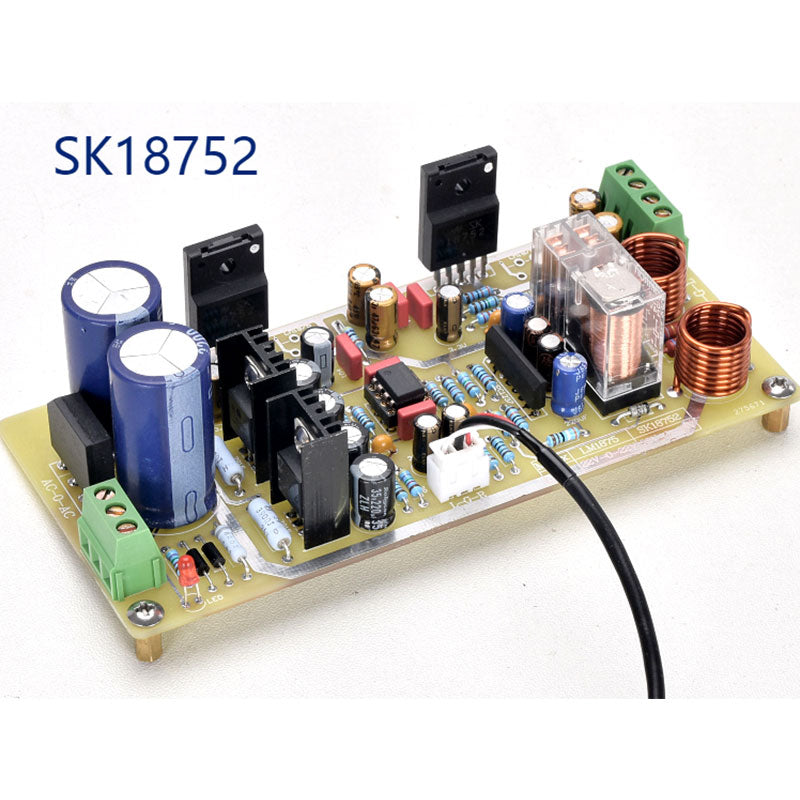

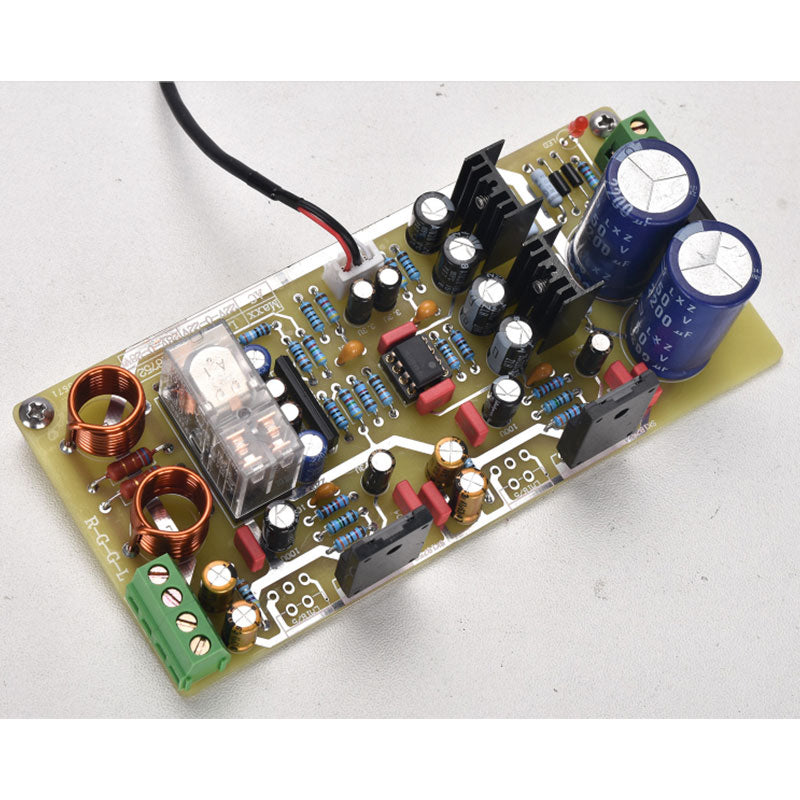

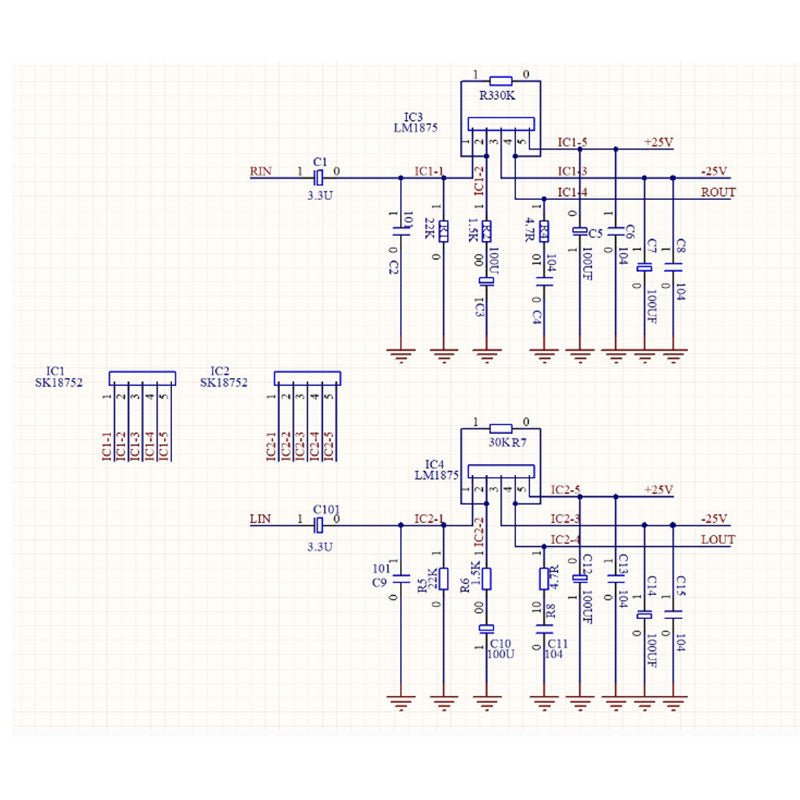

This circuit board refers to the DENON power amplifier board. In addition to using the op amp preamp, the circuit board is compatible with SK18752 and LM1875 chips.
Specifications:
Size: 140 x 62mm
Working Voltage: AC 12-22V (LM1875 version); DC 12-28V (SK18752 version)

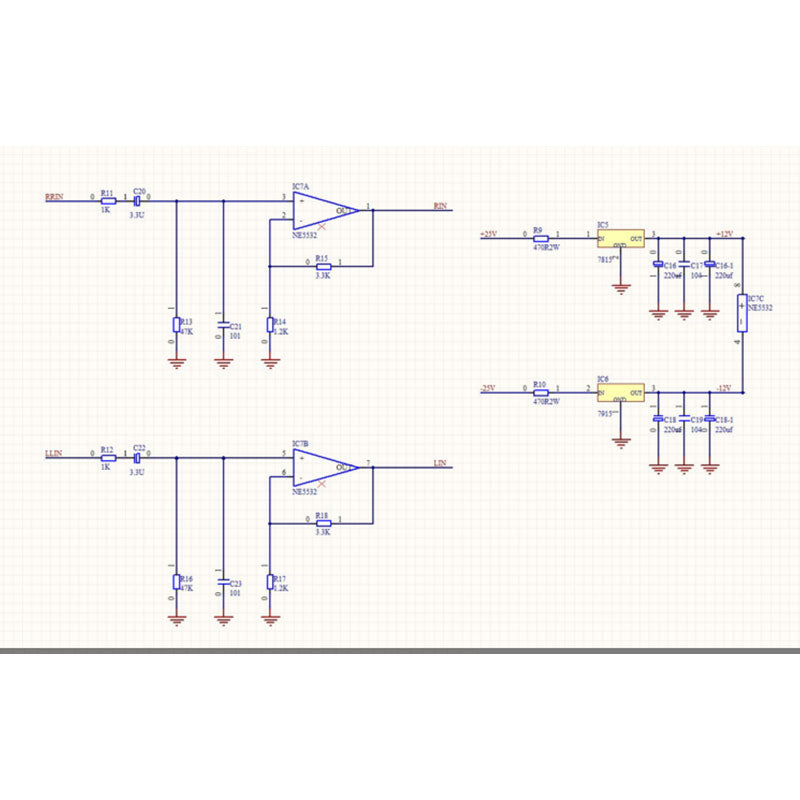

Pre-Stage Amplifier: 5532
Package List:
1 x Amplifier Board
Note:
1. This board is a finished board that has been installed and debugged, without radiator. The main filter capacitor is disassembled from genuine machine.
2. Come with a plug shield wire (length 30cm).
3. Do not provide kit.
