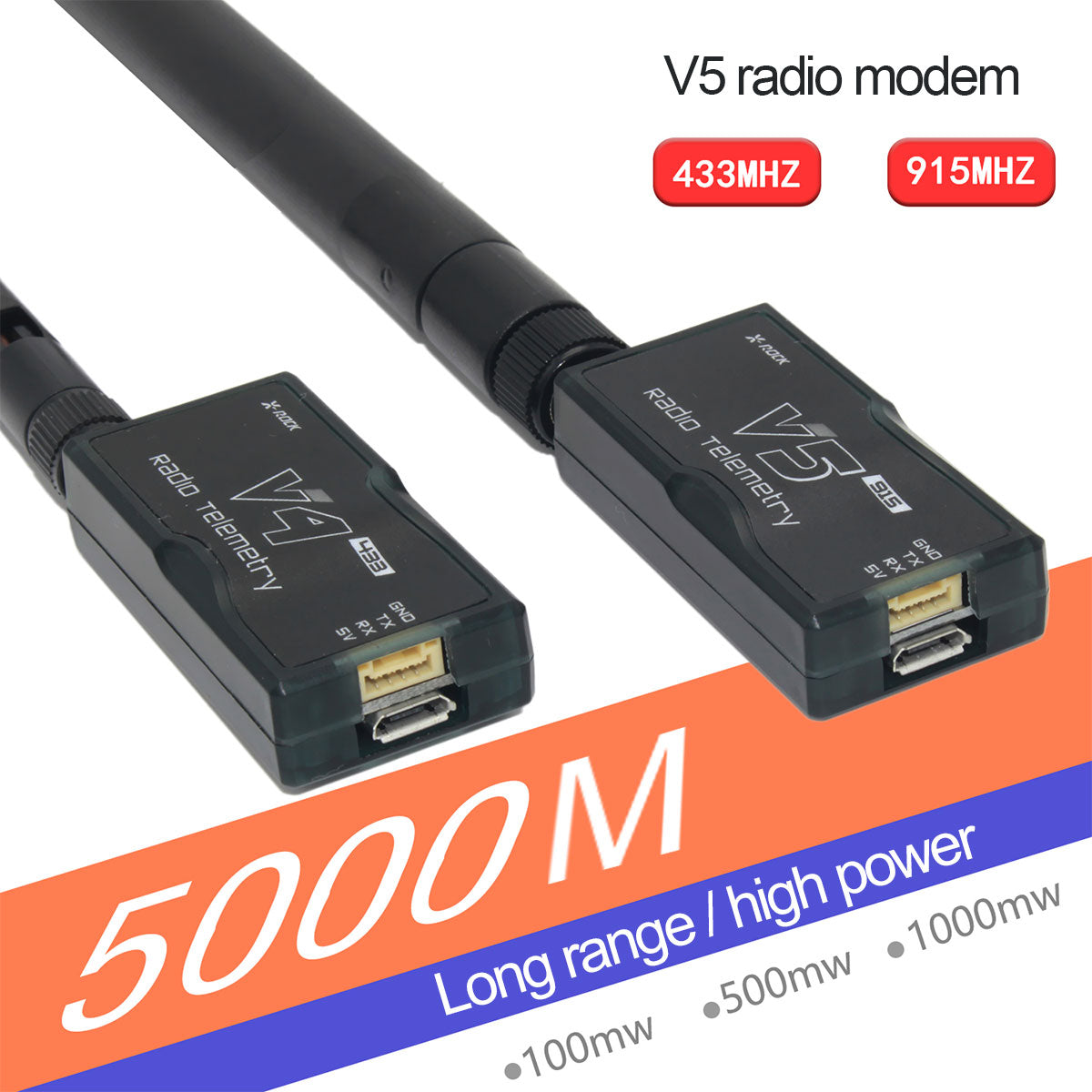

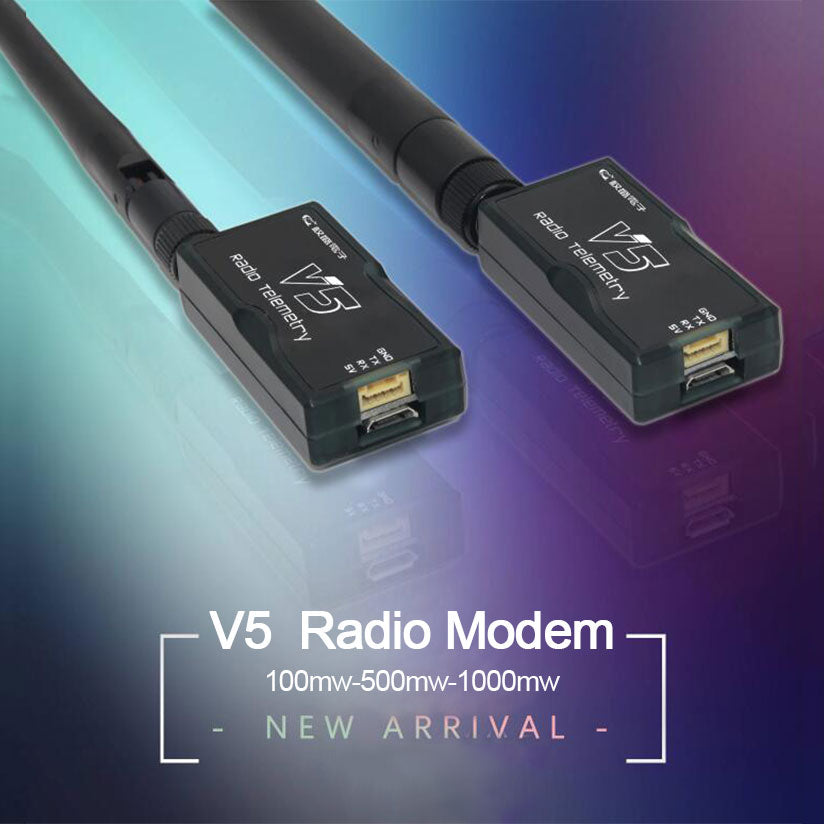

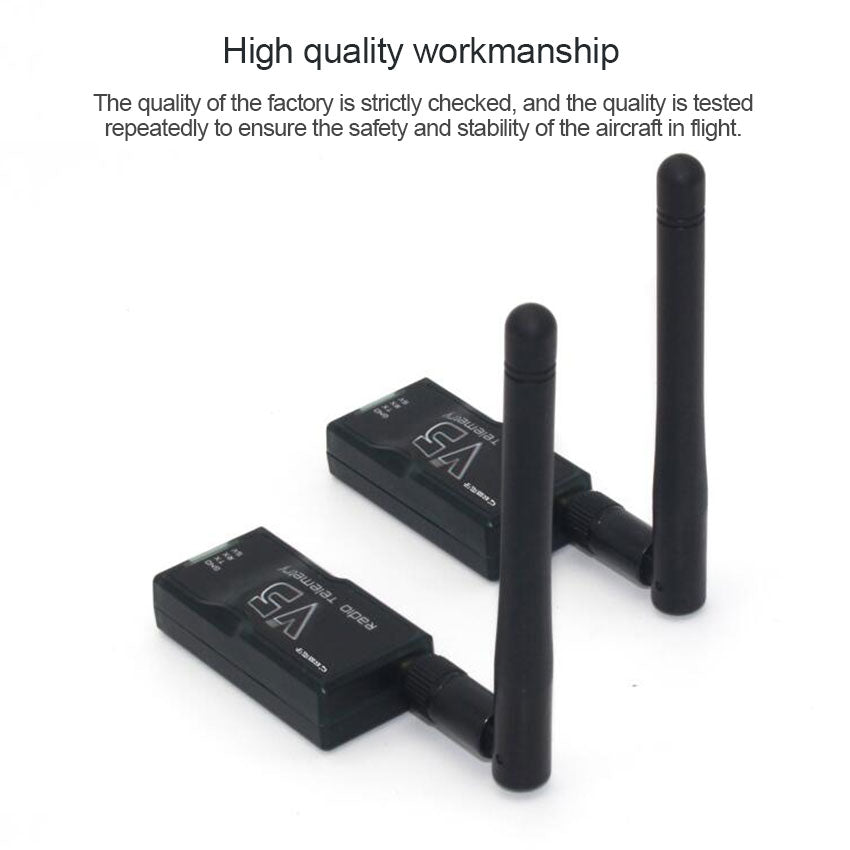

XROCK V5 433Mhz 500mw Radio Telemetry Module Transmitter Receiver for APM2.8 Flight Control UAV Drone

XROCK V5 433Mhz 500mw Radio Telemetry Module Transmitter Receiver for APM2.8 Flight Control UAV Drone

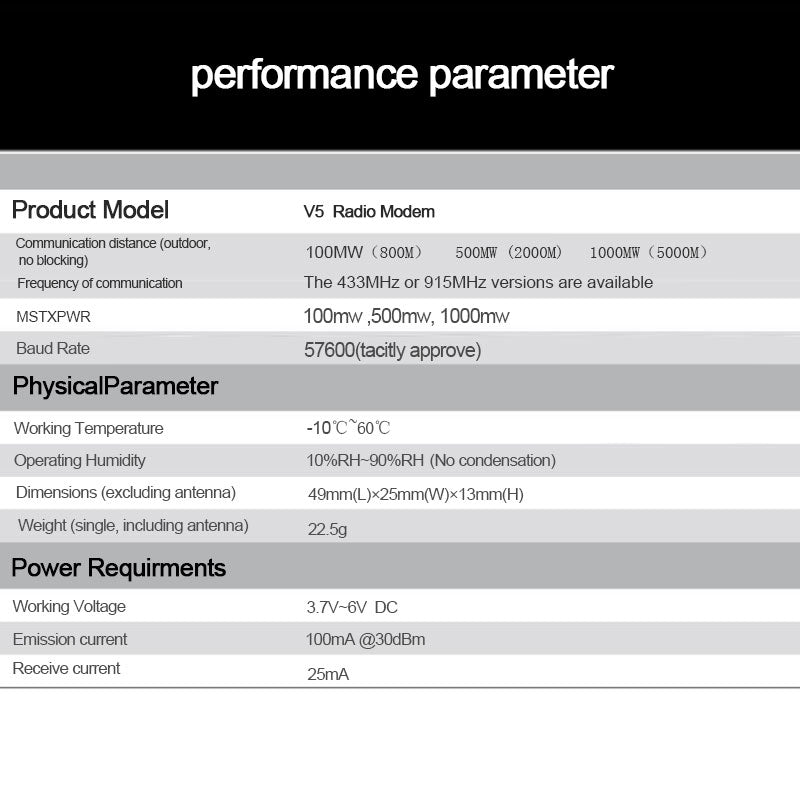

Specifications:
- Transmitter power:500mw
- transmitter range:2000m
- transmitter frequency:433Mhz
- Baud rate:57600 (default)
- Operating Temperature: -10 -60 dgree
- Operating Humidity: 10% RH - 90% RH(non-condensing)
- Dimension (no antenna):
- Ground Module: 63mm(L)×41mm(W)×15mm(H)
- Air Module: 49mm(L)×25mm(W)×13mm(H)
- Weight (with antenna)
- Ground Module: 44g
- Air Module: 22.5g

Power Requirement of Ground Module
- VBAT: 3.7V(LiPo)
- Battery Capacity: 800mAh
- USB Charging Voltage: 4.5~5.5V
- Charging Current: 500mA
- Operating Current: 100mA
- Standby Current: 12mA
- Working Hours: 7h(Full Power )

Power Requirements of Air Module
- Working Voltage: 3.7V~6V DC
- Emission Current: 100mA@30 dBm
- Receiving Current: 25mA
- Pin code:0008

Package included:
-  1 set XROCK V5 433Mhz 500mw Radio Telemetry Module
