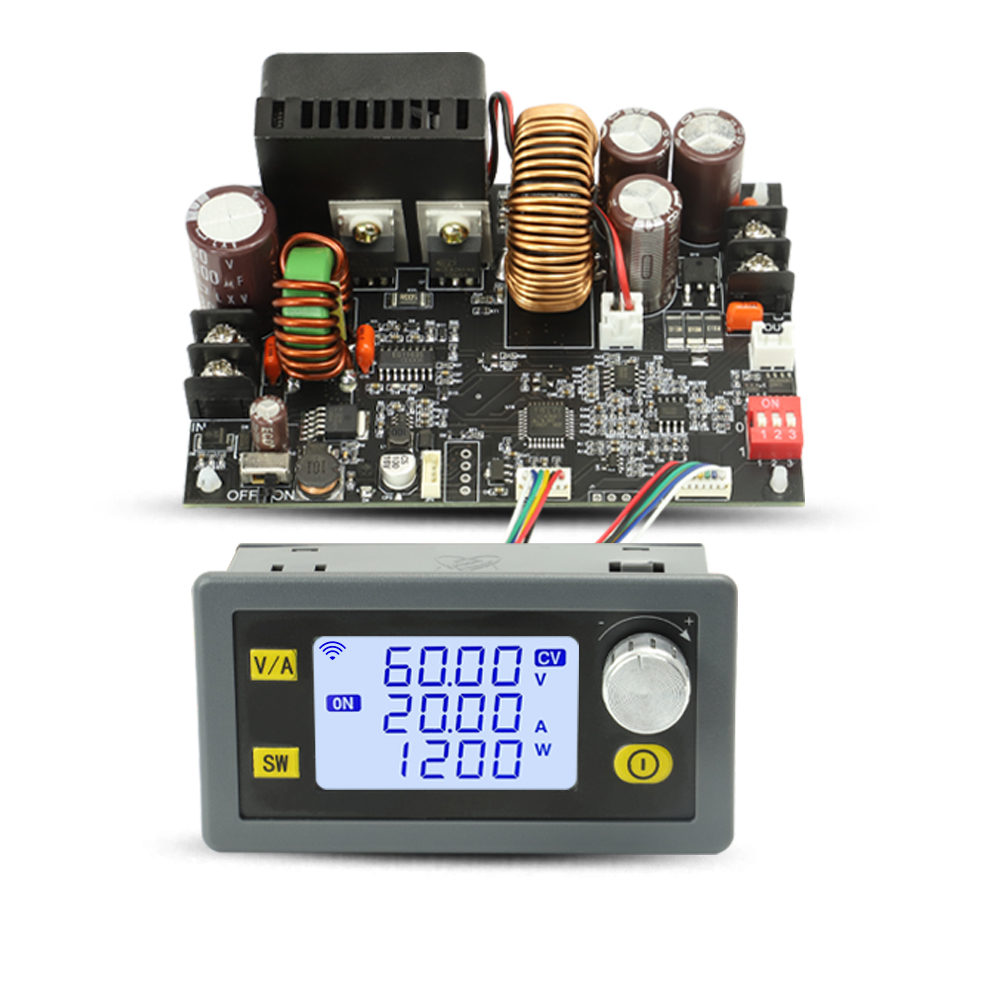

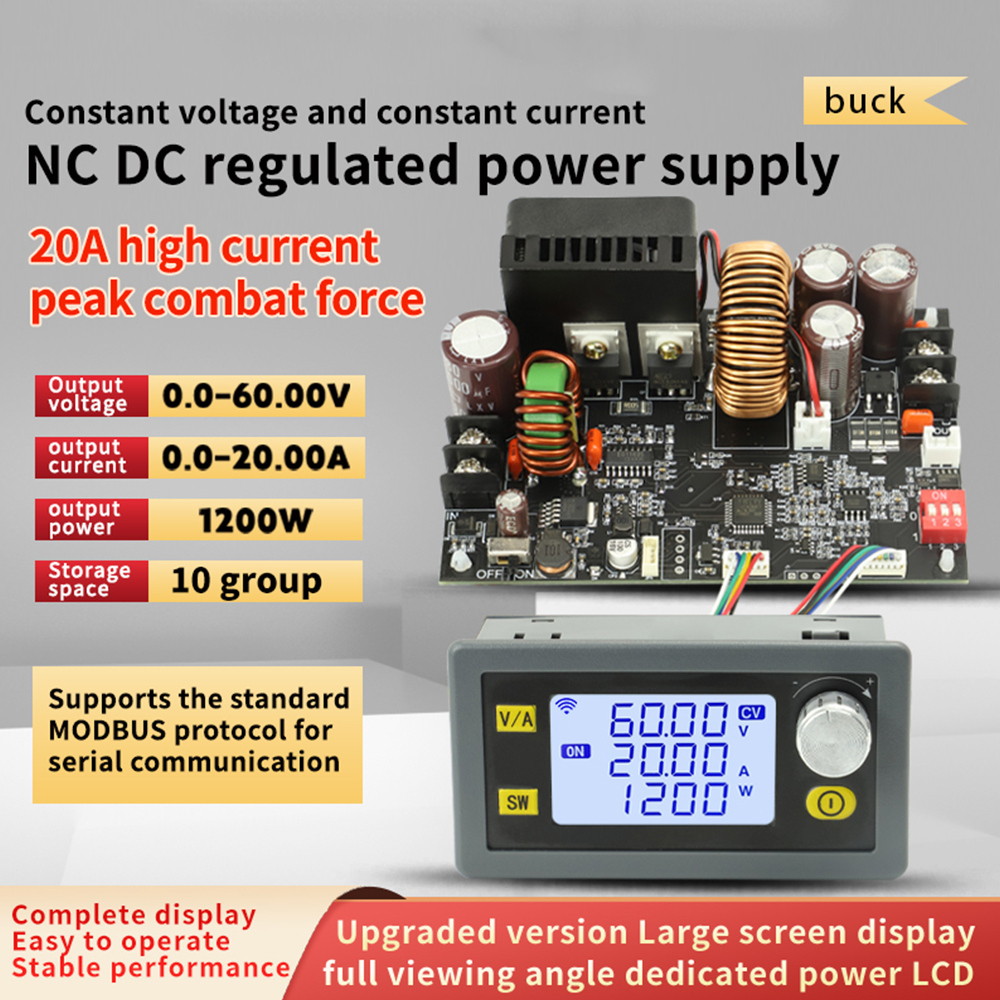

XY6020L CNC Adjustable DC Stabilized Voltage Power Supply Module Constant Voltage and Constant Current 20A/1200W

XY6020L CNC Adjustable DC Stabilized Voltage Power Supply Module Constant Voltage and Constant Current 20A/1200W

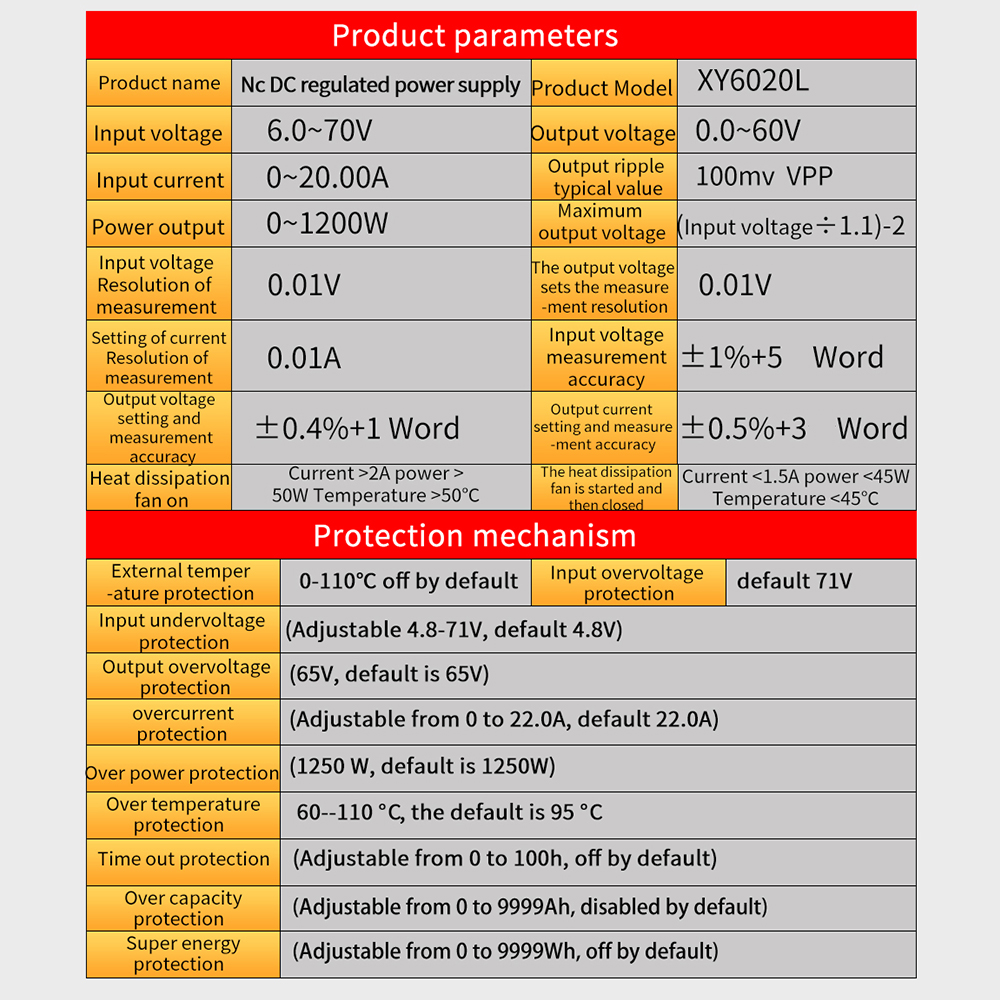

Parameter:
- Product Name: CNC DC stabilized voltage power supply
- Product model: XY6020L
- Input voltage: 6.0~70V
- Output voltage: 0.0~60V
- Output current: 0-20.00A
- Typical value of output ripple: 100mv VPP
- Output power: 0~1200W
- Maximum output voltage: (input voltage÷1.1) - 2
- Input voltage measurement resolution: 0.01V
- Output voltage setting measurement resolution: 0.01V
- Current setting measurement resolution: 0.01A
- Input voltage measurement accuracy: ±1%+5 characters
- Output voltage setting and measurement accuracy: ±0.4%+1 word
- Output current setting and measurement accuracy: ±0.5%+3 words
- Cooling fan on: current>2A, power>50W, temperature>50℃
- Turn off the cooling fan after it is turned on: current<1.5A, power<45W, temperature<45℃

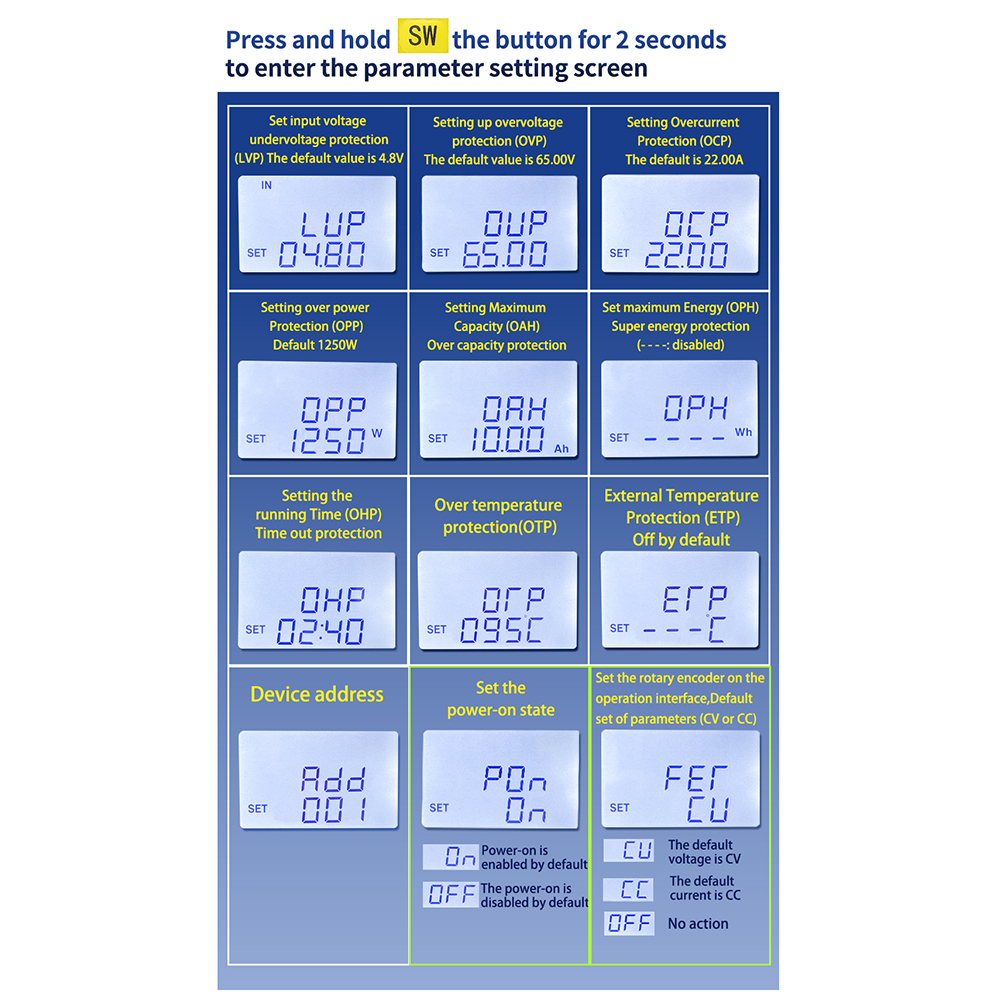

Protection Mechanism:
- External temperature protection: 0-110℃, closed by default
- Input overvoltage protection: 71V default
- Input undervoltage protection: 4.8-71V adjustable default 4.8V
- Output overvoltage protection: 65V, Default: 65V
- Output overcurrent protection: 0-22A, default 22A
- Output over power protection: 1250W, Default: 1250W
- Over temperature protection: 60-110℃, 95℃ by default

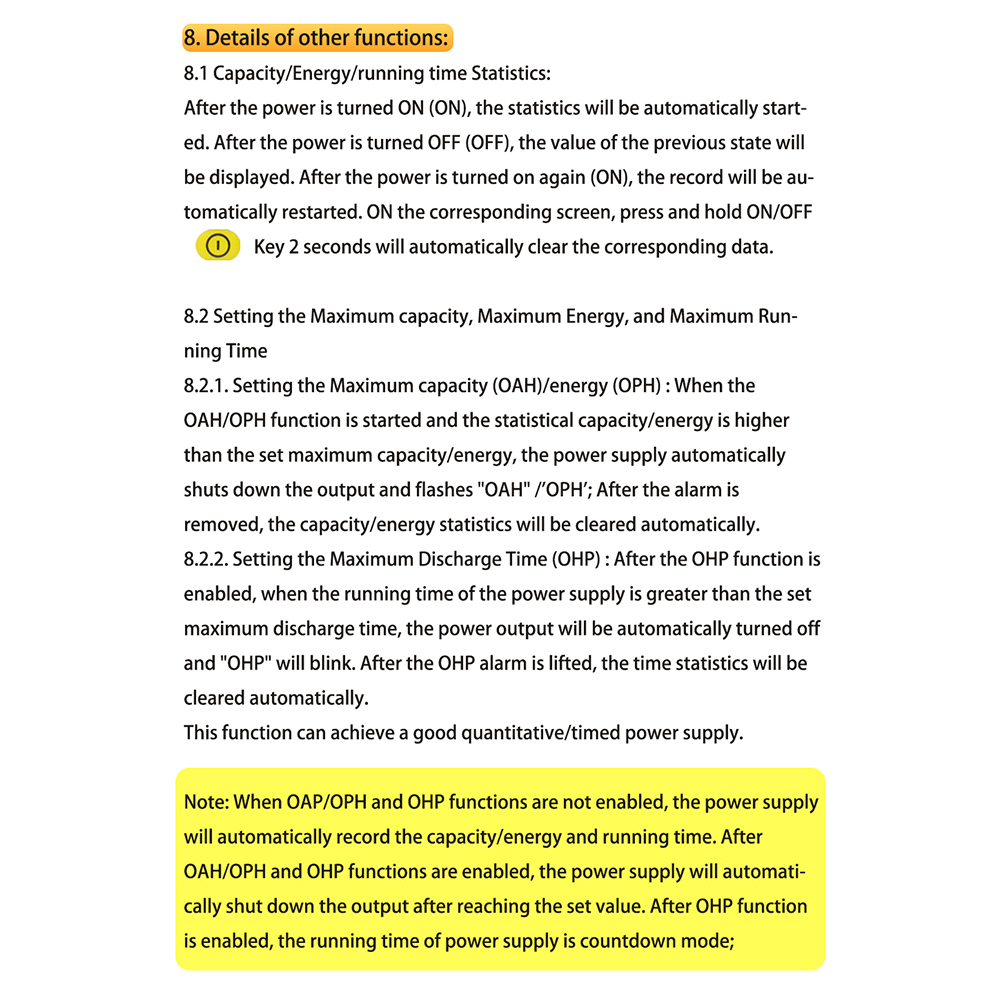

- Timeout protection: 0-100H, adjustable and closed by default
- Overcapacity protection: 0~9999AH is adjustable and closed by default
- Super energy protection: 0~9999WH, adjustable and closed by default

Package Included:
- 1 x XY6020L Kit
