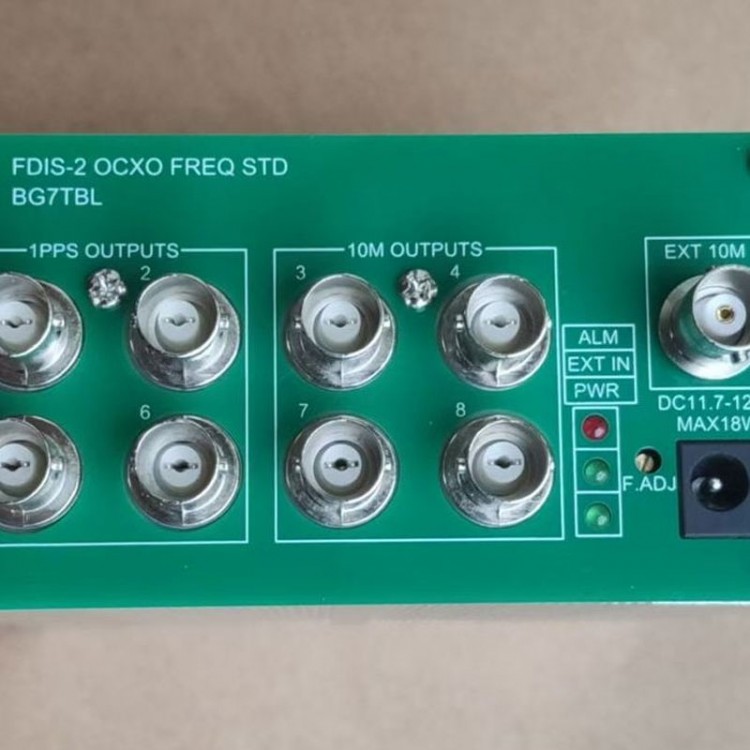

FDIS-2 4-Channel 10MHz 4-Channel 1PPS High Stability OCXO Frequency Standard with BNC Connector (5Vpp Output)
Specification:
- Model: FDIS-2
- Principle: OCXO outputs 10M, and after frequency division, it outputs 1Hz
- Input 1: power interface: DC5521 socket, DC12V/1A, start < 0.85A, stable < 0.45A
- Input 2: external 10M input, BNC/SMA connector, 0.5-5Vpp, square waves, triangular waves, sine waves, etc. are all acceptable
- Output 1: 4-channel 1PPS output, BNC/SMA connector, 0-3.3V/0-5V, square wave, duty cycle of 50%
- Output 2: 4-channel 10M square wave output, BNC/SMA connector, 0-3.3V/0-5V, square wave, duty cycle of 50%
- Precision: 10M precision, adjusted to within 0.03Hz before delivery
- ADEV: better than 0.1mHz/s
- Aging: better than 0.5Hz
- Working temperature: -10℃ to +50℃
- Storage temperature: -20℃ to +75℃
- Product size: 106 x 55 x 120mm
- Net weight: 0.7kg
Package Included:
- 1 x OCXO Frequency Standard
