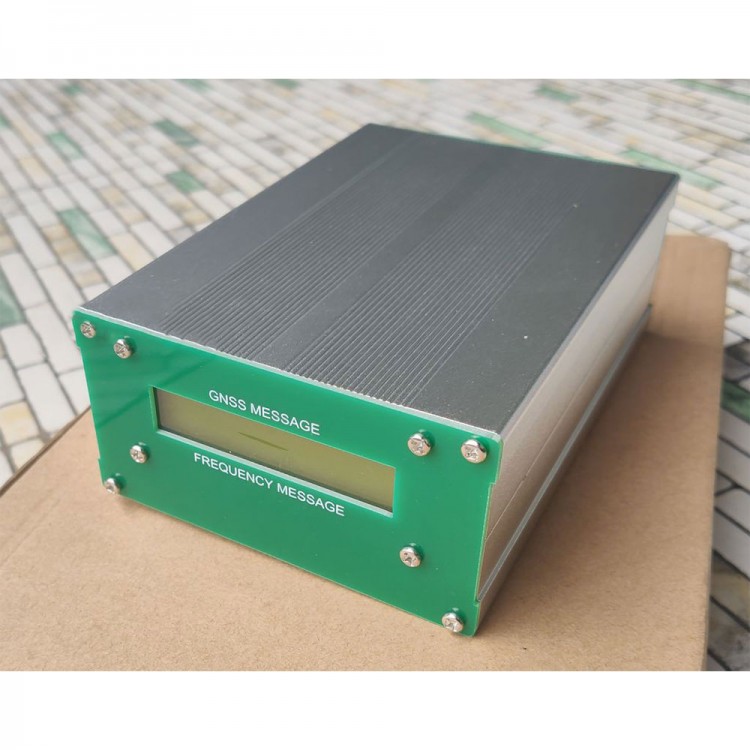

GNSS Disciplined Oscillator GNSSDO 10MHz Frequency Standard (GPS+GAL+GLO+QZSS) w/ Frequency Display
Description:
The LCD-GNSS Disciplined Oscillator is a high-precision timing device and delivers ultra-stable 10MHz and 1PPS outputs, offering performance two orders of magnitude higher than standard OCXO units. It includes RS-232 NMEA output and a real-time LCD display showing signal strength, time, and frequency status.
Specifications:
* Item Name: LCD-GNSS Disciplined Oscillator
* Supported Satellite Systems: GPS + GAL (Galileo) + GLO (GLONASS) + QZSS
* Power Input: DC 11.7–12.9V, ≤15W
* GNSS Antenna Power Supply: DC 5V/50mA
* 1PPS Output Waveform & Amplitude: Square wave, 3.3Vpp
* 10MHz Output Waveform & Amplitude: Sine wave, 1Vrms (10–15dBm), square wave, 3.3/4.7Vpp
* RS232 Output: GNSS NMEA signal
* Display Information: Current satellite signal strength, current time, current frequency (multiple display formats)
* Accuracy: Two orders of magnitude higher than OCXO
* Dimensions (W × H × D): 107mm × 55mm × 172mm (including front connectors)
* Net Weight: 1kg (including power adapter and antenna)
Packing List:
* 1 × GNSSDO
* 1 × AC 110-220V to DC 12V power adapter
* 1 × 5-meter GPS antenna
Packaging Details:
* Weight: 1.07kg
