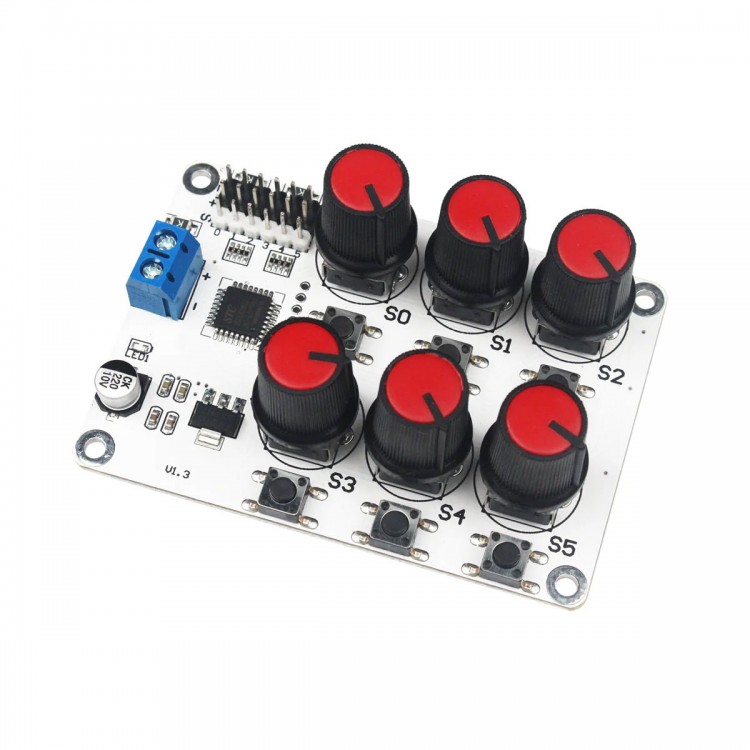

Hiwonder 6-Channel Servo Controller Board w/ Knobs & Over-Current Protection for Robot & Robotic Arm
Description:
The 6-Channel Knob Servo Controller Board features 6 onboard PWM digital servo interfaces and uses high-precision potentiometers to enable functions such as synchronous servo control and servo center reset. It also includes 3 channels of over-current protection to prevent damage from excessive current, making it ideal for testing various servos and for robot development.
Features:

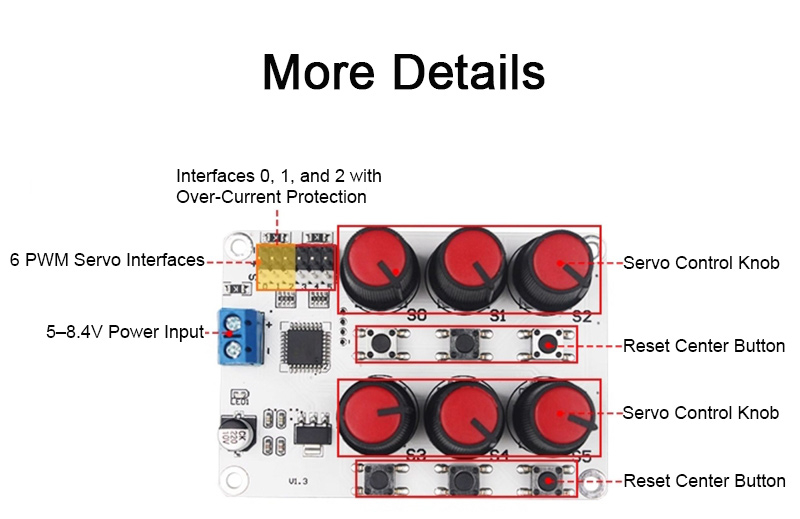

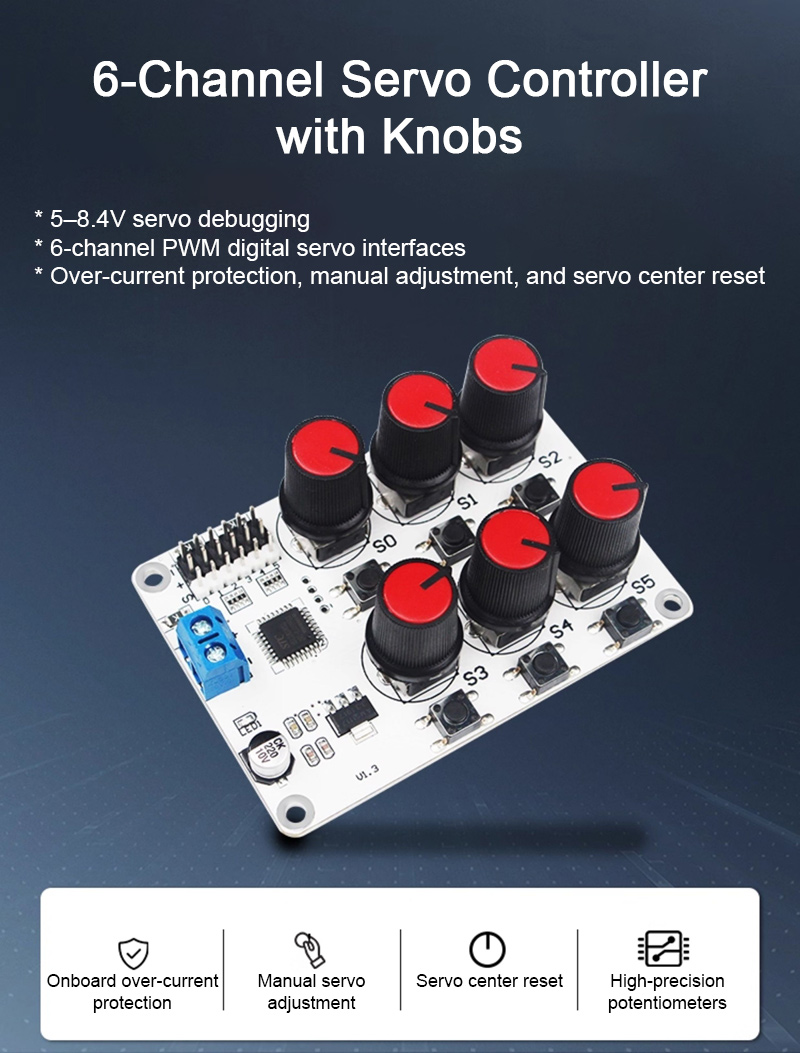

6-Channel Servo Controller with Knobs
* 5–8.4V servo debugging
* 6-channel PWM digital servo interfaces
* Over-current protection, manual adjustment, and servo center reset
* High-precision potentiometers

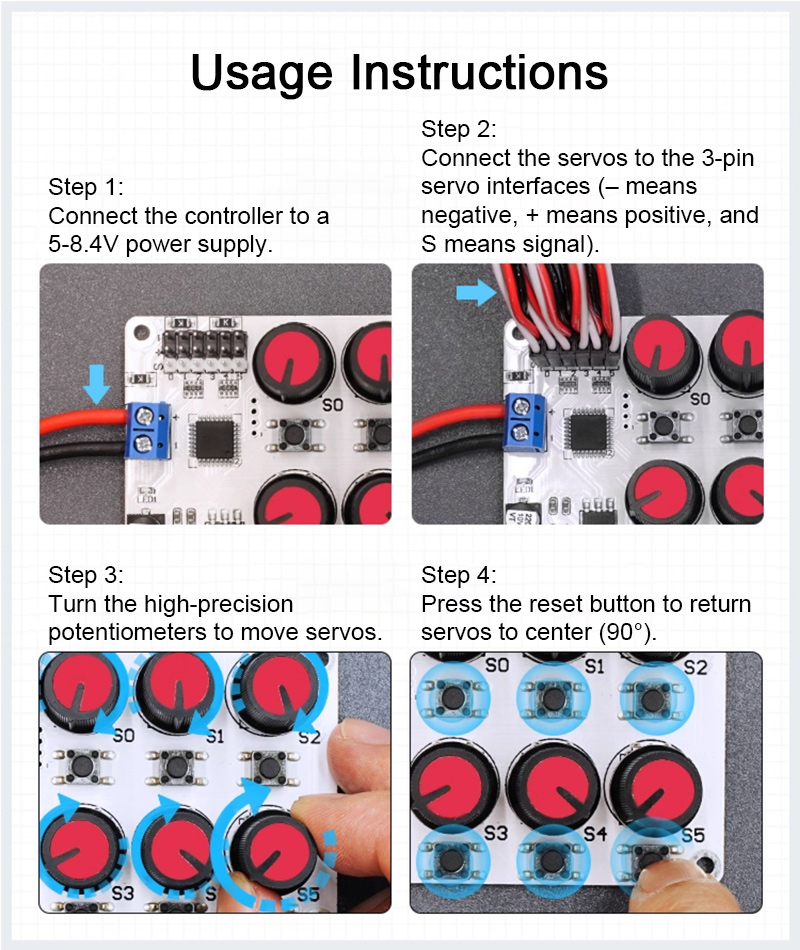

Two Control Modes
* Manual Servo Control: The angles of 6 servos can be controlled in real time via high-precision potentiometers.
* Servo Quick Center Reset: Pressing the reset button returns the angles of 6 servos to 90°.

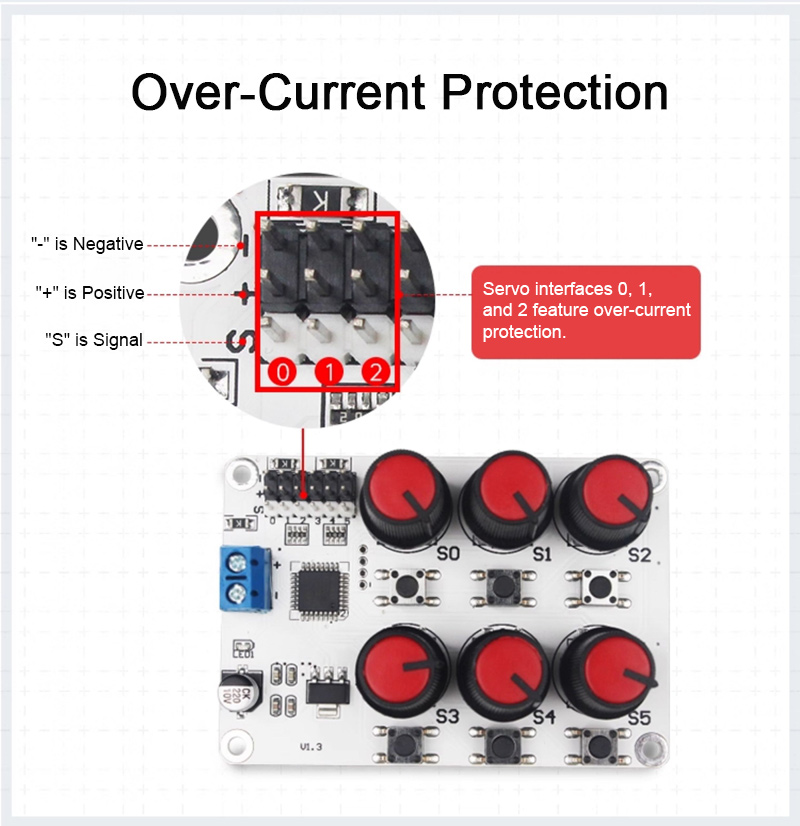

Over-Current Protection
* Servo interfaces 0, 1, and 2 feature over-current protection.

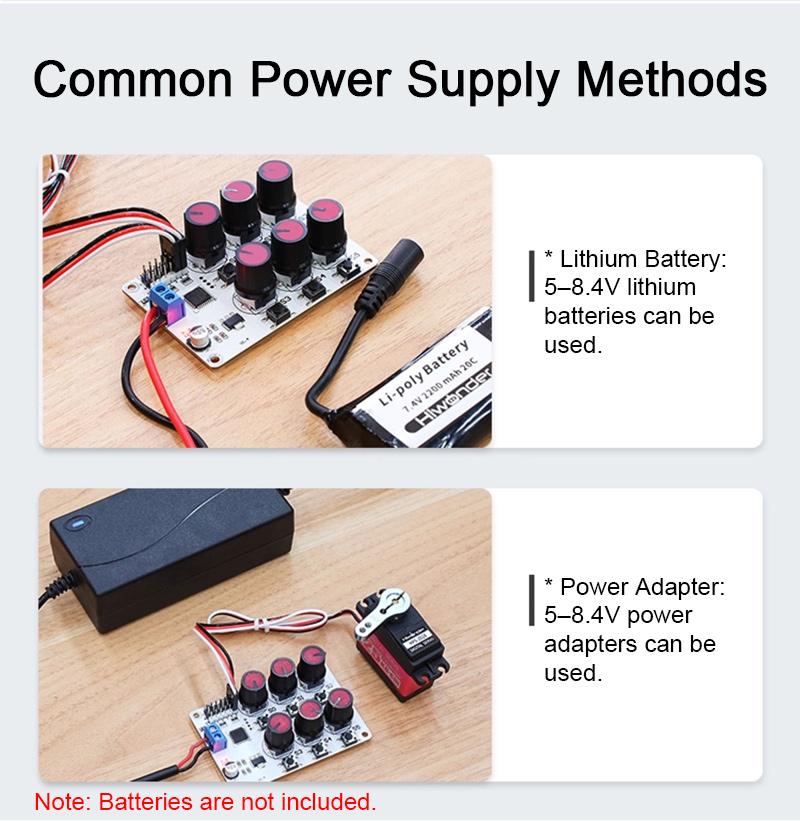

Common Power Supply Methods
* Lithium Battery: Supports 5–8.4V lithium batteries.
* Power Adapter: Supports 5–8.4V power adapters.
Supports Multiple Servos
* Compatible with the full range of Hiwonder PWM digital servos, as well as other PWM digital servos of the same type on the market.
Specifications & Advantages:
1. High-Precision Potentiometers: Can Control Servos in Real Time.
2. Onboard 3-Channel Over-Current Protection Interfaces (0, 1, 2) Can Prevent Servos from Being Damaged by Excessive Current.
3. High-Resolution PWM Signal and Built-in 8-bit MCU Can Make Control More Accurate.
4. Supports Manual Servo Control / Servo Center Reset, Switchable via Function Buttons.
5. Servo Controller Accuracy: 0.09° (Minimum PWM Change Value 1µs).
6. Compatible with Lithium Battery / Power Adapter (5–8.4V).
7. Onboard 6-Channel PWM Digital Servo Interfaces Can Be Controlled via High-Precision Potentiometers.

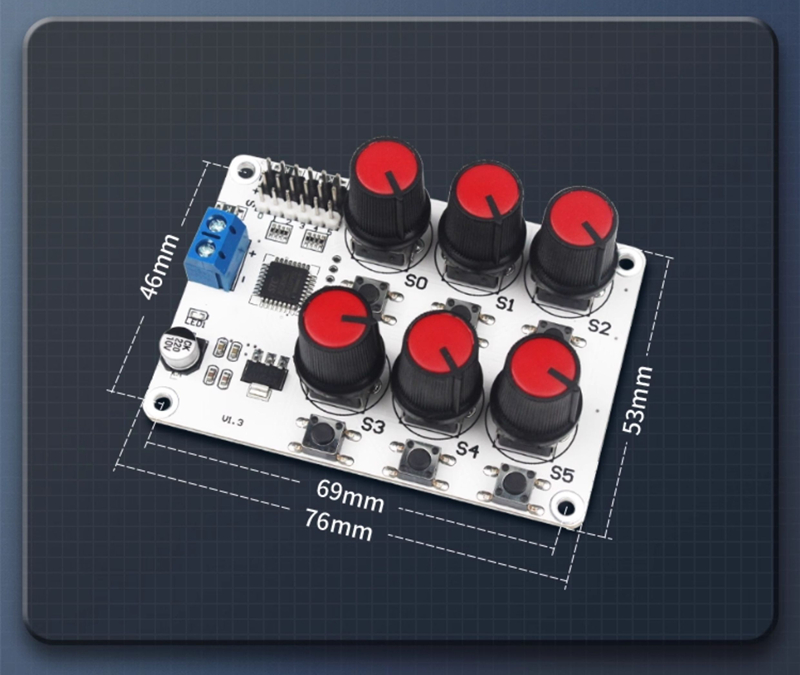

8. Controller Board Size: 76mm × 53mm, Weight: 37g.
Packing List:
* 1 × Servo Controller
Packaging Details:
* Weight: 0.15kg
Note:
* Batteries are not included.
