Hiwonder 6CH Bluetooth Servo Controller Bluetooth 4.0 for Robotic Arm, Biped Robot & PS2 Controller

Hiwonder 6CH Bluetooth Servo Controller Bluetooth 4.0 for Robotic Arm, Biped Robot & PS2 Controller

Warm Tips:
* Provides PC software to control servo movement and edit action groups.
* Offers abundant resources and examples.
* Includes secondary development communication examples for Ar-duino, 51, STM32, Raspberry Pi, and Jetson Nano.
* Built-in Bluetooth 4.0 supports connection to external controller for PS2.

Advantages:
* 6-Channel Over-Current Protection
* Built-in Bluetooth Module
* Supports Secondary Development
* Supports Mobile APP
* Supports Wireless Debugging
* For PS2 Controller
* Supports MP3 Module
* PC Graphical Programming
* Can Store 100,000+ Actions
* Low Voltage Alarm
* Independent Switch
* Convenient Wiring
* Provides Secondary Development Examples
* Provides Technical Support

Description:
The 6-Channel Bluetooth Servo Controller Board uses a high-performance 32-bit chip with a Cortex-M3 core for ARM, enabling high-precision servo control with adjustable speed. It features built-in Bluetooth 4.0 and includes controller, USB, and TTL serial communication interfaces, supporting multiple control methods. Additionally, it has 6 channels of over-current protection, greatly reducing the risk of servo stall damage. We provide PC graphical programming software, allowing you to debug servo angles and other parameters online, making development and expansion convenient and helping you easily realize various robotic projects.

Features:

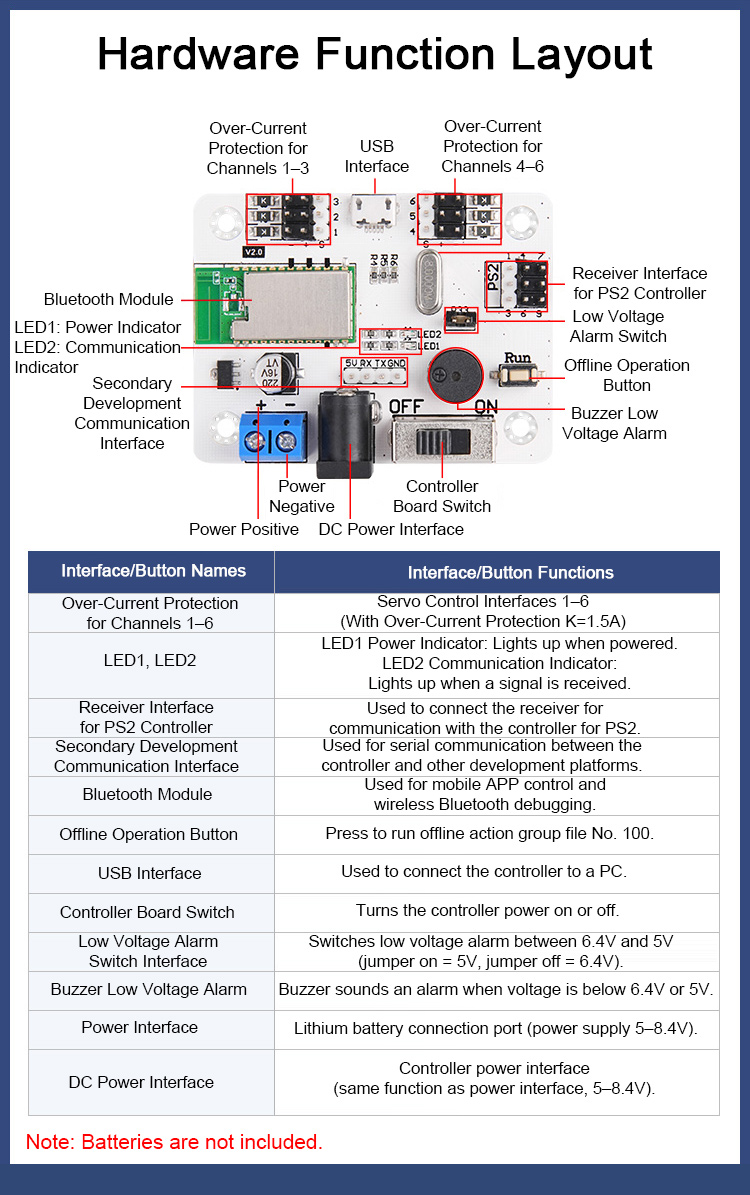

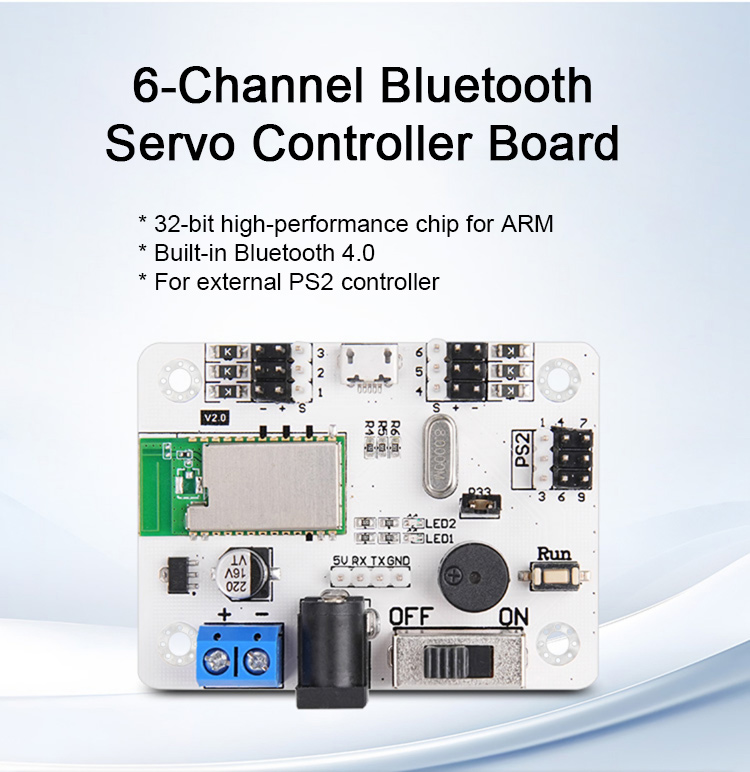

6-Channel Bluetooth Servo Controller Board
* 32-bit high-performance chip for ARM
* Built-in Bluetooth 4.0
* For external PS2 controller

Five Control Methods

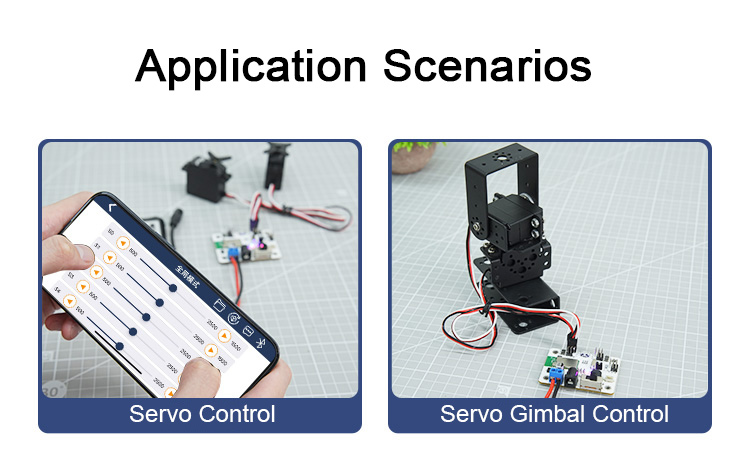

* Mobile APP Control: With the onboard Bluetooth module, you can pair with our mobile APP to remotely control servo movements. Supports both global control and single-point control.
* PC Wireless Control: Using the onboard Bluetooth module interface, optional wireless modules allow wireless debugging, freeing you from USB cable restrictions and making debugging more convenient.
* Control via the Controller for PS2: The onboard receiver interface works with our controller for PS2, directly plug-in on the control board, with a control range of about 10 meters.
* Offline Control: Quickly set servo angles without using the PC software to achieve fast programming.
* Serial Communication Control: The onboard serial communication interface supports secondary development and expansion control, communication examples provided.

32-Bit High-Performance Chip for ARM
* CPU uses a 32-bit high-performance Cortex-M3 core chip for ARM, enabling high-precision servo control with adjustable speed.

6-Channel Over-Current Protection
* The onboard 6 PWM digital servo interfaces feature overload protection, greatly reducing the risk of servo stall damage.

Built-in Bluetooth 4.0
* Onboard Bluetooth module allows control via mobile APP or motion-sensing gloves. The APP supports two modes: single-servo mode and action group mode.

For PS2 Wireless Controller
* Onboard receiver interface works with our controller for PS2, directly plug-in on the control board, with a control distance of about 10 meters.

Supports Offline Control
* Onboard offline button supports two offline operation modes. Press once to run an action group once, long press to run the action group in a loop.

Supports Secondary Development

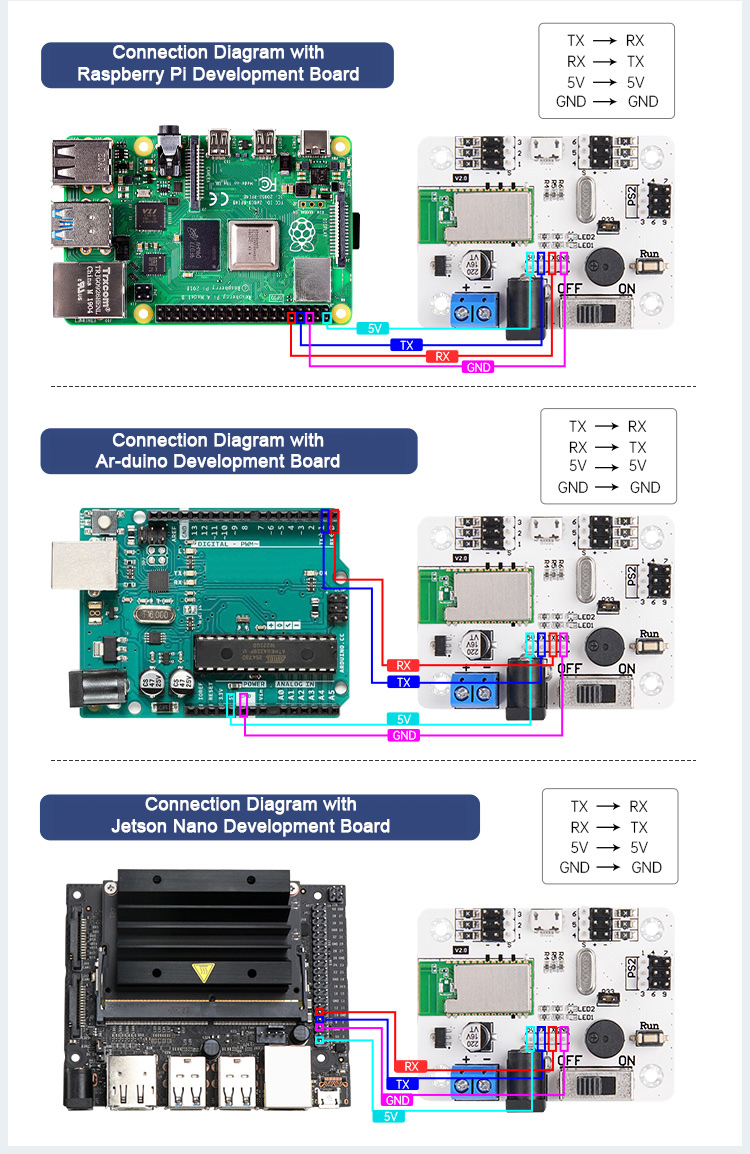

* Onboard serial communication interface allows the controller to connect with other microcontrollers. Other microcontrollers can send commands to the controller. Communication examples are provided for secondary development, facilitating development and expansion.

16M Large-Capacity Storage
* The onboard 16MB memory can be used to store 230 action groups and 10,000+ actions.

Low Voltage Alarm
* The onboard buzzer will emit a beeping sound when the positive voltage drops below 5.6V, reminding the user to recharge.

Online Debugging, Driver-Free for PC
* The onboard USB interface allows convenient online debugging without installing any drivers.

Signal Isolation Protection
* It is equipped with signal isolation protection, isolating the servo output from the CPU to prevent current surges from damaging the CPU.

Built-in Independent Switch
* The switch is built-in for convenient use and reduced wiring complexity.

Easy Wiring
* Simple wiring design — the control board has only positive and negative power interfaces.

PC Graphical Software Provided
* Driver-free installation and automatic connection. It supports Simplified Chinese/Traditional Chinese/English language switching.
* The PC software allows online debugging of servo parameters such as angle, deviation, and ID, and supports drag-and-drop programming to generate robot action files.

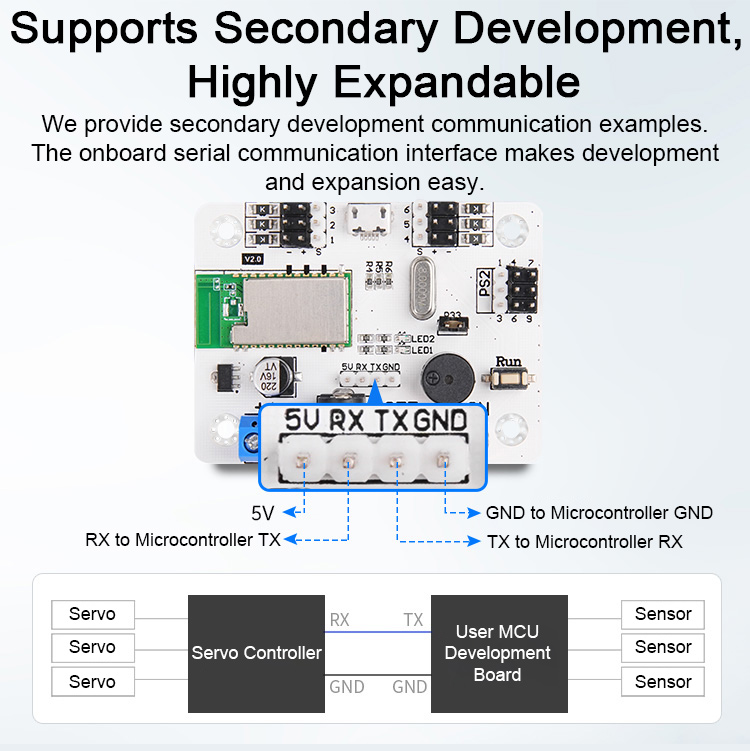

Supports Secondary Development, Highly Expandable
* We provide secondary development communication examples. The onboard serial communication interface makes development and expansion easy.

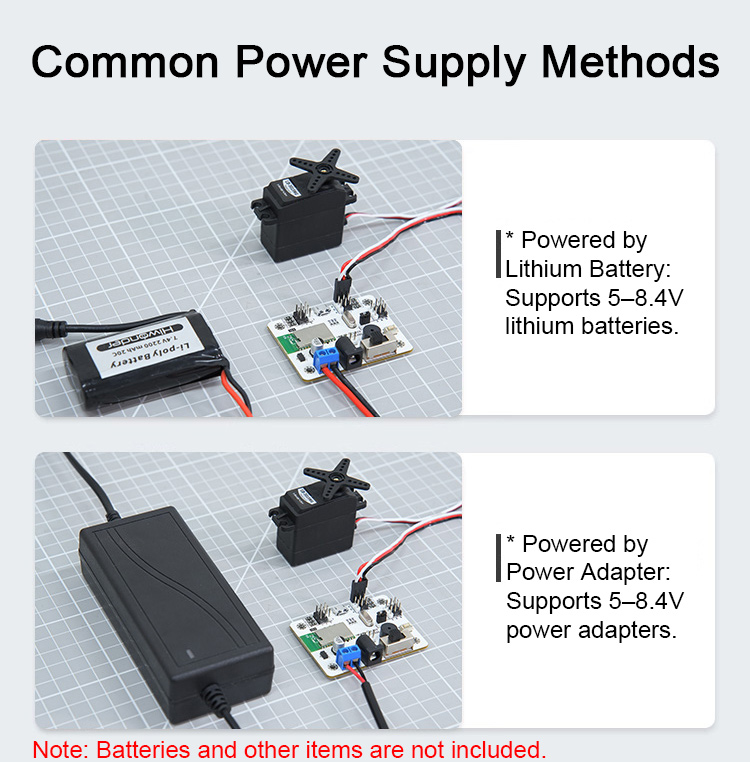

Common Power Supply Methods
* Powered by Lithium Battery: Supports 5–8.4V lithium batteries.
* Powered by Power Adapter: Supports 5–8.4V power adapters.

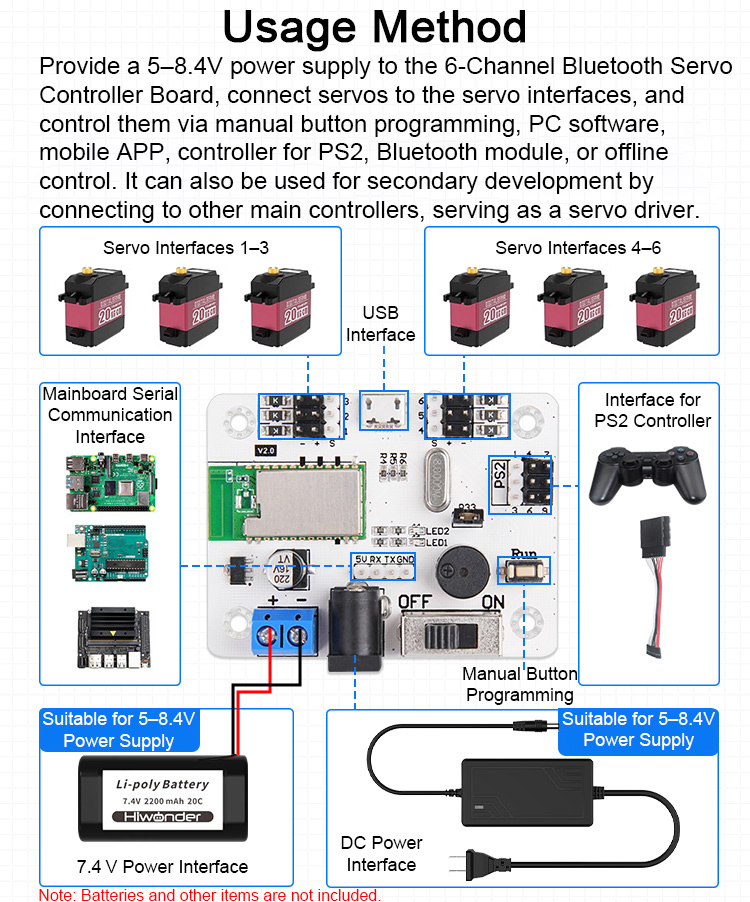

Usage Method:
* Provide a 5–8.4V power supply to the 6-Channel Bluetooth Servo Controller Board, connect servos to the servo interfaces, and control them via manual button programming, PC software, mobile APP, controller for PS2, Bluetooth module, or offline control. It can also be used for secondary development by connecting to other main controllers, serving as a servo driver.

Specifications:
* Product Name: 6-Channel Bluetooth Servo Controller
* Supply Voltage: 5~8.4V
* Number of Controlled Servos: 6
* Signal Isolation Protection: Supported
* Over-current Protection: Supported
* Low Voltage Alarm: Supported
* Low Voltage Alarm Switching: 5V/6.4V
* Built-in Power Switch: With

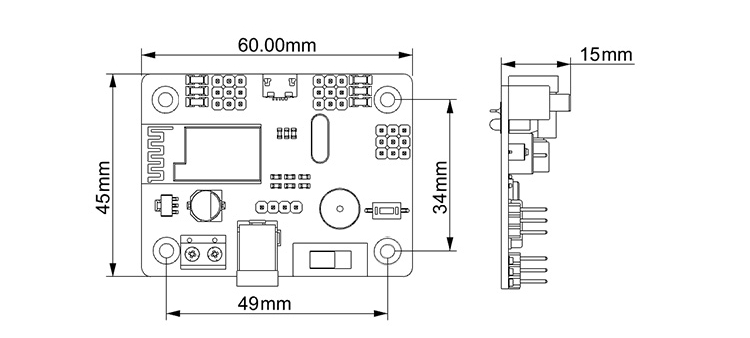

* Mounting Hole Distance: 49mm × 34mm
* USB Control: Supported
* Servo Interface Voltage: 5~8.4V
* Storage Capacity: 16M
* External Connection for Ar-duino, C51, STM32, Raspberry Pi, Jetson (Secondary Development): Supported
* Bluetooth Module: Built-in Bluetooth 4.0
* Gamepad Control for PS2: Supported
* Product Dimensions: 60mm × 45mm
* Product Weight: 20g

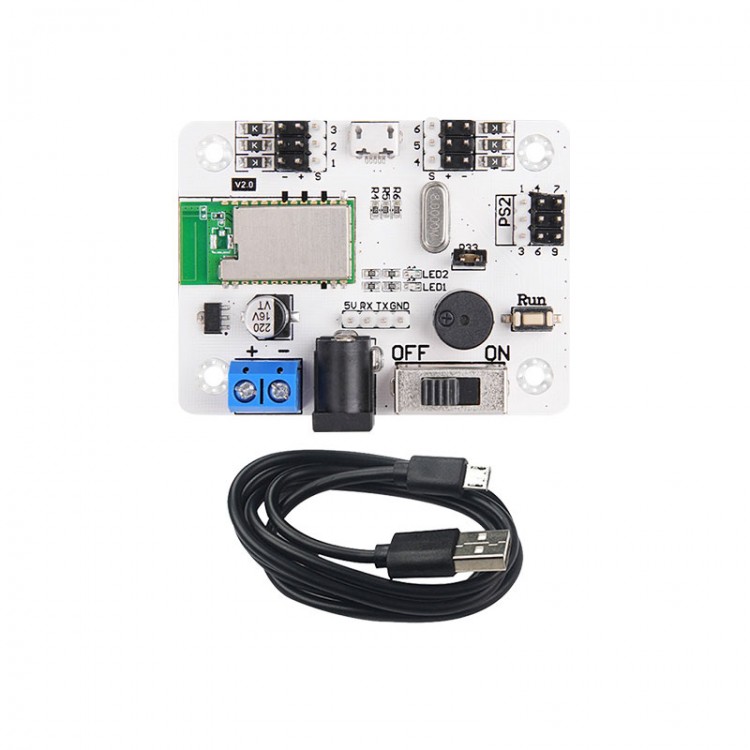

Packing List:
* 1 × Bluetooth Servo Controller
* 1 × USB Data Cable

Packaging Details:
* Weight: 0.15kg
