Hiwonder Qtruck Robot Car Kit Tracked Line-Following & Transport + 3DOF Robot Arm without Micro:bit

Hiwonder Qtruck Robot Car Kit Tracked Line-Following & Transport + 3DOF Robot Arm without Micro:bit

Warm Tips:
1. Qtruck is an educational robot based on micro:bit programming and supports four transformable configurations.
2. It is delivered as a kit and requires self-assembly and debugging. Detailed assembly instructions are provided.
3. We offer rich tutorial resources, supporting software, and comprehensive real-person video guides.

Description:
Qtruck is a micro:bit-based educational robot designed for AI learning. Micro:bit (optional) can be used as the core controller. And it is equipped with a lightweight robotic arm, ultrasonic sensor, line-following sensor, and other electronic modules. Easy to assemble, it can transform into four different configurations and supports over 20 creative AI functions such as intelligent transport, line-following, and obstacle avoidance.

We provide extensive course materials and real-person video tutorials, along with multiple AI scenario projects, helping you learn programming more easily and build your own AI robot.

Product Parameters:
* Product Size: 255mm×150mm×100mm
* Product Weight: About 0.81kg
* Power Supply: 3.7V 18650 LiPo Battery (1800mAh)
* Running Time: About 60 minutes
* Controller System: micro:bit (optional) + micro:bit Expansion Board

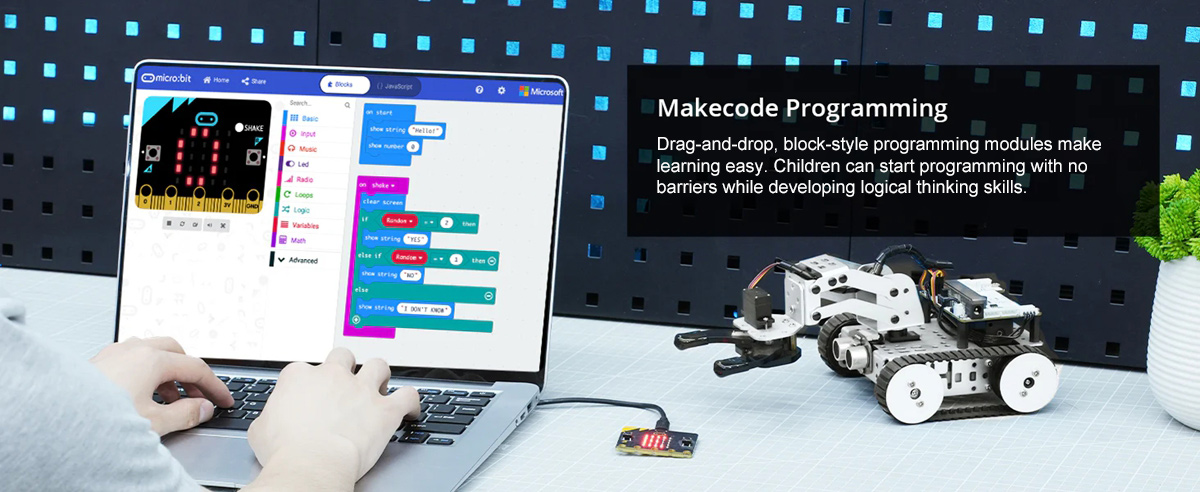

* Programming Software: MakeCode (Offline Version), micro:bit (Graphical Programming/JavaScript)
* Input: Sound Sensor, Ultrasonic Sensor, Line Follower, Light Sensor, Accelerometer, Electronic Compass, Temperature Sensor
* Output: Buzzer, RGB Lights, Motor Ports, Servo Ports, 5×5 LED Dot Matrix
* Communication Port: USB, Bluetooth

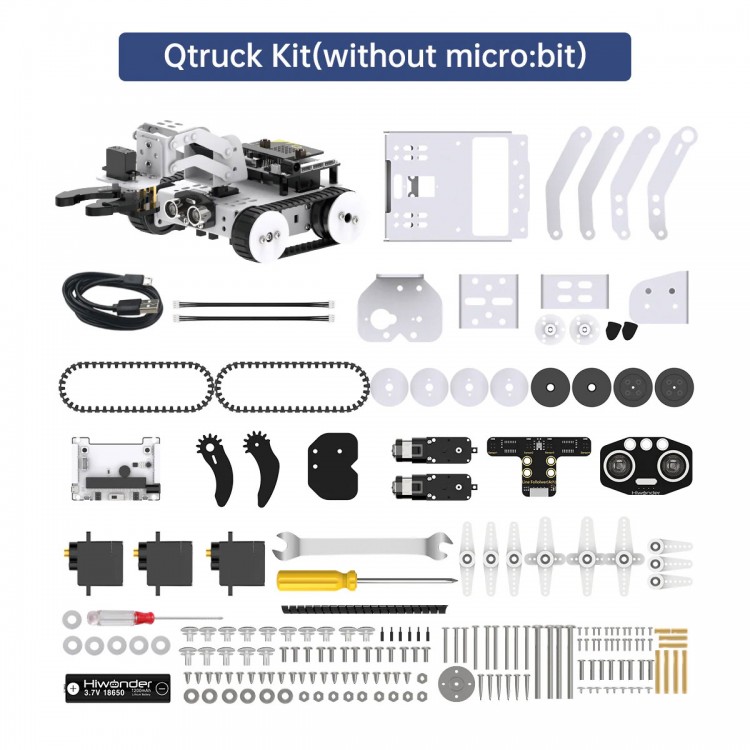

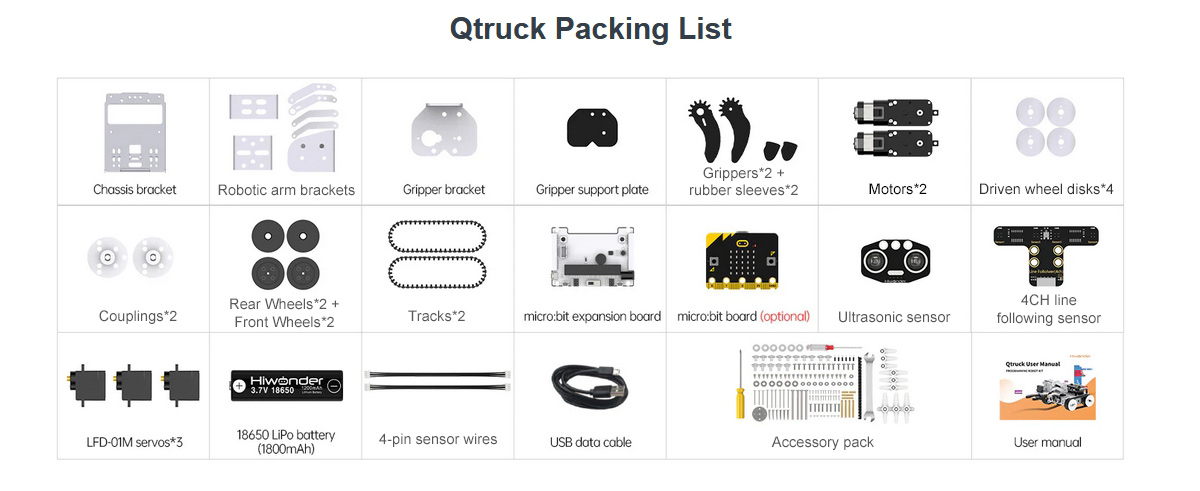

Packaging Details:
* Weight: 1.23kg

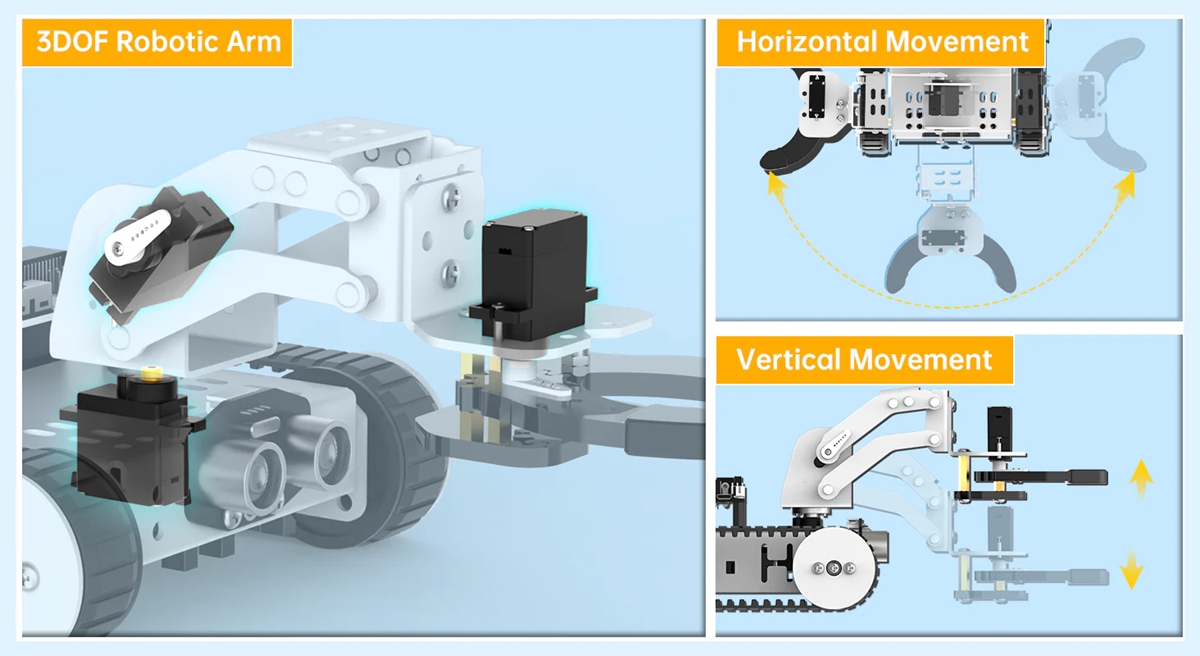

3DOF Robotic Arm
* Qtruck features a small robotic arm with 3 micro-servos, capable of horizontal and vertical movement to grab and transport items.

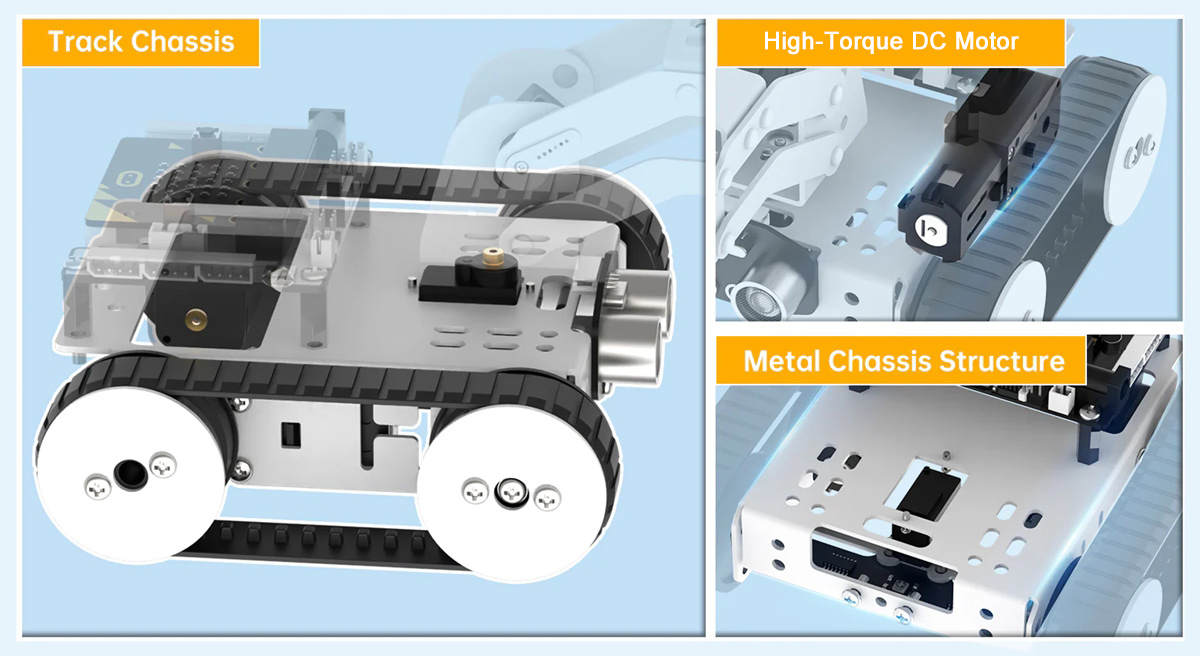

Track Chassis Design
* Qtruck adopts a track chassis with a metal frame and a high-torque DC motor, making it a high-performance micro:bit vehicle.

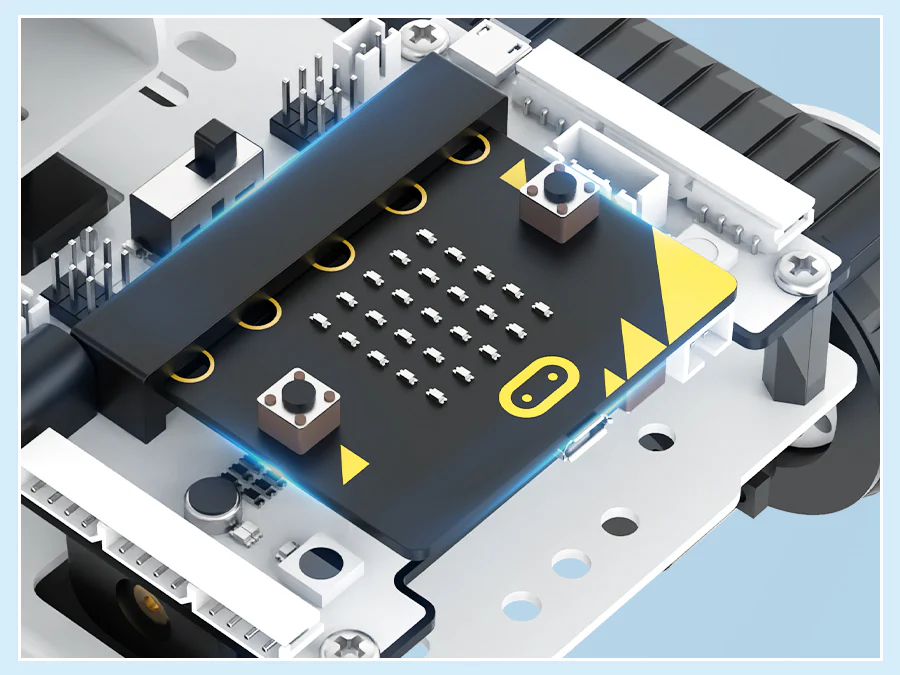

micro:bit Programming
* micro:bit is an open-source hardware platform promoted by the BBC for teen programming education. You can code, customize, and control your micro:bit from anywhere.

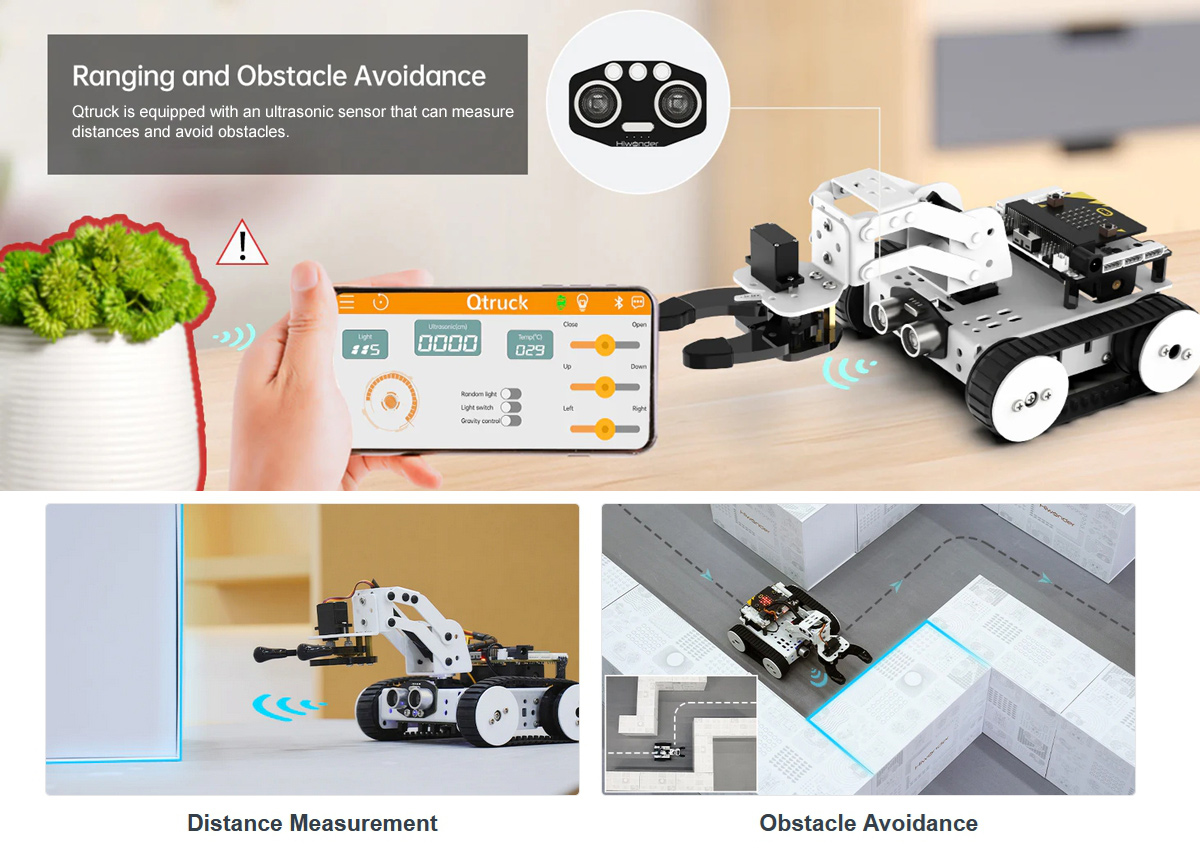

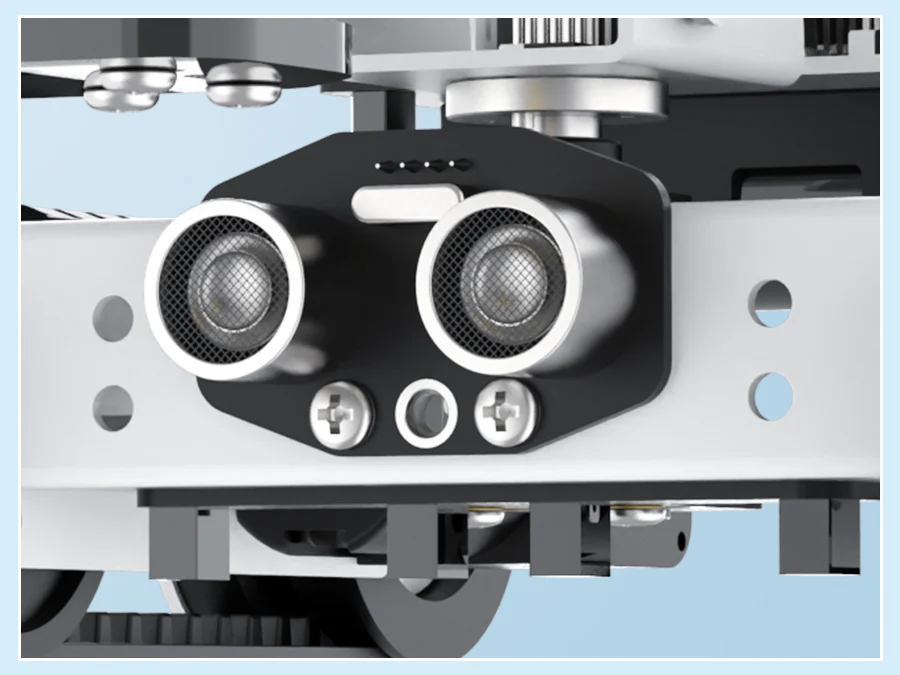

Ultrasonic Sensor
* Qtruck is equipped with an ultrasonic sensor for distance measurement and obstacle avoidance.

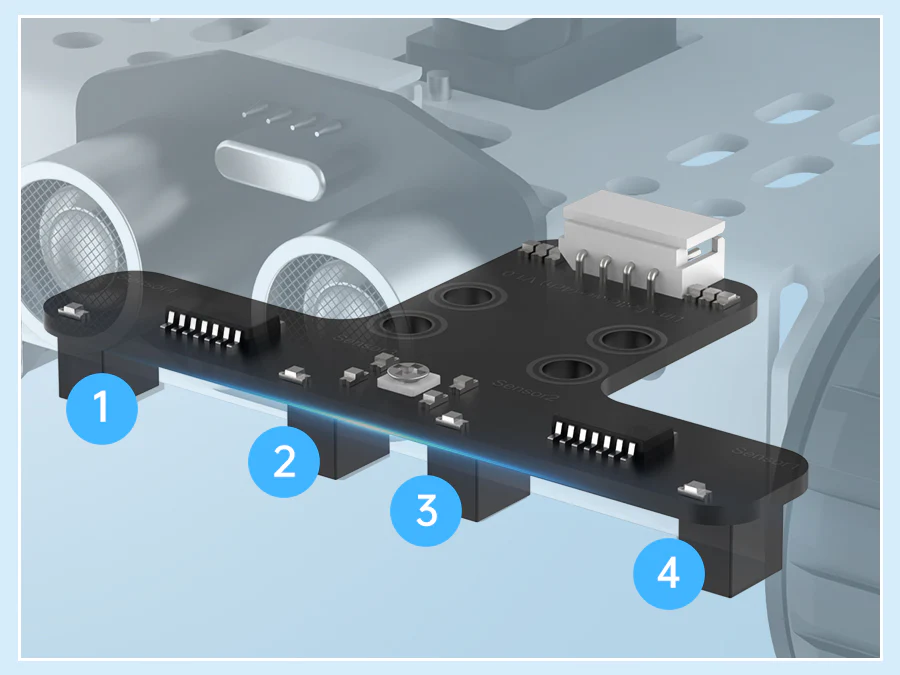

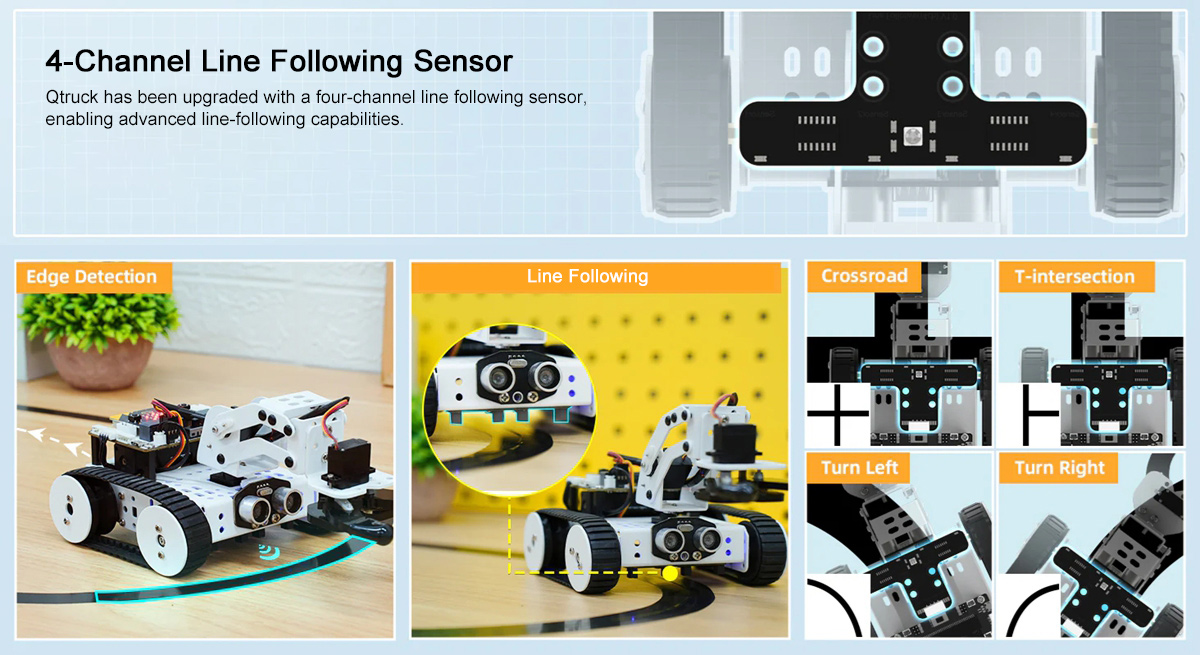

4-Channel Line Follower
* With 4-channel infrared tracking, Qtruck can detect black lines even on sharp turns, enabling variable line following.

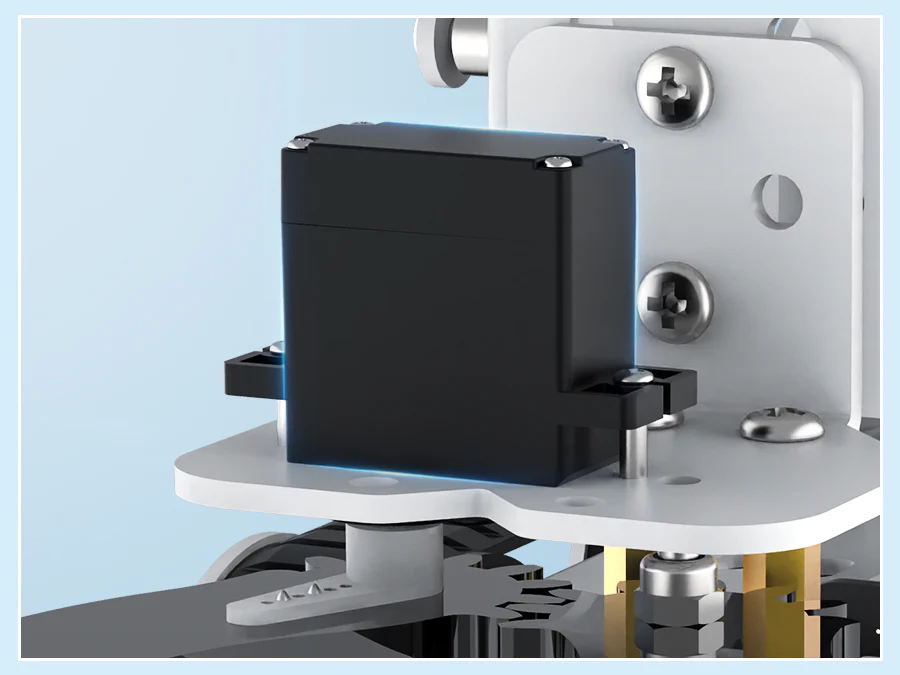

Anti-Blocking Servo
* Three anti-blocking servos prevent damage from blockage or collision, greatly extending the service life of the robot.

Abundant Function:

Cross the Maze

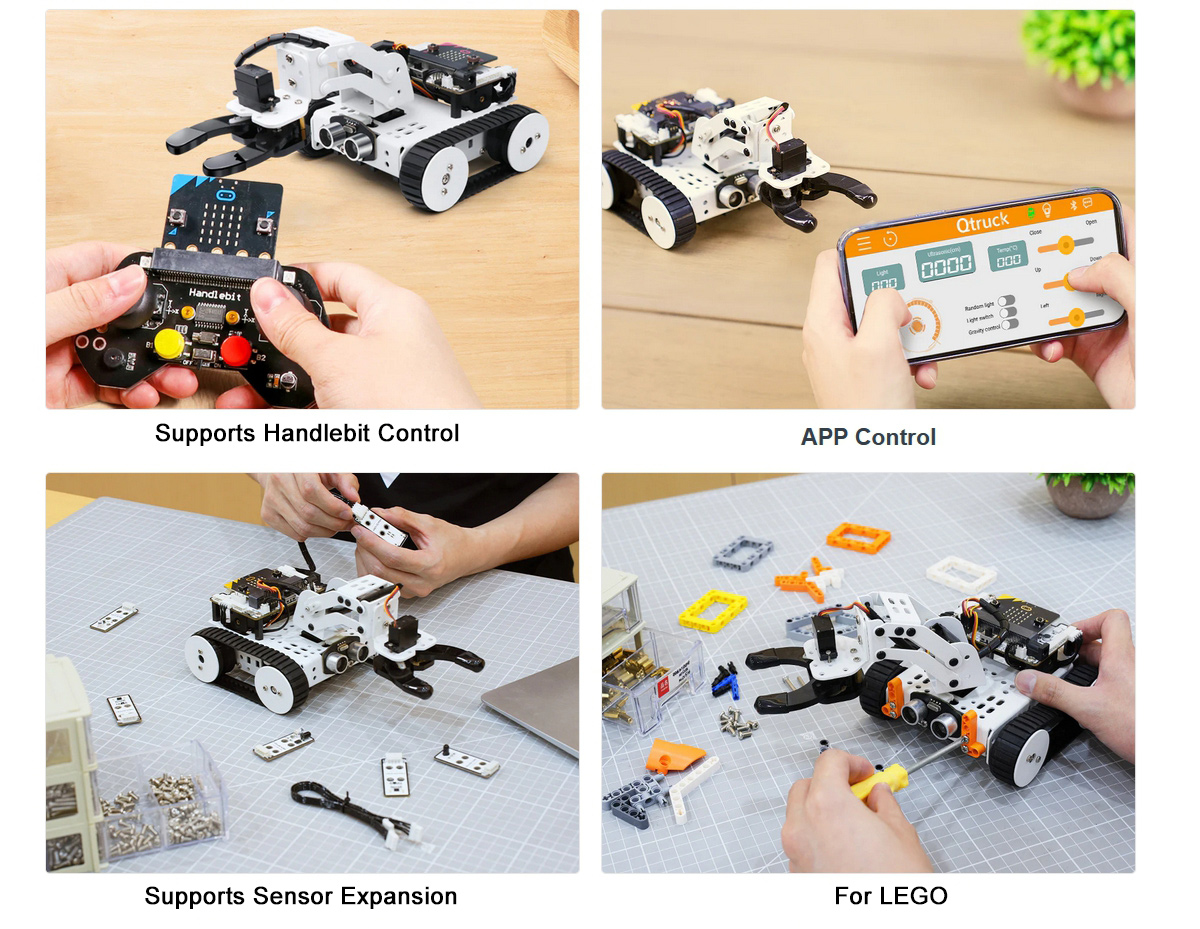

Handlebit Control


Grab in a Certain Distance


Clear the Obstacle on Its Way


Intelligent Line Tracking


Chasing
