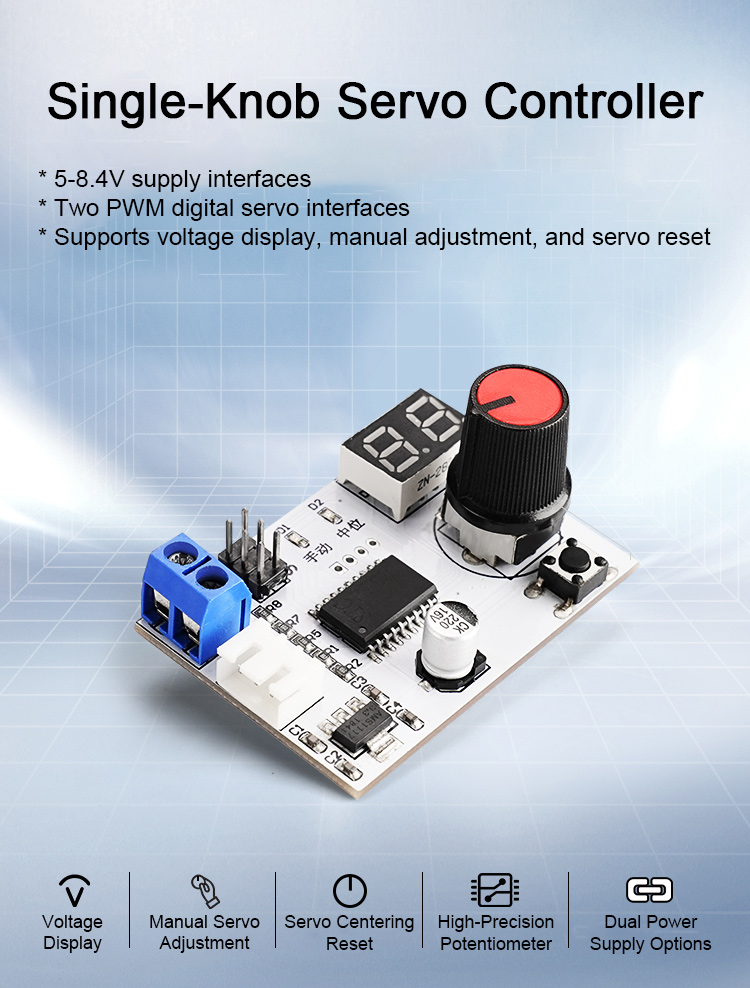

Hiwonder Single-Knob Servo Controller Board Servo Tester with Voltage Display & Manual Adjustment
Description:
This single-knob servo controller is equipped with two PWM digital servo interfaces and a high-precision potentiometer, enabling synchronous servo control and quick centering reset. Dual power supply options and real-time voltage display make it ideal for servo testing and robot development.
Features:
Single-Knob Servo Controller
* Single-Knob Control: The controller features one knob for precise manual adjustment of connected servos.
Dual Power Supply Options

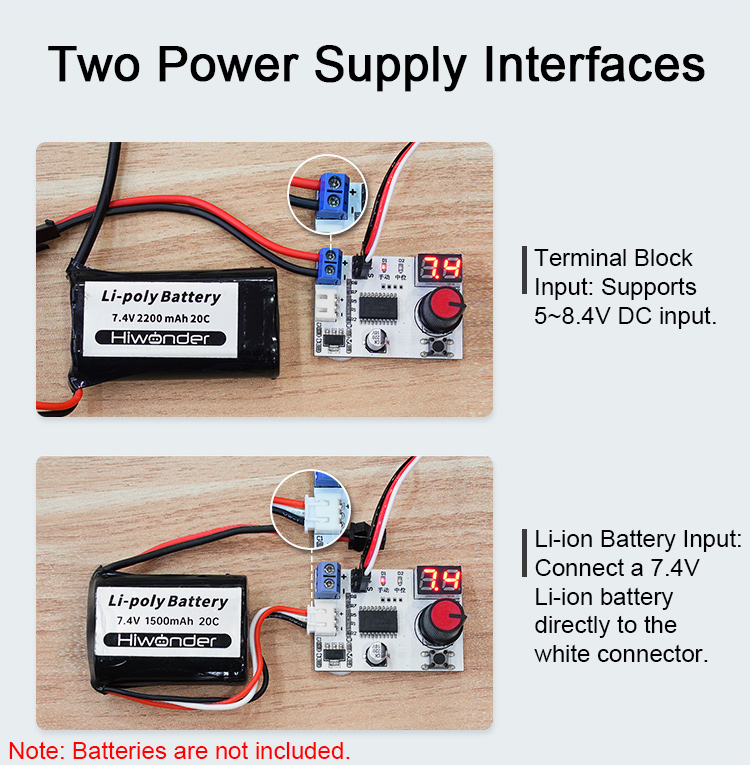

* 5-8.4V Supply Interfaces: Supports two types of power input—terminal block or 7.4V Li-ion battery connection via white connector.
Two PWM Digital Servo Interfaces
* Dual PWM Interfaces: Supports two digital PWM servos, allowing synchronous control.
Voltage Monitoring
Monitors supply voltage to prevent failures during servo testing or operation.
Manual Servo Control

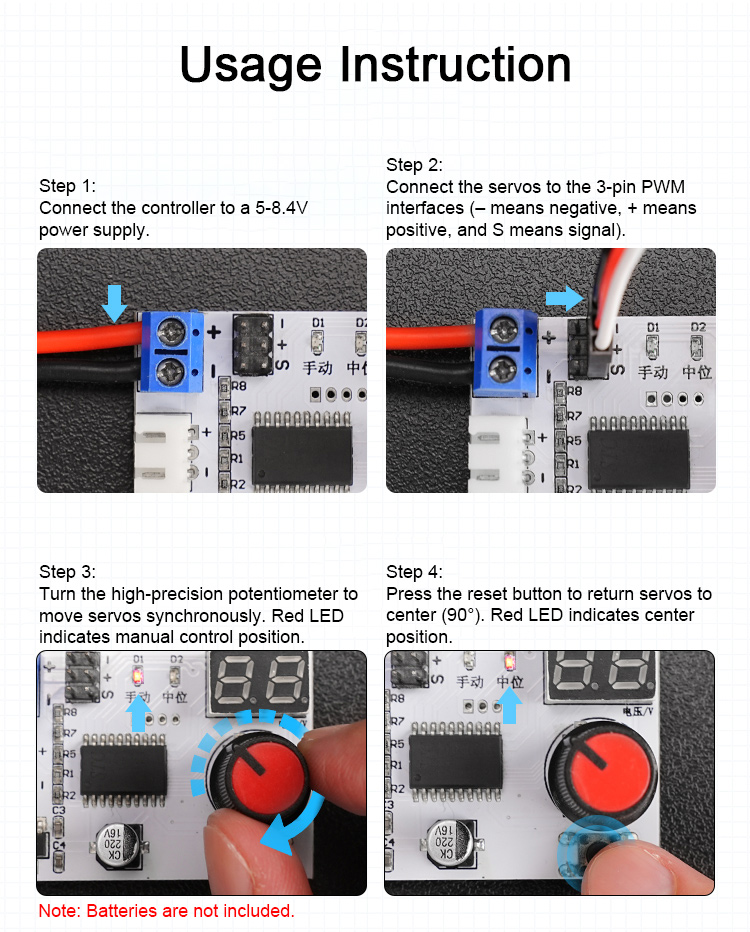

* Adjust the knob to control the angles of two servos synchronously.
Quick Centering Reset
* Press the reset button to return both servos to 90° instantly.
Supports Multiple Servos
* Compatible with the full range of Hiwonder PWM digital servos, as well as other PWM digital servos of the same type on the market.

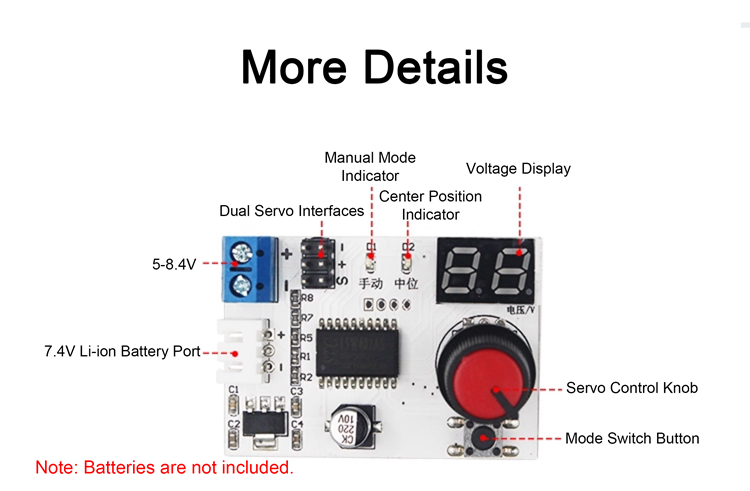

Product Parameters & Advantages:
* High-Precision Potentiometer: Allows real-time manual control of the servos.
* Built-in Voltage Display Module: Monitors the supply voltage in real time.
* High-Resolution PWM Signal: Onboard 8-bit MCU provides higher control accuracy.
* Supports Manual Servo Control / Servo Centering Reset: Switchable via function button.
* Servo Control Accuracy: 0.09° (corresponding to 1µs PWM minimum change).
* Dual Power Supply Interfaces: Supports 5-8.4V input.
* Onboard Dual PWM Digital Servo Interfaces: Controlled via high-precision potentiometer.

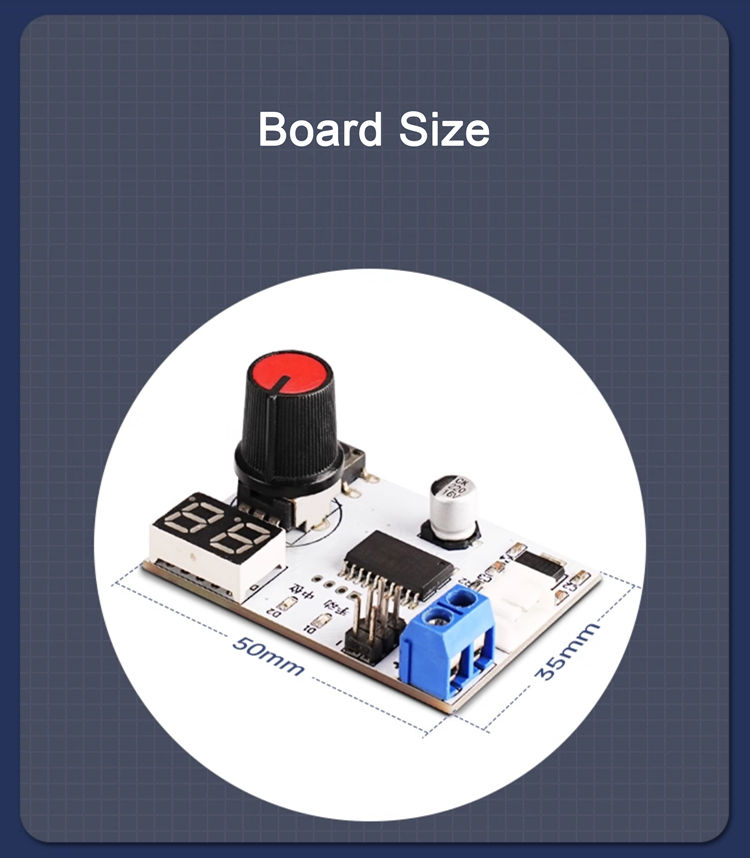

* Single-Knob Controller Size: 50mm × 35mm, Weight: 13.5g.
Packing List:
* 1 × Servo Controller Board
Packaging Details:
* Weight: 0.15kg
Note:
* Batteries are not included.
