Hiwonder Universal Bus Servo Controller Board for PS2 Controller/Bluetooth Module/Robotic Arm/Robot

Hiwonder Universal Bus Servo Controller Board for PS2 Controller/Bluetooth Module/Robotic Arm/Robot

Warm Tips:
* Only compatible with Hiwonder brand serial bus servos.
* Provides rich learning materials and example codes.
* Includes secondary development communication examples for Ar-duino, 51, and STM32 microcontrollers.
* Supports for external MP3 module, Bluetooth 4.0 module, and PS2 controller connection.

Advantages:
* Can Control 40 Serial Bus Servos
* Supports Manual Button Programming
* Supports Angle Feedback
* Supports Secondary Development
* Low Voltage Alarm
* Supports Mobile APP
* For PS2 Controller
* Supports MP3 Module
* Supports Bluetooth Module
* Supports Wireless Debugging
* PC Graphical Programming
* Supports Secondary Development
* Built-in Independent Switch
* Easy Wiring
* Can Store 100,000 Actions
* Provides Secondary Development Examples
* Provides Technical Support

Description:
The serial bus servo controller board uses a high-performance 32-bit chip with a Cortex-M3 core for ARM, enabling high-precision servo control with adjustable speed. It features onboard controller (for PS2), USB, Bluetooth, MP3, and TTL serial communication interfaces, supporting multiple control methods. Additionally, it has 10 bus servo interfaces, capable of simultaneously controlling up to 40 Hiwonder 6–12V serial bus servos.

We provide PC graphical programming software, allowing you to debug servo angles and other parameters online. The software supports angle feedback and enables rapid robot action programming by manually adjusting servo angles. This makes development and expansion convenient, helping you easily accomplish various robotic projects.

Features:
Serial Bus Servo Controller Board
* 32-Bit high-performance chip
* Supports controlling 40 Hiwonder 6–12V serial bus servos

Multiple Control Methods
* Mobile APP Control: The servo controller board has a built-in Bluetooth module interface. It can work with an optional Bluetooth module and our mobile APP to remotely control servo movements, supporting both global and single-point control.
* PC Wireless Control: Using the built-in Bluetooth module interface with optional wireless and Bluetooth modules, wireless debugging is possible, freeing you from USB cable restrictions and making debugging more convenient.
* Control via Controller for PS2: The board has a built-in receiver interface for PS2 controller. Our optional controller for PS2 can be directly plugged into the board, with a control range of about 10 meters.
* Offline Control: Quickly set servo angles without using PC software, enabling fast programming.
* Serial Communication Control: The board has a built-in serial communication interface. Communication examples are provided, supporting secondary development and expanded control.

32-Bit High-Performance Chip for ARM
* CPU uses a 32-bit Cortex-M3 core chip for ARM, enabling high-precision servo control with adjustable speed.

Supports Manual Button Programming
* Quickly set servo angles without using PC software, enabling fast programming.

Supports Bluetooth 4.0/MP3 Module
* Compatible with our Bluetooth and MP3 modules. When the MP3 module is connected, the robot can produce sound; when the Bluetooth module is connected, the robot can be controlled via mobile APP or motion-sensing gloves.

Onboard USB Interface
* Supports for PS2 controller. When it is used with our optional controller for PS2, the USB receiver can be directly plugged into the board, with a control range of about 10 meters.

Supports Secondary Development
* Equipped with an onboard serial communication interface.
* Provides secondary development communication examples for easy development and expansion.

16M Large-Capacity Storage
* Onboard 16 MB memory can store 230 action groups and 10,000+ actions.

Low Voltage Alarm
* The onboard buzzer will beep when the positive voltage drops below 5.6V, reminding the user to recharge.

Built-in Independent Switch
* The switch is built-in for convenient use, reducing wiring complexity.

Easy Wiring
* Simple wiring design — the control board has only positive and negative power interfaces.

Can Control 40 Hiwonder Serial Bus Servos
* The board has 10 bus servo interfaces, capable of controlling up to 40 servos, which can be daisy-chained together.

PC Graphical Programming Software Provided
* Driver-free installation and automatic connection. It supports Simplified Chinese, Traditional Chinese, and English.
* The software supports online debugging of servo parameters such as angle, deviation, and ID, with drag-and-drop programming to generate robot action files.
* The PC software supports angle feedback, allowing rapid robot action programming by manually adjusting servo angles, and also supports online monitoring of voltage, temperature, and position for precise servo status tracking.

Supports Secondary Development, Highly Expandable
* With an onboard serial communication interface. We provide secondary development communication examples for easy development and expansion.

Multiple Usage Scenarios
* Servo control
* Servo gimbal control
* Robotic arm control
* Biomimetic hexapod robot control

Usage Method:
* Provide 6–12V power to the bus servo controller board and connect the servos to the servo interfaces. Servos can be controlled via manual button programming, PC software, mobile APP, controller for PS2, Bluetooth module, motion-sensing gloves, or offline control. The board can also be used for secondary development by connecting to other main controllers, serving as a servo driver.

Common Power Supply Methods:
* Powered by Lithium Battery: Supports 6–12V lithium batteries.
* Powered by Power Adapter: Supports 6–12V power adapters.

About Power Supply Voltage:
* If you are using 7.4V bus servos, such as LX-15D, LX-16A, LX-824, LX-225, LX-20S, LX-224 and LX-1501, please use a 7.4V lithium battery for power.
* If you are using 11.1V bus servos, such as LX-224HV and LX-824HV, please use an 11.1V lithium battery for power.

Specifications:
* Product Name: Bus Servo Controller
* Supply Voltage: 6–12V
* Programming Method: PC Software/Manual Button
* Memory: 16M
* Built-in Switch: Supported
* Driver-Free for PC: Supported
* Servo Angle Feedback: Supported
* Mounting Hole Distance: 49mm × 34mm
* USB Control: Supported
* Control Methods: PC Software/Controller for PS2/Bluetooth/Offline
* Communication Method: Serial Communication
* Low Voltage Alarm: Supported
* External Microcontroller Connection: Supported
* External MP3/Bluetooth Module: Supported
* Dimensions: 58mm × 42mm
* Product Weight: 21g

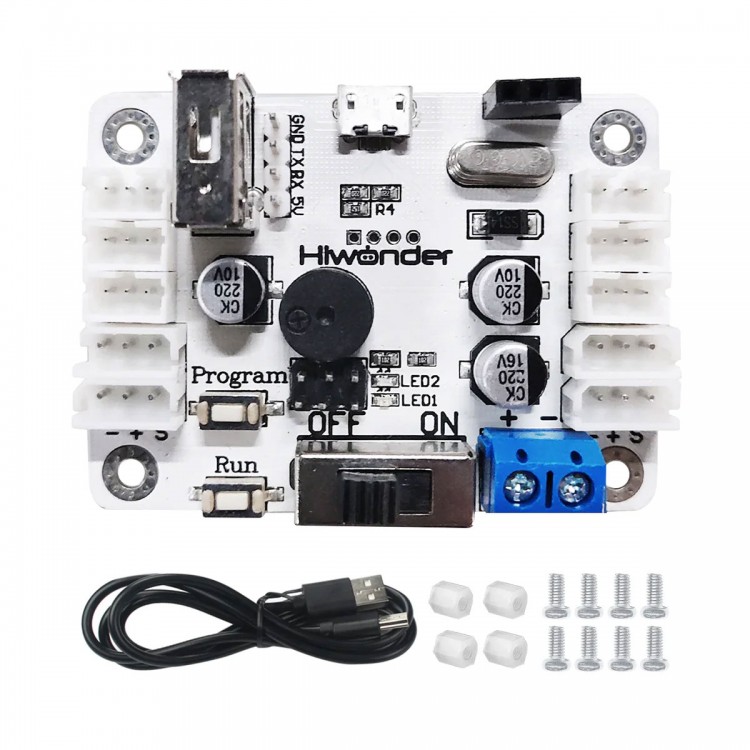

Packing List:
* 1 × Set of Bus Servo Controller

Packaging Details:
* Weight: 0.15kg

Note:
* Batteries are not included.
