MPC5088 5-inch Type-C USB Sub Display HD IPS Computer Secondary Monitor with CNC Shell Support Brightness Adjustment

MPC5088 5-inch Type-C USB Sub Display HD IPS Computer Secondary Monitor with CNC Shell Support Brightness Adjustment

Description:
USB One-Line-Through Monitor:
- Only one USB cable is needed to connect to the USB port of the computer to communicate and transmit the computer screen data. There is no need for HDMI-compatible or other connection cables.
- Note: The USB one-line-through function only supports for Windows 7/8/10/11 systems and requires the installation of drivers.

Supports for Windows 7/8/10/11:
- Only need to configure the software for the first connection, and it can be plug-and-play afterwards.

CNC Fine-Carved Integrated Shell:
- The shell is made of integrated aluminum material and is integrally formed by CNC carving. The shell is round and has a texture, with meticulous carving.

Supports Brightness Adjustment:
- The brightness is adjustable, and the last brightness setting is automatically maintained when the power is off, which is convenient for DIY.

Application Scenario ① - DIY of Chassis Secondary Screen:
- With the AIDA64 software, it can be used as a USB secondary screen to display the running information of the CPU, memory, hard disk, etc. in real time.

Application Scenario ② - USB Computer Desktop Secondary Screen:
- Just connect one USB cable to any USB port of a Windows computer. After installing the driver, it can be used as a computer secondary screen, without occupying other HDMI-compatible/DVI/DP/VGA ports of the host.

Application Scenario ③ - Industrial Control Host Monitoring Screen:
- Connect to the USB port of an industrial control host with Windows system, it can be used as an industrial control host monitoring screen and for debugging parameters when going out. The connection is convenient, portable, simple, and cost-effective.

Specification:
- Display screen type: IPS screen
- Display screen size: 5 inches
- Resolution: 1024 x 600
- Brightness: 500
- Frame rate: 25 FPS
- Touch type: no touch
- Backlight adjustment: adjustable by buttons (using a SIM card pin is required)
- Power supply: Type-C (5V)
- Overall power: 2.1W

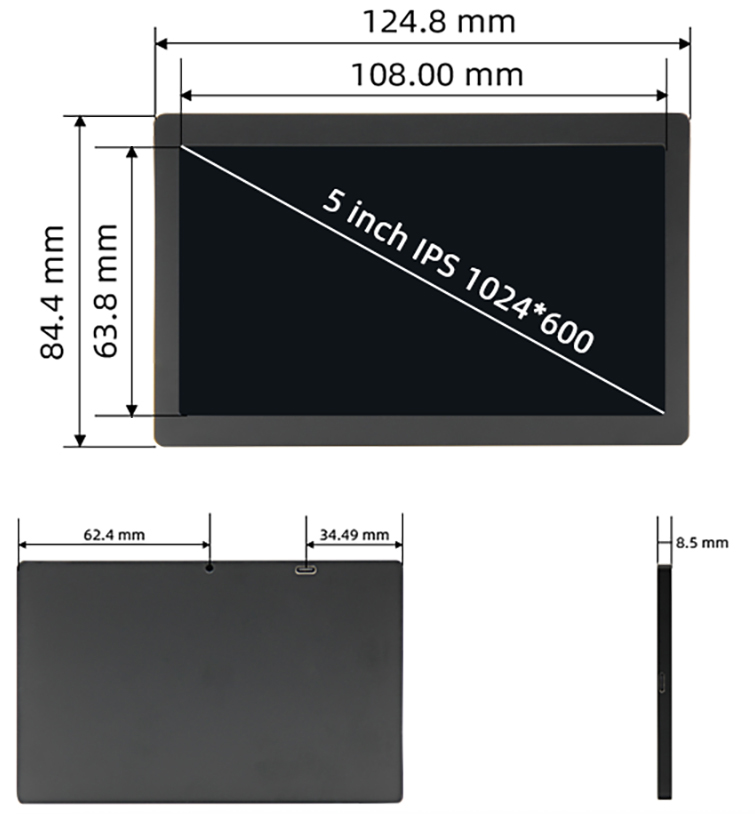

- Effective display area (AA area): 108.0 x 63.8 (mm)
- Module size (length x width x height): 124.8 x 84.4 x 8.5 (mm)

Package Included:
- 1 x 5-inch USB Display
- 1 x 90° Right Angle Mount
- 1 x USB Cable
- 1 x M4x6 Screw

FAQ: If there is a problem of a distorted screen or a black screen.
- Solutions:
  1. When the screen is black, first check if the light is on; if the light is not on, then replace the Type-C data cable/switch the USB port on the computer, and then test again.
  2. Right-click on the desktop to check if the display settings detect the screen; if the screen is not detected, then replace the Type-C data cable/switch the USB port on the computer, and then test again.
  3. Confirm whether it is in the copy mode in the display settings; if it is in the copy mode, please change it to the extended mode.
  4. Open the Task Manager, close the MS USB Display process in the processes, and then restart the program.
  5. Confirm whether the config.int file has been replaced.
