Portable Supercapacitor Spot Welding Machine 18650 Battery Spot Welder for 0.3mm Nickel Strips

Portable Supercapacitor Spot Welding Machine 18650 Battery Spot Welder for 0.3mm Nickel Strips

Description:
This product is a supercapacitor energy storage spot welder, primarily used for welding 18650 and similar batteries. It supports practical welding of nickel strips up to 0.25mm thick, with a maximum welding capacity of 0.3mm.

Its powerful welding capability also allows for welding 0.1mm thin copper sheets to the main output terminals of battery packs, enhancing their current-carrying capacity.

Advantages:
* Dual Pulse Welding Current Peak Data Reading: Enables monitoring of the output current value for each welding pulse.
* Automatic Trigger Function: It automatically detects when the welding pins touch the nickel strip and triggers a pulse output. A foot switch can also be connected for manual control.
* Built-in High-Power Balancing Circuit: Ensures equal voltage between two batteries and protects the capacitors during operation.
* Smart Fan Temperature Control Strategy: The fan stops automatically once charging is complete, prolonging the bearing life.
* Powered by 12V DC: Safer than 220V AC input. Electric shock risks can be eliminated and portable use of the spot welder is allowed.
* 25-Level Ultra-Fine Adjustment: The fast/slow knob allows quick adjustment of levels with different step resolutions.

Features:
Supercapacitor Digital Spot Welder
* Maximum welding thickness: 0.3mm
* Dual-pulse welding
* 25-level ultra-fine power adjustment

Key Advantages
* Color LCD display
* 25 adjustable power levels
* Temperature protection
* Dual-pulse welding
* Dual supercapacitor design
* Stepless adjustment knob with smooth feel

25-Level Power Adjustment & Dual-Pulse Welding
* The spot welder automatically detects when the welding pins contact the nickel strip and trigger a pulse output. A foot switch can also be connected for manual control.

12V Field Operation & Portable Power Supply
* Unlike transformer-based spot welders, this supercapacitor model accumulates energy through a low current over time. It eliminates power supply concerns, avoiding grid impact or circuit breaker trips. Any 12V power source (>3A) can adequately power the device. It is compatible with 5.5–2.1 mm DC plugs.

Vertical Carrying Handle
* Human-centered design with a lightweight yet high-strength frame. The professional-grade casing can support up to 75kg (approx. 165 lbs)—strong enough to stand on.

1.8-Inch LCD Screen Display
* The clear LCD screen shows operational status and data at a glance—more intelligent, accurate, and user-friendly.

Display Contents
* C1: Real-time voltage of supercapacitor 1
* C2: Real-time voltage of supercapacitor 2
* Time: Pulse output level
* Delay: Welding delay time
* Temperature: Internal system temperature

Stepless Control Knob
* It utilizes a rotary encoder as the control knob, offering a stepless tactile feel without wear or aging issues. Each "click" corresponds to one level, with fast/slow modes. The knob allows quick level adjustment with variable step precision.

Anti-Slip Foot Pad Design
* The spot welder is equipped with four rubber foot pads to prevent scratches on the work surface and provide sufficient friction for stability. The fully enclosed structure prevents dust ingress. Its matte, mildly warm surface naturally dissipates heat and extends the product's lifespan.

Detachable 50cm Welding Pens
* The 50cm long welding pens feature an internal T2 pure copper wire core with 0.79mΩ resistance. The 25 mm² wire supports up to 1400A output—comparable to five times a car's starting current.

Dual Supercapacitor Design
* This design ensures powerful rapid charge and discharge capability. Laser-welded terminals are bolted tightly to copper busbars using M6 bolts. A brass shim is used between copper and aluminum to avoid galvanic corrosion, ensuring stability and reliability. Capacitors are screened for resistance below 0.6mΩ to guarantee consistent high quality.

Built-in Precision Control Circuit
* The integrated board design uses a single-layer copper busbar with SMT soldering—equivalent to a 40 mm² copper wire—ensuring safe 2kA current handling. An auxiliary fan, governed by smart temperature control, provides additional cooling. Comprehensive over-current and over-temperature protection are included.

Specifications:
* Main Unit Weight: 2.1 kg

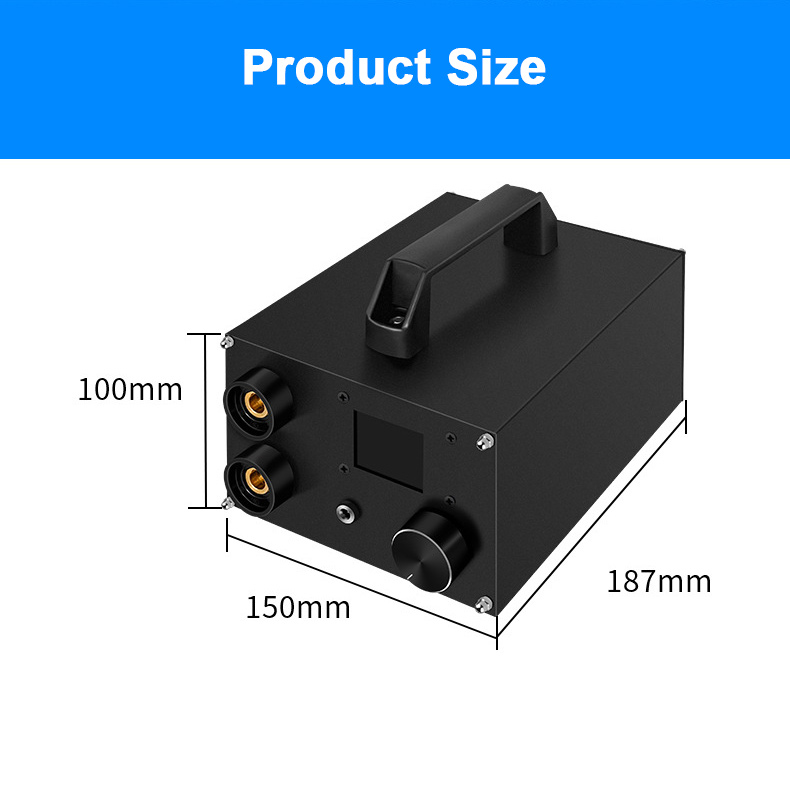

* Main Unit Dimensions: 187 × 150 × 100 mm
* Material: Aerospace-grade aluminum alloy
* Current: 5V / 2100A
* Temperature Control: Intelligent thermal management ensures internal temperature does not exceed 45°C
* Peak Output: 1400A peak current (capable of firmly welding 0.3mm nickel strips)

Precautions:
1. Safety
This supercapacitor spot welder integrates a microcontroller control system and a hardware balancing circuit. Based on mature control technology, it ensures that the 5.6V-rated supercapacitor operates consistently at 5.0V, leaving a safe voltage margin to prevent over-voltage. A 10-MOSFET array controls the discharge, and each current output is visible on the LCD screen. Before shipment, every unit undergoes a rigorous process including welding tests, calibration, and short-circuit testing—ready to use straight out of the box without additional adjustment.

2. High Performance
Due to the ultra-low internal resistance of supercapacitors and a carefully engineered structure combined with dual-pulse welding, the machine delivers exceptional performance. With a 35 mm² setup, it can weld 0.3 mm nickel strips. Even at medium power levels, it can perform industrial-grade assembly of battery packs with 0.25 mm nickel-plated steel strips or 0.2 mm pure nickel strips. It delivers reliable performance (2100A as measured by oscilloscope and current probe).

3. Operability
Thanks to the energy-storage welding machine's structure and high-performance microcontroller for Microchip, the output power can be adjusted in 25 levels. The rotary knob allows for fast or slow turning, providing step increments of 1 ms or 0.1 ms, greatly improving user experience. Both automatic triggering and foot pedal modes are available, making the welder suitable for DIY projects as well as batch production.

4. Service Life & Maintenance of Wear Parts
The supercapacitor—the core component of the welder—is an extremely long-life component, capable of hundreds of thousands of cycles. The only wear parts are the welding pins. The package includes two spare alumina copper welding pins, suitable for welding nickel strips up to 0.25 mm thick. Due to the high power of the welder, using excessively high settings can cause slight melting at the pen tip, known in the industry as "tip sticking", which leads to wear. Advanced users may choose to upgrade to high-performance clamped tungsten welding pins (3.0 mm diameter replaceable).

Packing List:

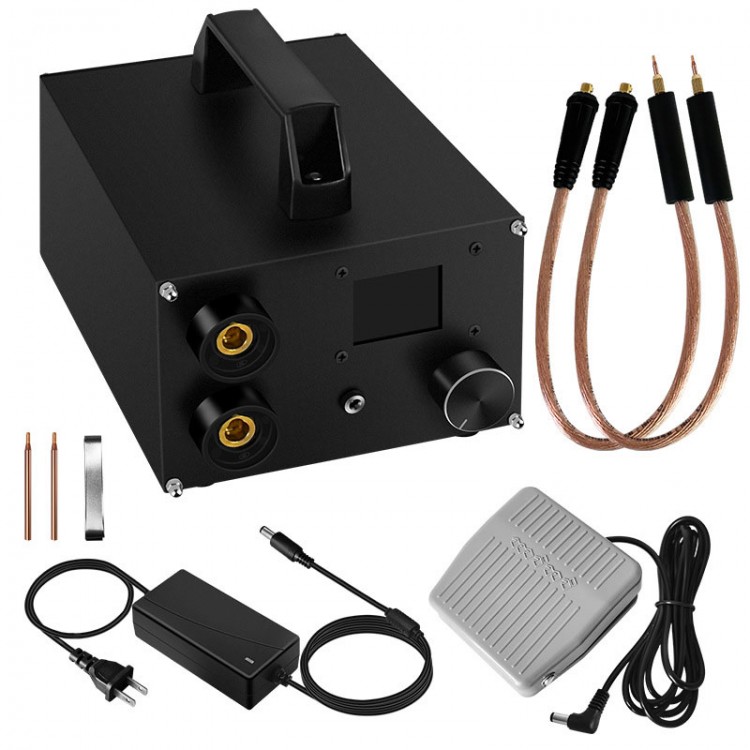

* 1 x Spot Welder Main Unit
* 2 x Welding Pens
* 2 x Welding Pins
* 1 x Nickel Strip
* 1 x Power Adapter
* 1 x Foot Switch

Packaging Details:
* G.W.: 3.25kg

Note:
* Batteries are not included.
