Tags: Mobile Signal Repeater
Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $76.50 | $74.94 | $72.60 | $69.47 | Contact US |
Product Description:
- Aluminum metal frame
- Professional gain indoor outdoor antenna,strong penetrating.
- Indoor open environment:300 square meters
- 377 PCS main board,intelligent ALC level auto control,intelligent AGC gain linkage technology

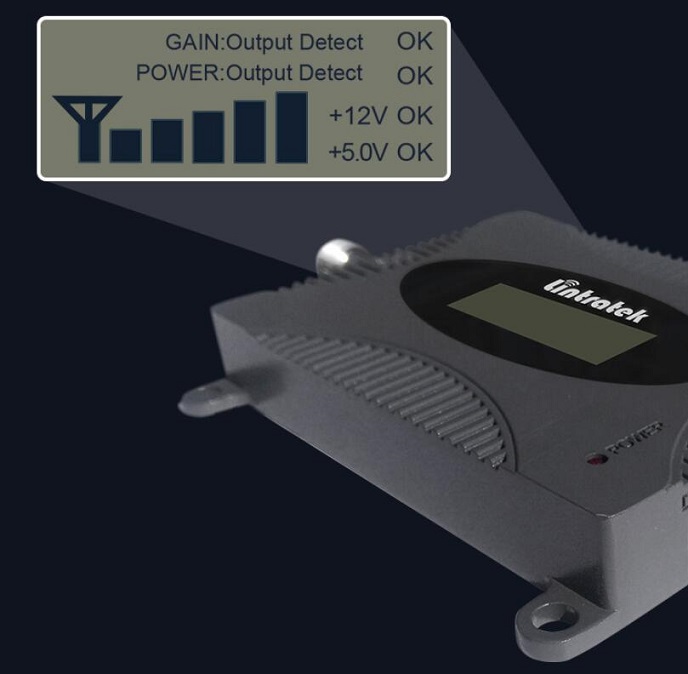

- LCD display
- 50ohm industrial feeder,high transmission rate.
- For most every occasion signal enhancement for your cell phone
Install: Install the outdoor antenna well.Then connects the feeder and install the indoor antenna.\
Specification:
- Working frequency:uplink:890-915MHz;downlink:935-960MHz
- Gain:uplink>=65dBi;downlink:>=70dBi
- Power:>20dBM
- VSWR:<=1.5
- Working coefficient:ACC110-24V+-10% 45-55Hz
- The lowest magnifying power:-105dBm/Channel
- Return loss:<=-18
- Noise figure:<=5dB
- Covering area:0-300M
- Dimension:200x110x25mm
Operator | 2G communication | 2G net | 3G communication | 4G communication | Support section: |
| √ | √ | √ | √ | 134,135,136,137,138,139,150,151,152,157(TD),158,159,187,188 |
China Unicom | √ | √ | √ | √ | 130,131,132,155,156,185,186 |

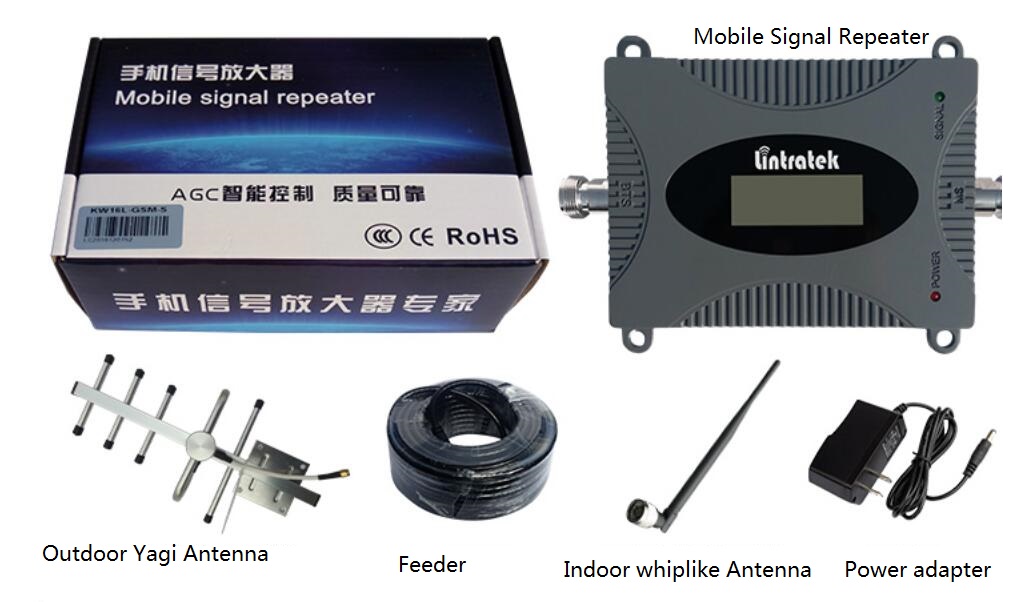

Package List:
- 1 x Main unit
- 1 x Indoor whiplike Antenna
- 1 x Outdoor Yagi Antenna
- 1 x Feeder
- 1 x Power adapter
