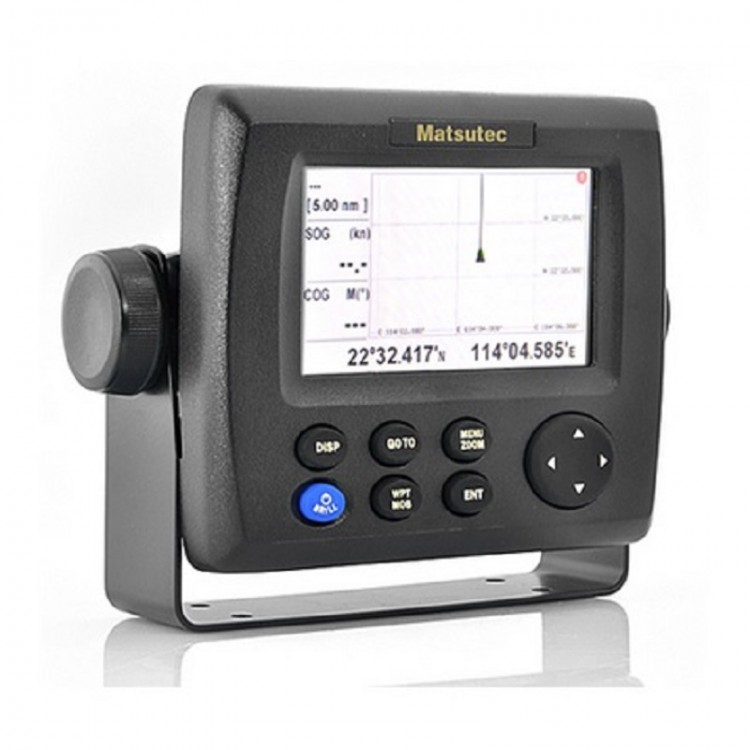

High Sensitivity HP-33A 4.3 Inch AIS Transponder Combo Marine GPS Navigator

High Sensitivity HP-33A 4.3 Inch AIS Transponder Combo Marine GPS Navigator

Product Description:
- The HP-33A is a class B AIS transponder for Non-SOLAS vessels such as pleasurecraft,work-boat,fishing boat etc small boat.
- Special design Watching dispaly to monitor Fishing net buoy,friendly ships etc.External Alarm for MOB and Collision-Risk management.

Features:
1.To AIS:
- Radar plotter display and multi-list display.
- Detailed target information display.
- Watch function for fishing net buoy, friendship, etc.
- Visual and audio alarm of collision, SART,MOB, watch target lost, watch target deviation, etc.
- Safety and normal message display.
2.To GPS:
- Multi-display with 2 user-customized modes.
- Store up to 10,00 waypoints, 100 routes and3,000 tracks
- SBAS capability.
- Visual and audio alarm of arrival / Anchor,XTE, speed, trip, odometer, etc.
- Man overboard feature and quick GOTO mark set.

Specifications:
- DISPLAY
- Screen size: 95.04(W) x 53.85(H) mm
- Pixel number: 480 x 272 pixels
- Display mode: Plotter, AIS radar, AIS lists,Highway, Steering, Nav data, Satellite, User display 1, User Display 2
- Memory capacity:3000 ship's track points;10000 marks and waypoints with comments;100 routes,30 waypoints/route
- GPS Alarm: Arrival, Anchor watch,XTE, Speed,SBAS, Time, Trip, Odometer.
- AIS Alarm: Collision, AIS SART, EPIRB, MOB,Lost, Position
- AIS Message: Receive Broadcast/Addressedmassage
- Projection: Mercator projection
- Plot Scales: 0.01nm~320nm
- AIS Radar View Scales: 0.125, 0.25, 0.5,0.75, 1.5, 3, 6, 12, 24 nm

AIS MAINSPEC.Standards:
- IEC 62287-1
- IEC 62287-2
- ITU 1371-3
- IEC61993-2
- IEC 61162-1
- IEC 60945

Frequency:
- CH87--161.975 MHz
- CH88--162.025 MHz
- Channel bandwidth: 25 Khz
- Frequency Stability: ≤2.5 PPM
- Modulation: AIS GMSK
- Data Rate: 38400 bps

AISTRANSMITTER:
- Power output: 2W ± 1.5 Bm
- Power Delay:
- Rise delay ≤ 313 US
- Fall delay ≤ 313 US
- Stray Power: ≤ -36 dBm

AIS RECEIVER:
- Sensitivity: ≤ -107 dBm
- Max Usable Sensitivity: PRT ≤ 20% at – 107dBm
- Channel Rejection Ratio: ≤ - 10 dB
- Adjacent Channel Selectivity: ≥ 70 dB
- Intermodulation Selectivity: ≥ 65 dB
- Blocking: ≥ 85 dB

GPS/SBAS:(Receiver Type)
- GPS: 50 Channels, C/A code
- SBAS: WAAS, EGNOS, MSAS, GAGAN
- Receive Frequency: L1 (1575.42 MHz)
- Time to First Fix:
- Cold start: 32s
- Hot Start: ＜ 1s
- Tracking Velocity: 500m/s Max
- Altitude: 50,000 m Max
- Dynamics: ≤ 4g
- Geodetic Systems: WGS-84 (and others)
- Horizontal position:
- GPS: 2.5 m
- SBAS: 2.0 m
- Velocity: 0.1m/s
- Heading: 0.5 degrees

INTERFACE:
- Port: RS-232C
- GPS Aerial Port: Female TNC Connector
- VHF Aerial Port: Female Type M Connector(Optional)

Output Sentence:
REM1: DTM, GGA, GLL, RMB, RMC, VTG, ZDA
REM2: BWC, DTM, GGA, RMB, RMC, VTG, ZDA
AP: AAM, APB, BOD, BWC, BWR, GLL, VTG, XTE,ZDA
GPS: GGA, GPA, GSV, VTG
AIS: AIVDM, AIVDO, GGA, GSA, GSV, VTG, GLL,RMC

ENVIRONMENT:
- Display unit: - 15 C to + 55 C
- Aerial unit: - 25 C to + 70 C
- Waterproofing:Display unit: IP56;Aerial unit: IPX6

Power Supply: Power Supply: 12 – 24 VDC: 0.24 – 0.12A
Size: 181 mm(W) x 143mm(H) x 83 mm(D)

Package List:
- 1 x 4.3 Inch LCD Class B AIS Transponder Combo
- 1 x Antenna unit HA-017 w/ cable 10M
- 1 x Power cable
- 1 x Standard spare parts and installationmaterials
- 1 x Operator manual
