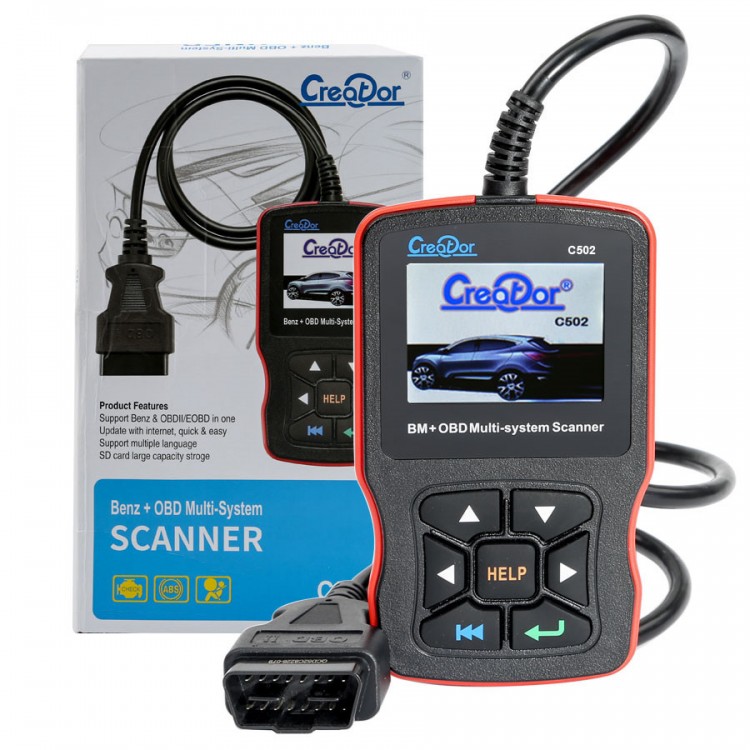

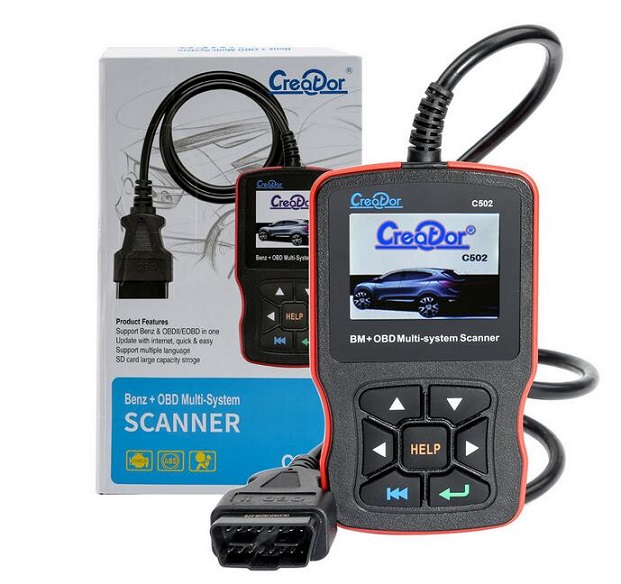

Creator C502 BENZ & OBDII/EOBD Multi-system Car Diagnostic Code Reader Scanner

Creator C502 BENZ & OBDII/EOBD Multi-system Car Diagnostic Code Reader Scanner

Creator C502 BENZ & OBDII/EOBD Multi-system Scanner Supports BNEZ Before 2016 All Models

Creator C502 BENZ & OBDII/EOBD Multi-system Scanner

Creator C502 BENZ software description:
Supports BNEZ before 2016 all models:Include Chassis:117,129,140,156,163,164,166,168,169,170,171,172,176,197,199,202,203,204,205,207,208,209,210,211,212,215,216,217,218,219,220, 221,222,230,231,240,245,246,251,253,292,461,463,X 164,X 204
Functions: Read codes, Erase codes, ECU information

Creator C502 OBDII & EOBD Software Discription:
- Works on all 2001 and later OBDII compliant PETROL European vehicles
- Works on all 2004 and later OBDII compliant DIESEL European vehicles
- Works on all 1996 and later OBDII compliant US and Asian vehicles
- Easily determines the cause of the "Check Engine Light ( MIL)"
- Retrieves generic (P0,P2,P3,and U0) and manufacturer specific (P1,P3,and U1) codes
- Turns off Check Engine Light (MIL),clears codes and resets monitors
- Displays DTC definitions on unit screen
- Views freeze frame data
- Identifies pending codes
- Reads live PCM datastream
- Graph displays live PCM datastream
- Read I/M Readiness Status
- Displays live O2 sensor test data
- Performs modules present test
- Retrieves vehicle information (VIN,CIN and CVN)
- Supports CAN (Controller Area Network) and all other current OBD-II protocols

Creator C502 Specifications:

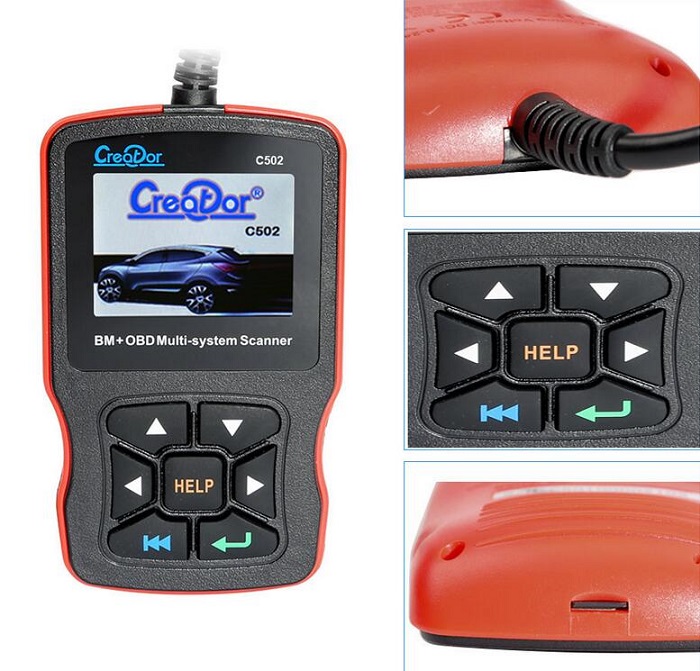

A)Display: Color,320 x 240 pixel display with contrast adjustment
B)Operation Temperature:- 20 ℃~75 ℃
C)Storage Temperature:-40 ℃~120 ℃
D)Power:8V~24V

Product Troubleshooting
Vehicle Linking Error
A communication error occurs if the scan tool fails to communicate with the vehicle's ECU (Engine Control Unit).
You need to do the following to check up:
A)Verify that the ignition is ON;
B)Check if the scan tool's OBD II connector is securely connected to the vehicle's DLC;
C)Verify that the vehicle is OBD2 compliant;
D)Turn the ignition off and wait for about 10 seconds. Turn the
E)Ignition back to on and continue the testing.
F)Verify the control module is not defective

Scan tool doesn't power up:
If the scan tool won't power up or operates incorrectly in any other way, you need to do the following to check up:
A.Check if the scan tool's OBD II connector is securely connected to the vehicle's DLC;
B.Check if the DLC pins are bent or broken.Clean the DLC pins if necessary.
C.Check vehicle battery to make sure it is still good with at least 8.0 volts.

Package List:
- 1 x C502 Machine
- 1 x User Manual
