Night-Vision Monocular Professional Infrared Hunting Telescope Digital Night Vision Monocular

Night-Vision Monocular Professional Infrared Hunting Telescope Digital Night Vision Monocular

Description: The night vision monocular can be used in complete darkness or low light situation.It achieves 5X optical zoom and 8X digital zoom.It is a perfect optical device to enhance human's visual senses.

Basic Parameters:
- Name:Digital Night Vision Monocular
- Model:P1-0540
- Field of View: 5 digree
- Magnification:1-8;5digital zoom)
- Dimension of Objectives:φ40mm
- FOV:5°x3.75°
- Ocular Adjustable Range:±0.6
- Observing Distance(Low Light Environment):2m～∞
- Observing Distance(Dark Environment):～200m
- Measurement(L*W*H)):200x86x56 mm
- Weight:400g

Power:
- Operating Voltage:3.7V DC (IDR14500,can charge lithium battery)
- Replaceable Battery:Lithium-ion rechargeable battery
- Charging Source:5.0V/1000mA Adapter

Features:
- The night vision monocular which can be used in complete darkness or low light situation.The viewing distance (full dark): Infinity;The viewing distance (low light): 200 meters
- USB,AV OUT and DC IN sockets are equipped.

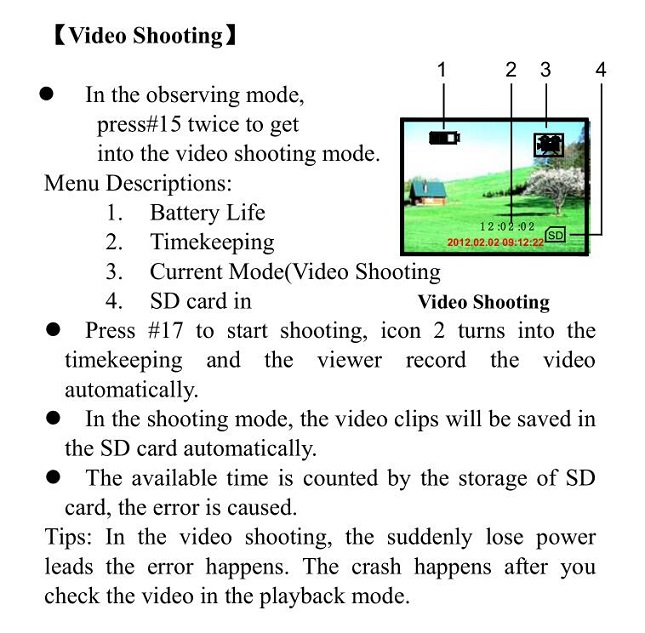

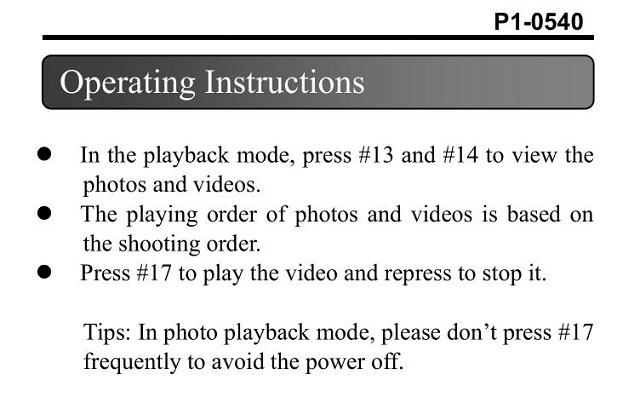

- It could be used during the day or at night,owning the photo shooting,video shooting,playback functions.It achieves 5X optical zoom and 8X digital zoom.
- It is the perfect optical device to enhance human's visual senses.

Operating Hints:
- Night Vision Monocular is the optical instrument to obtain the images of objects under the low light and night situation.
- Infrared Illuminator is equipped.It applies to use in the full dark environment.

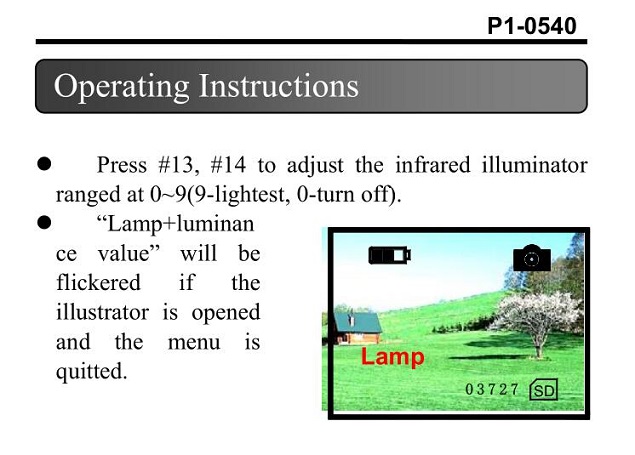

- Turn the infrared illuminator on when the monocular works in the dark.Adjusting the brightness of infrared illuminator regarding to the distance of objects.Low level illuminance transducer is equipped also.If there is any light resource existed,the infrared illuminator need not to be turned on,adjusting the focal length of objective lens only.
- Up to 1.5 hour runtime without the use of infrared illuminator.Up to 1 hour with IR illuminator on.

Battery Installation:
- Unscrew the battery cover and insert the battery with negative electrodes bottomed (using a coin in the groove if needed).The battery is installed correctly if the screen could be lighten up after you screw the cover back then press the Power button,if not,please double check the above steps until the viewer works normally.
- If the monocular doesn't work,please return it for repair after you reconfirm the battery is in good condition and the cover has been screwed down well.

Announcements: The model of battery shall conform to the requirements.Ensure the electric quantity is full enough.Note the positive and negative electrodes.

Scenery Observation:

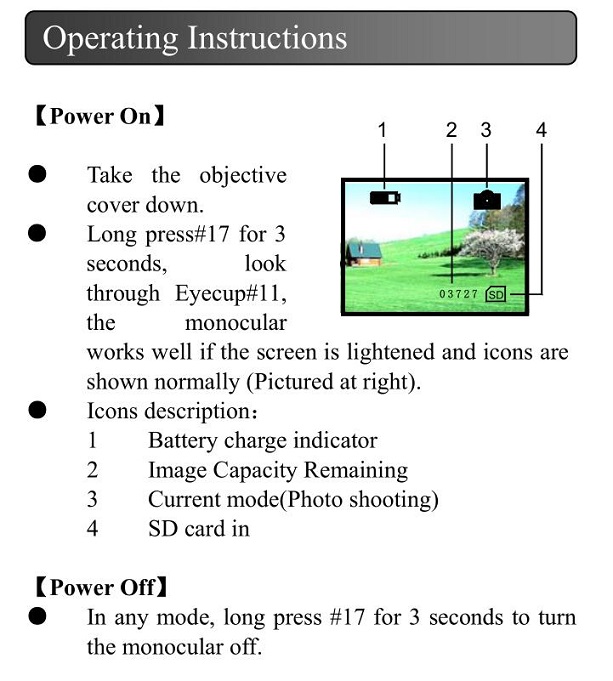

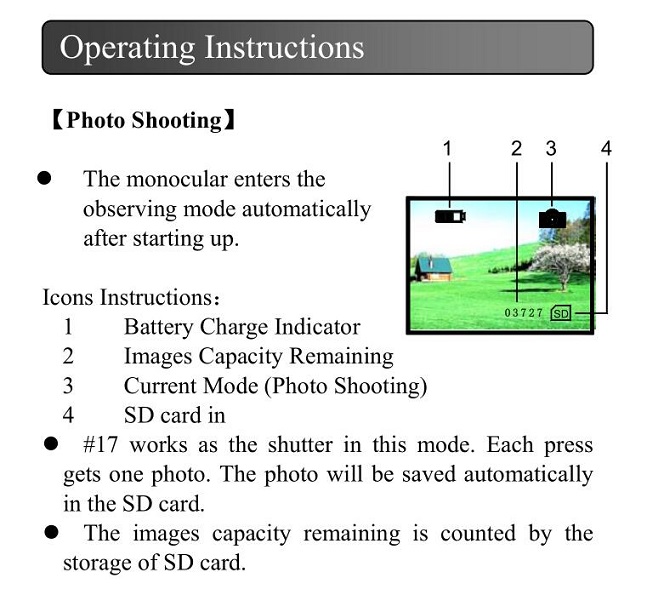

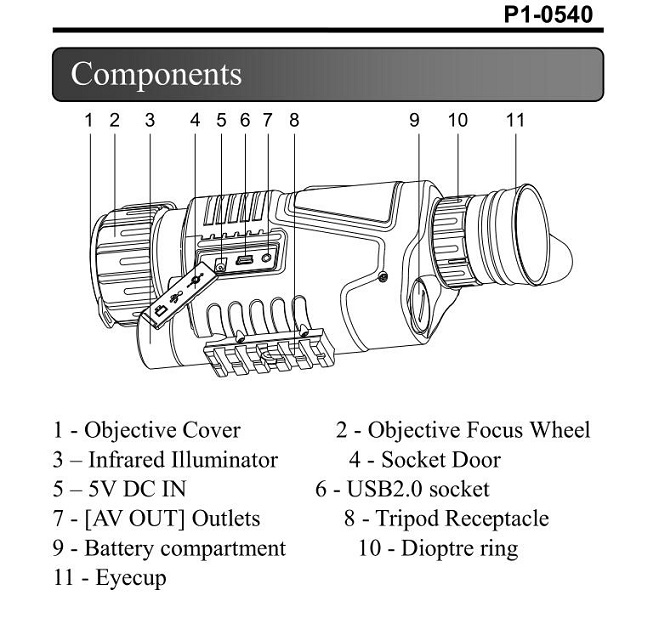

- Remove the objective cover,in the observing (photo shooting) mode,aim the objects which need to be observed,look at the screen from Eyecup#11.

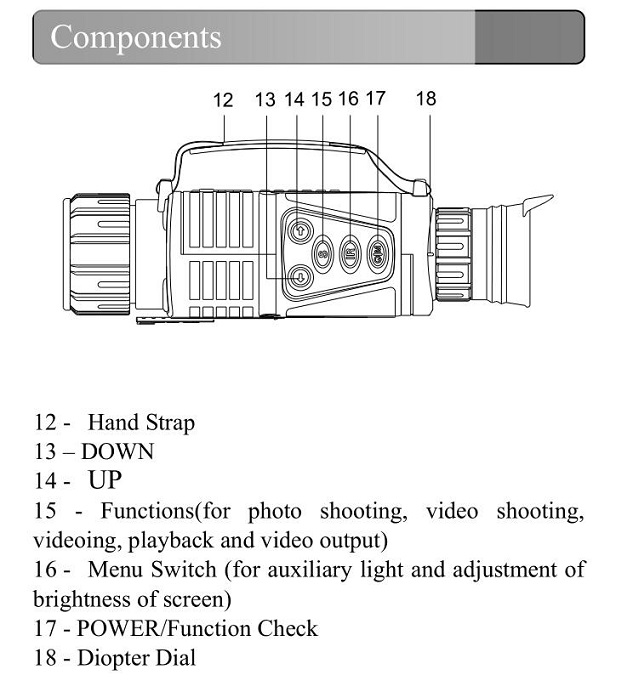

1.Adjust the diopter ring#10 to get the sharp images.
2.Adjust the objective focus wheel to get the sharpest image.
- Automatic fine-tuning control is operated by viewer according to the average brightness of scenery centrally.
- Digital zoom will be implemented by pressing #14 and #13 ranged at 1X to 8X.
- If the light resource is enough, turn the auxiliary light off to save the power.

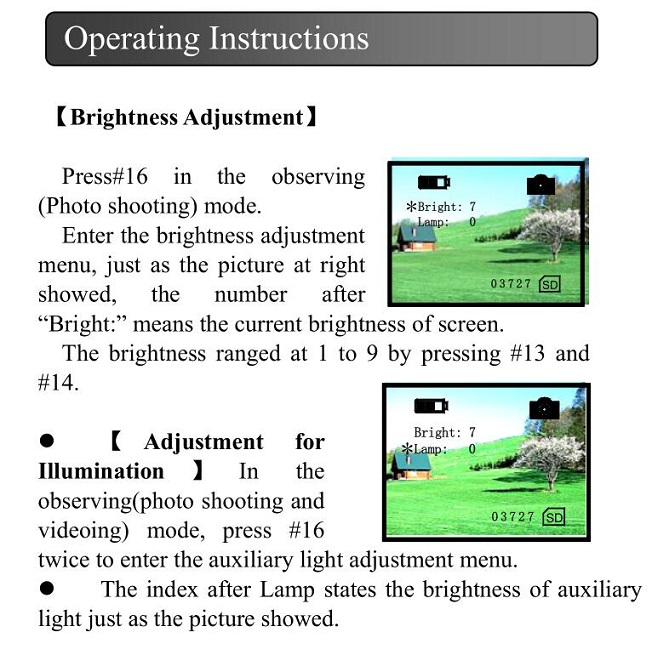

- On the contrary,turn the auxiliary light on and then adjust the brightness to make the observation easily.

Announcements: Don't block the auxiliary light.

Announcements: In any mode above,the menu will be disappeared if there is not any operation within 4 seconds.

Monitor Connection:Connect the monitor to video output interface.Long press #15 for 3 seconds to switch the display on the screen of external monitor.

PCs Connection:
- The viewer is equipped with USB 2.0 interface.
- PC would identify the monocular automatically and read the content in the SD card.
- The battery would be charged by connection of PCs.
- The data transmission by USB connection works on the premise that the viewer must be equipped with a battery or connected with an external power supply.

Announcements: The data transfers improperly if there aren't any power supplies with the monocular.The battery is in charging state when the monocular connects with PCs.

Auto Power Off:
- The viewer will be turned off if there is not any operation within 3 minutes.
- The viewer won't be turned off automatically in the video shooting and playback mode.

Battery Selection: High capacity chargeable lithium-ion  battery,750mAh,3.7V.Please ensure the battery would be charged for 10 hours in the first time to make it works best.

External Power:
- The monocular is equipped with external power.
- Plug it the DC IN 5V socket.
- The monocular would work continuously and won't be turned off automatically.
- The battery would be charged when the monocular connects with external power.

Announcements: Standard mobile charging source can't be used for this monocular.Battery would be charged also when the monocular connects with PC.

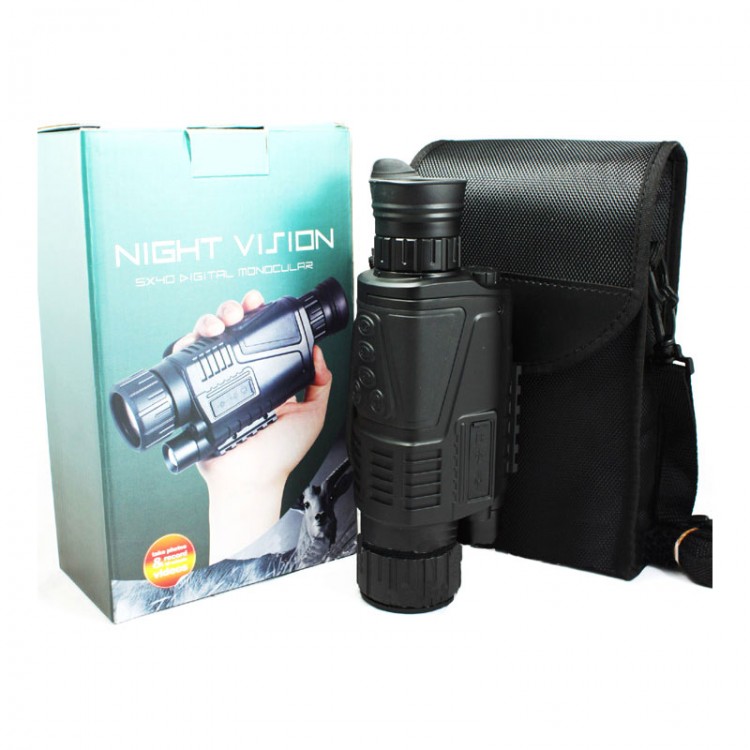

Package List:
- 1 x Infrared Digital Video Night Vision Telescope
- 1 x AV Video Cable
- 1 x USB Cable
- 1 x Storage Bag
- 1 x Charger
- 1 x English User Manual
- 1 x Wrist Strap
- 1 x Lens Cloth
