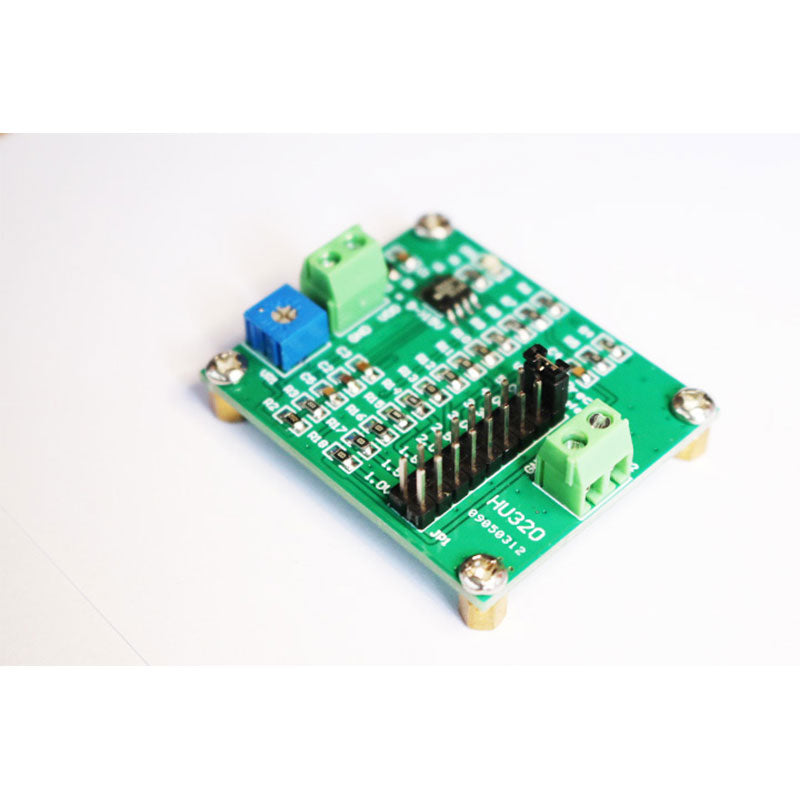

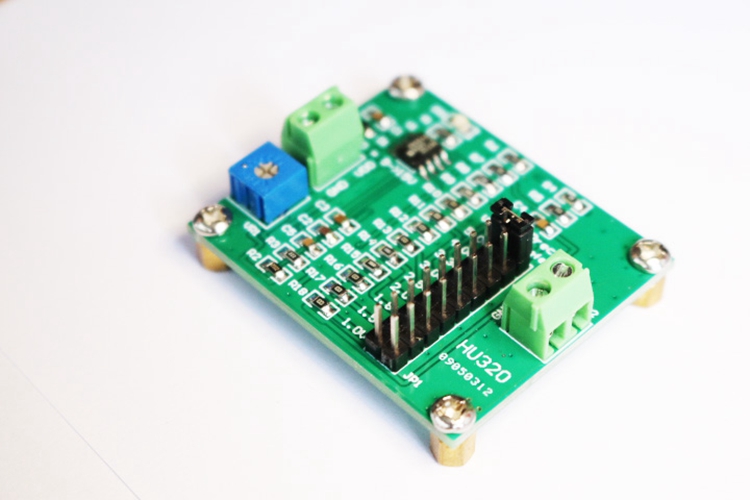

HU320 5V Voltage Reference Module High Quality Radio Accessory Support Multiple Voltage Output

HU320 5V Voltage Reference Module High Quality Radio Accessory Support Multiple Voltage Output

Description:
- The HU320 voltage reference module can select multiple voltage outputs through a selection switch (5.0V, 4.0V, 3.3V, 3.0V, 2.5V, 2.0V, 1.8V, 1.5V, 1.0V).

Specification:
- Excellent temperature stability: 10ppm/℃ max (-40℃ to +85℃)
- Low noise: 10uVpp max (0.1Hz to 10Hz)
- Excellent line regulation: 0.01%/V max
- Working voltage: 9 ~ 15V
- Working current: < 20mA
- Size: 45 x 38mm

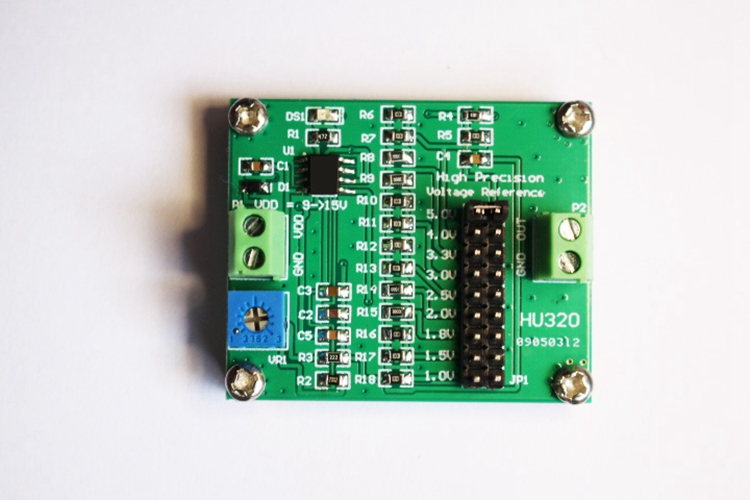

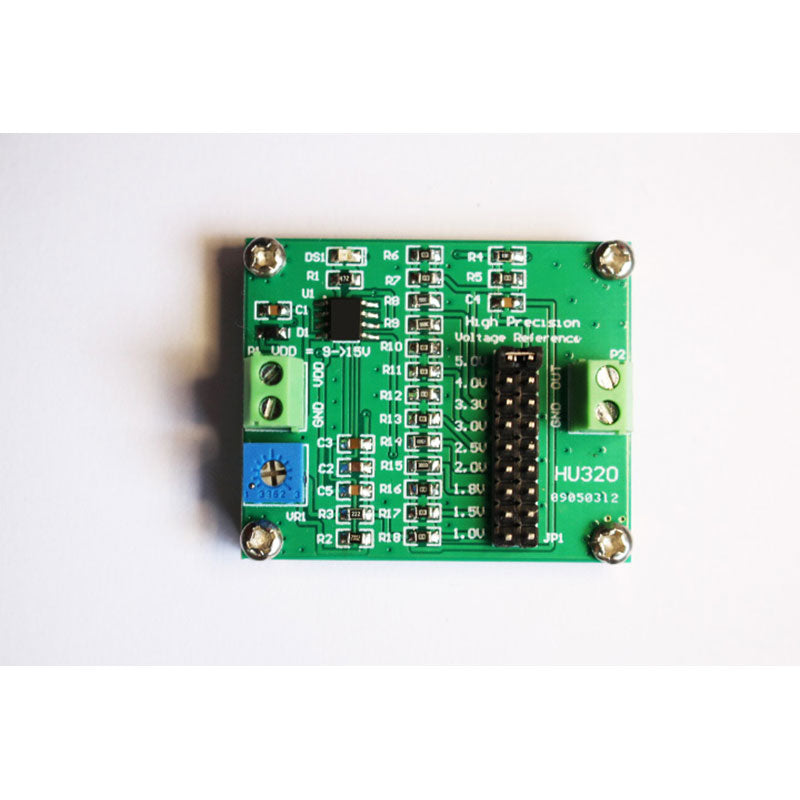

Interface description:
- P1 interface (power supply):
  VDD: positive power supply
  GND: negative power supply
- P2 interface (output voltage):
  OUT: output reference voltage
  GND: negative power supply
- JP1: select the output voltage
- VR1 potentiometer: corrected output voltage (factory calibrated)

Package Included:
- 1 x Voltage Reference Module
