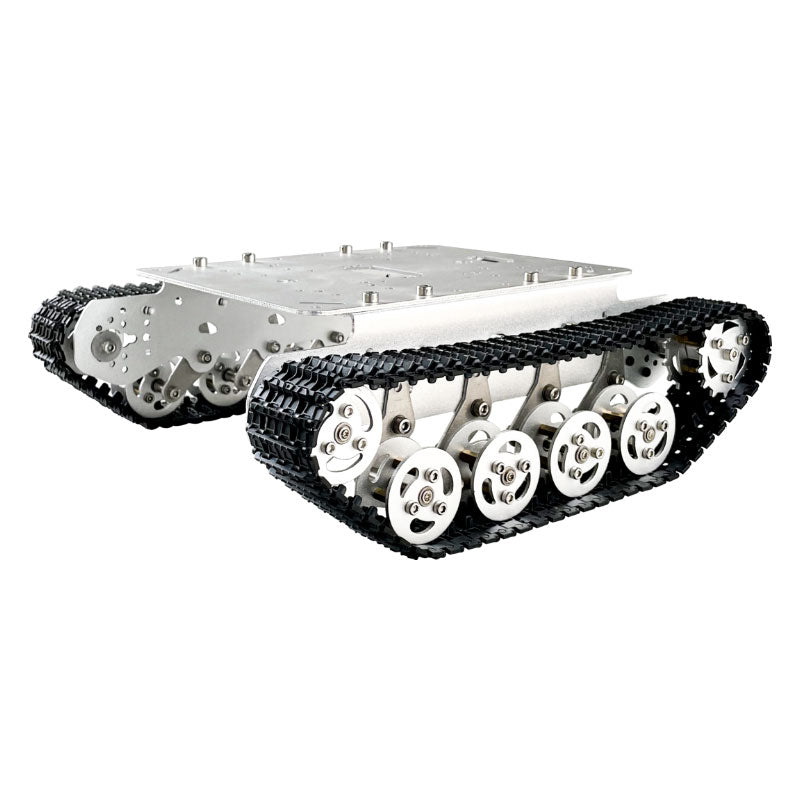

TS100 UNO R3 Electronic Control Development Kit Tracked Mobile Tank Chassis Opensource DIY Robotic Tank with 8KG Load Capacity

TS100 UNO R3 Electronic Control Development Kit Tracked Mobile Tank Chassis Opensource DIY Robotic Tank with 8KG Load Capacity

Precaution:
- This product is an experimental teaching model for students and cannot be used for civilian or industrial purposes.
- It is not assembled by default, providing assembly instructions.
- The chassis color is available in black or silver, with silver being the default color. If you need black, please leave a note or contact us before payment.
- The UNOR3 electronic control kit is shipped with UNO Maker's improved motherboard by default.
- UNOR3 electronic control kit defaults to controller control for PS2.

Specification:
- Model: TS100
- Product size: 270 x 255 x 90mm
- Track material: plastic double hole track
- Track width: 40mm
- Body material: aluminum alloy sandblasting oxidation
- Top plate: without
- Running speed: 0 - 0.7m/s
- Ground clearance: 40mm
- shock absorption method: 8 sets of independent suspension shock absorption
- Load capacity: about 8kg
- Vertical obstacle crossing height: ≤50mm
- Motor model: HM-GM-25-370 12V330
- Body weight: about 1.1kg
- Note: The load capacity of the tracked vehicle is a range value. Choosing motors with different torques will result in different loads, and the lower the speed, the greater the load capacity.

Package Included:
- 1 x Chassis
- 2 x Driving Wheels
- 4 x Copper Columns
- 1 x Acrylic Plate
- 2 x Load Bearing Wheels
- 2 x Tracks (48 sections for one track)
- 2 x 12V330 25 Motors
