| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $21.91 | $21.47 | $20.79 | $19.90 | Contact US |

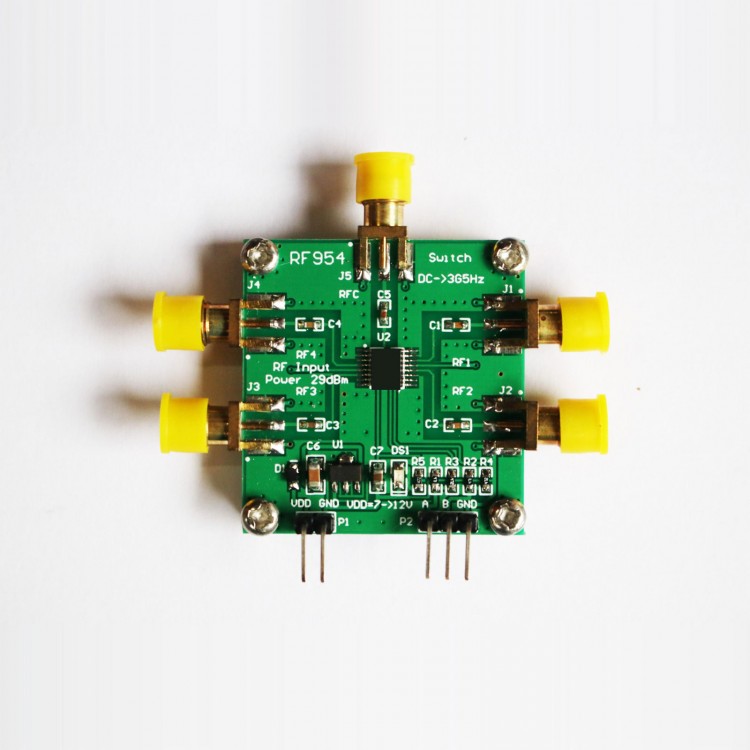

RF954 DC-3.5GHz 7-12V 4-IN 1-OUT RF Switch Module High Quality RF Accessory with SMA Connector
Specification:
- RF input frequency range: DC-3.5GHz
- Working voltage; 7 - 12V
- Working current: < 50mA
- Product size: 38 x 37mm
- Net weight: 20g
P1 Interface (power supply):
- VDD: power supply positive (7 - 12V)
- GND: power supply negative
P2 Interface (control signal):
- A: control signal (3 - 5V)
- B: control signal (3 - 5V)
- GND: power supply negative
Others:
- J1 interface: input signal (RP SMA KE KHD)
- J2 interface: input signal (RP SMA KE KHD)
- J3 interface: input signal (RP SMA KE KHD)
- J4 interface: input signal (RP SMA KE KHD)
- J5 interface: output signal (RP SMA KE KHD)
Package Included:
- 1 x RF Switch Module
