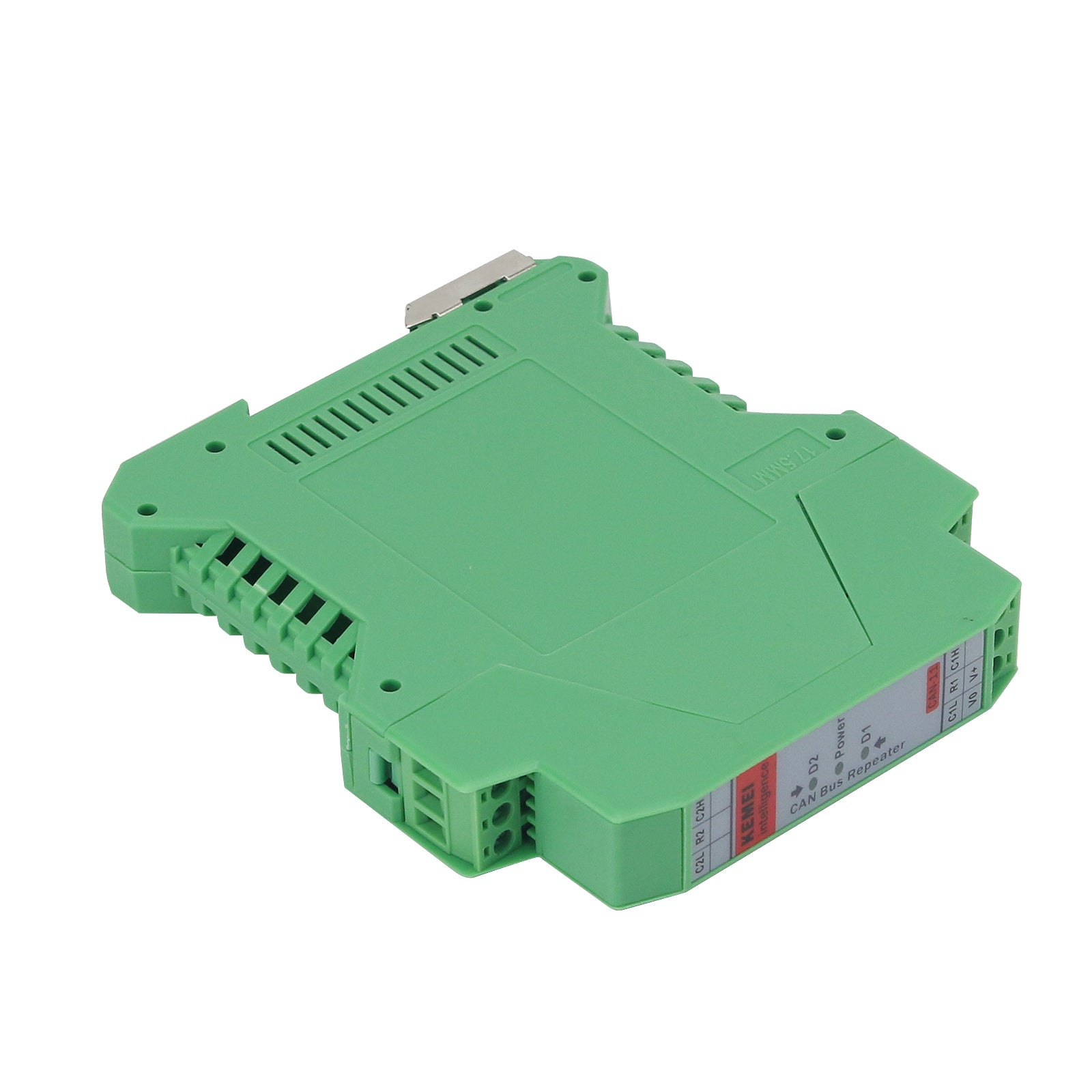

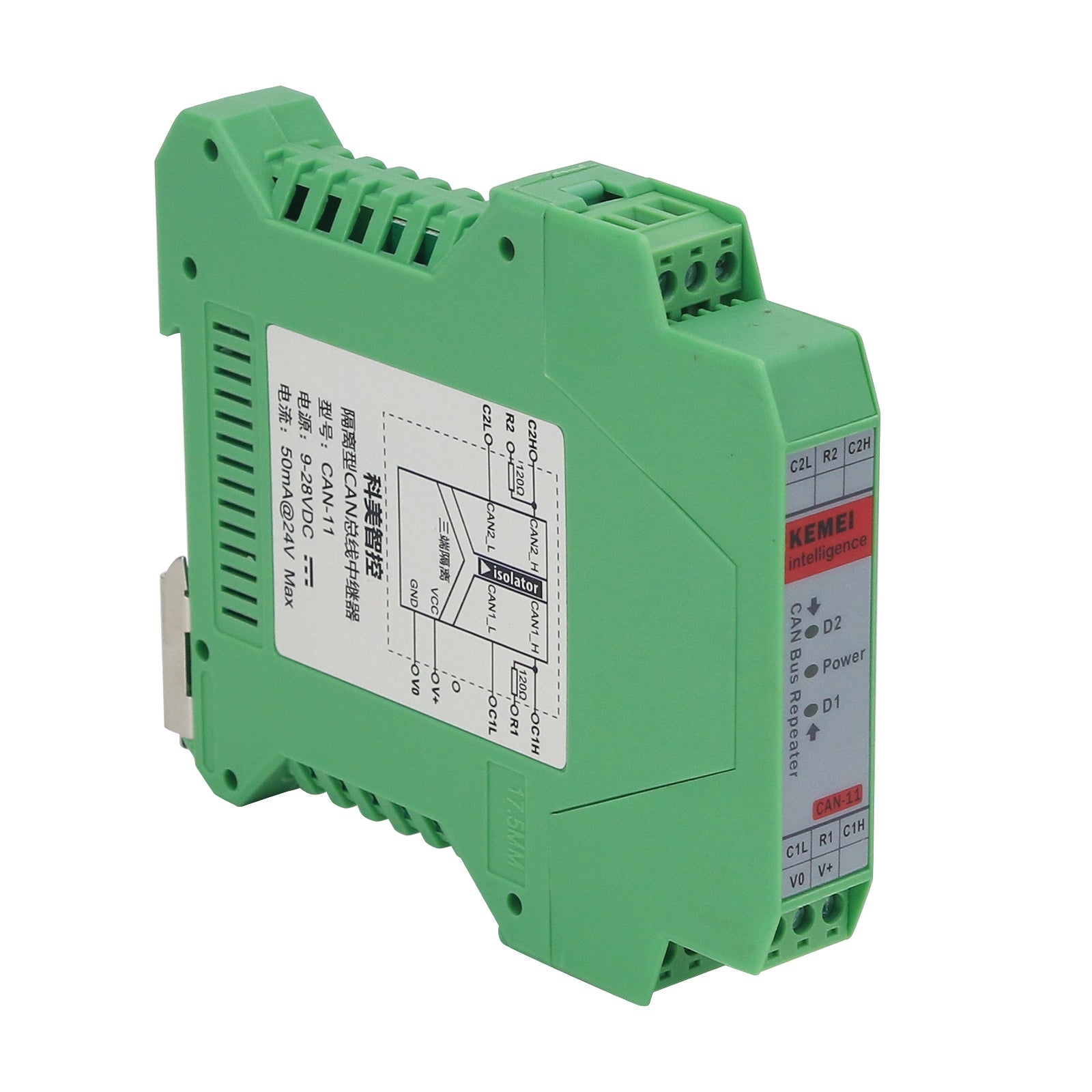

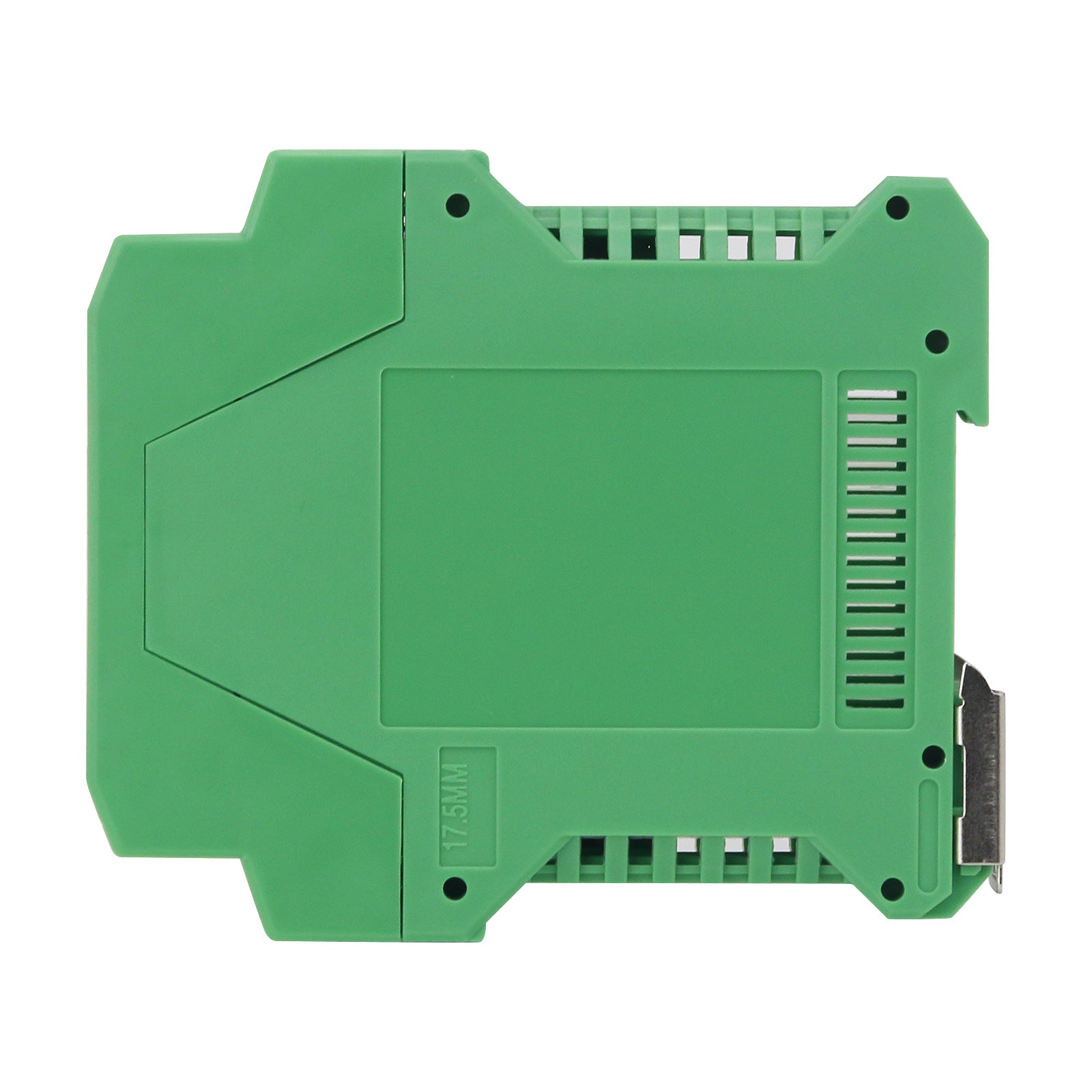

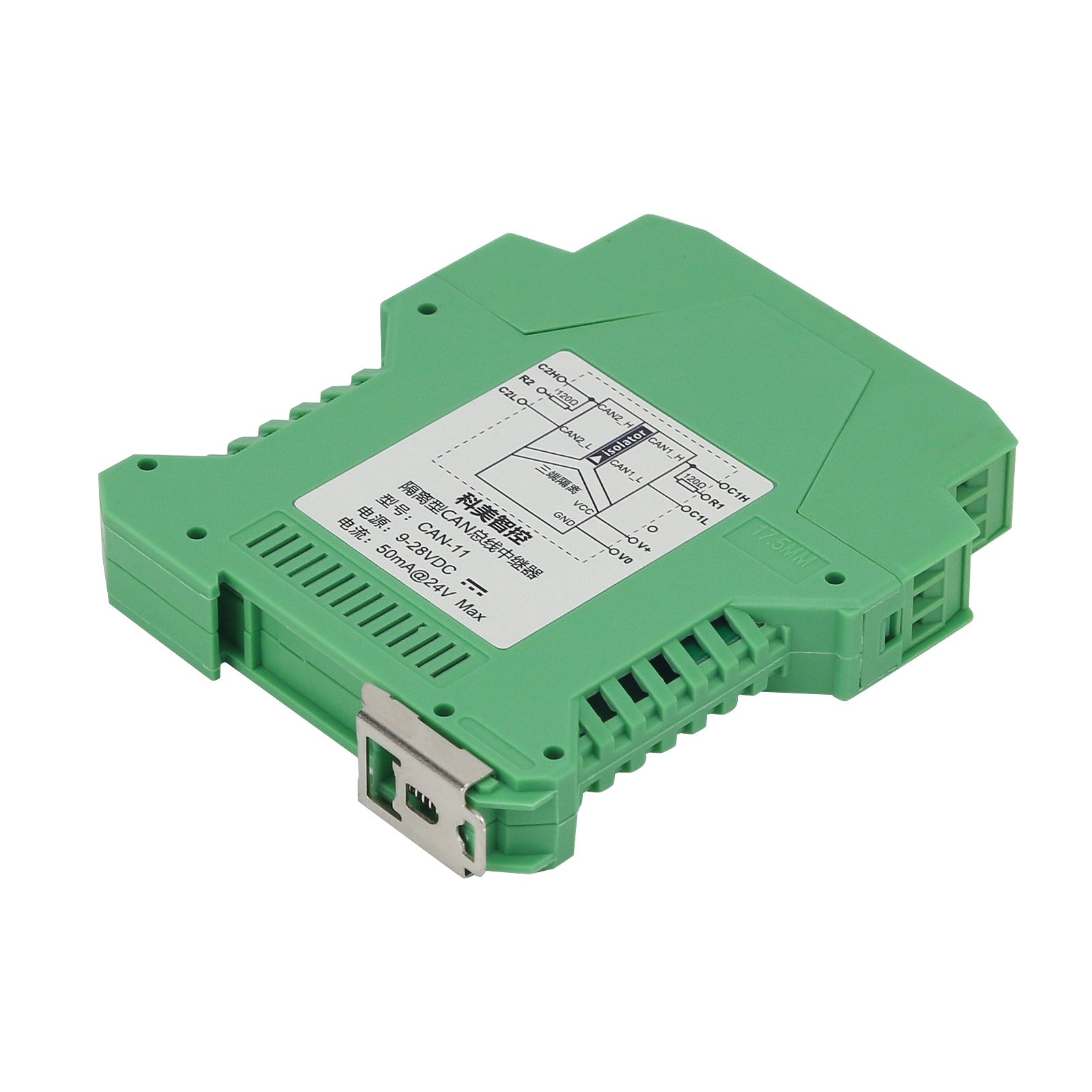

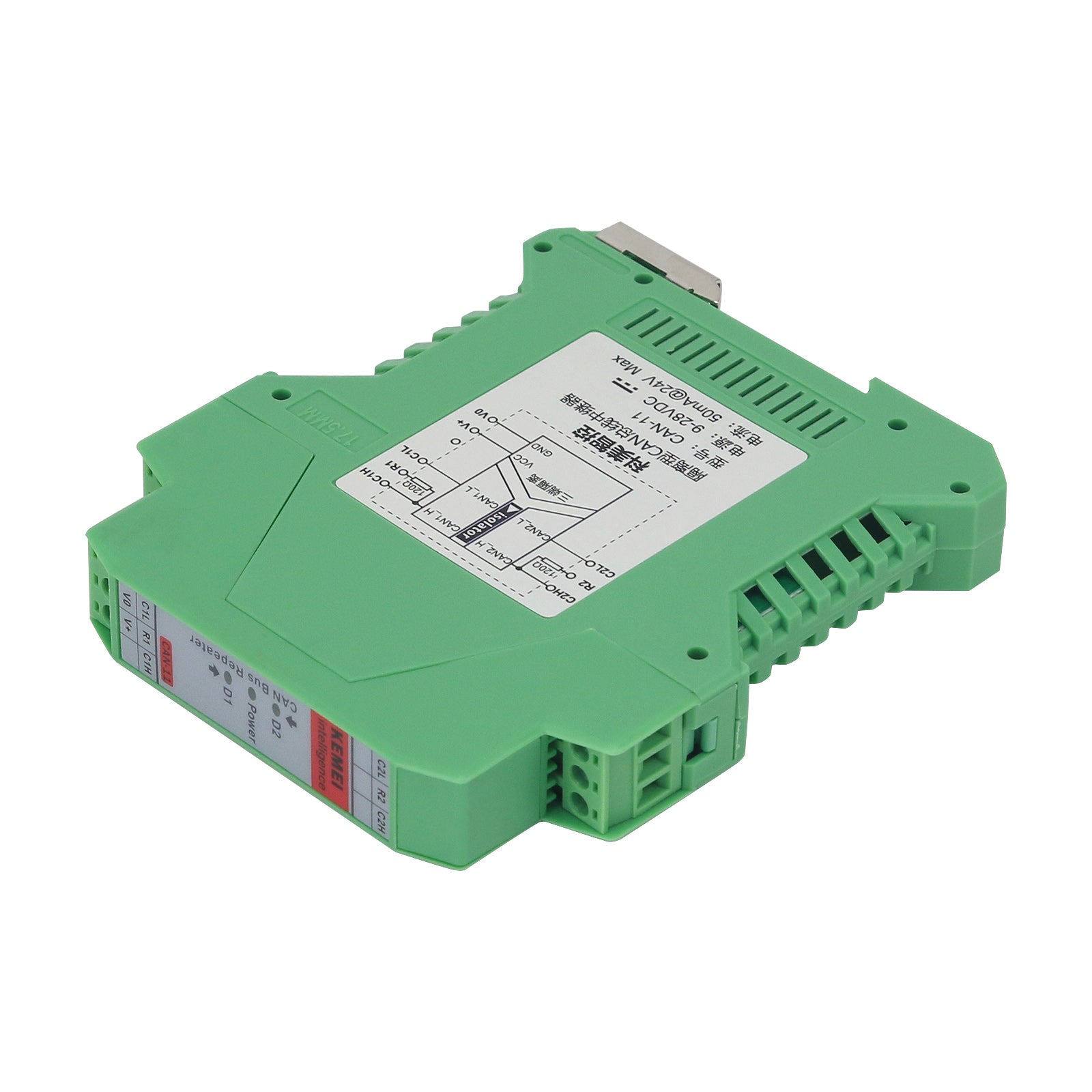

CAN-11 Industrial-grade CAN Bus Repeater CAN Bus Isolator DIN Rail Mounting with 100Mbps Isolation

CAN-11 Industrial-grade CAN Bus Repeater CAN Bus Isolator DIN Rail Mounting with 100Mbps Isolation

Description:
CAN-11 is a highly cost-effective industrial CAN bus isolated repeater, which is widely used in automotive electronics, industrial automatic control equipment, security system, and instruments. It provides 1.5KV galvanic isolation, bus bidirectional arbitration, baud rate adaptive design, and protocol transparency. It is plug and play, so as to easily build a stable and safe CAN bus network and save a lot of space and time.

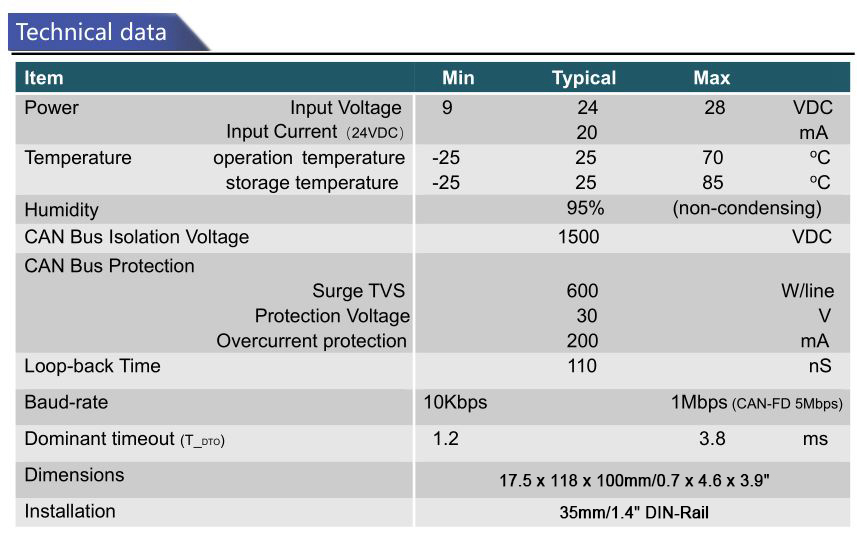

Features:
* 35mm/1.4" DIN rail mounting, 9-28VDC wide voltage supply
* Support CAN2.0A/B (latest CAN-FD is optional)
* 1.5KV galvanic isolation with surge protection
* High-quality 3-way isolation between all interfaces
* 5K-1Mbps (optional CAN-FD 5Mbps) self-adapting baud-rate; loop-back time as low as 110ns

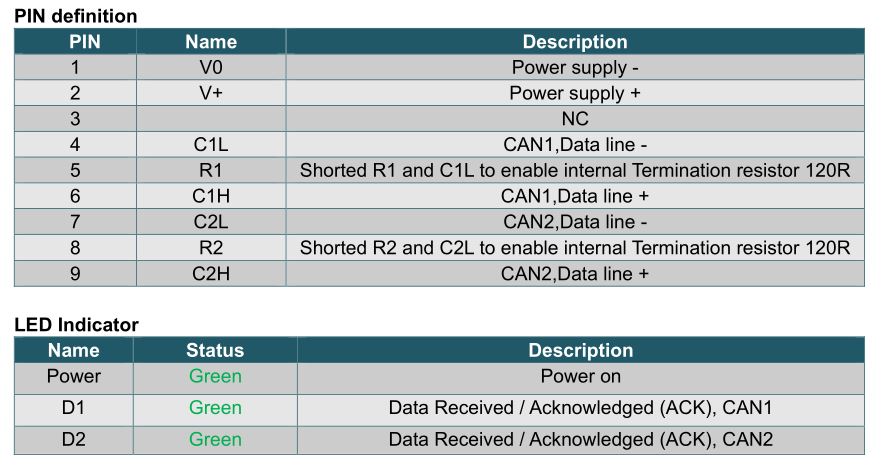

* Built-in bus arbitration logic, with LED Indicators for data transmission

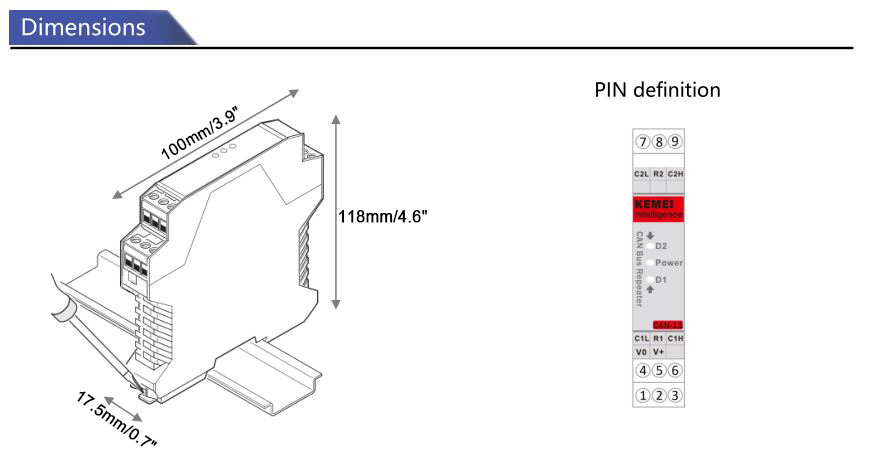

* Space-saving slim 17.5mm/0.7" device
* All connections can be plugged in using a screw terminal block
* 110 nodes on bus

Package Included:
* 1 x CAN Bus Repeater
* 1 x 3P Terminal Block
