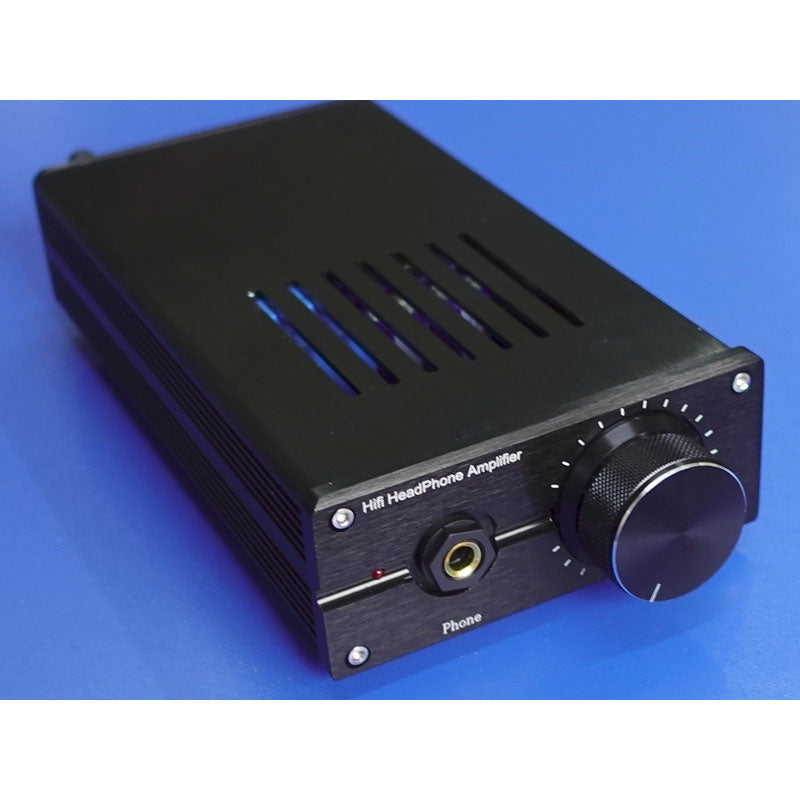

L4398 DSD Integrated CS4398 Decoding Headphone Amplifier Host without Sub Card Hard Decoding DSD Master Band

L4398 DSD Integrated CS4398 Decoding Headphone Amplifier Host without Sub Card Hard Decoding DSD Master Band

Parameter:

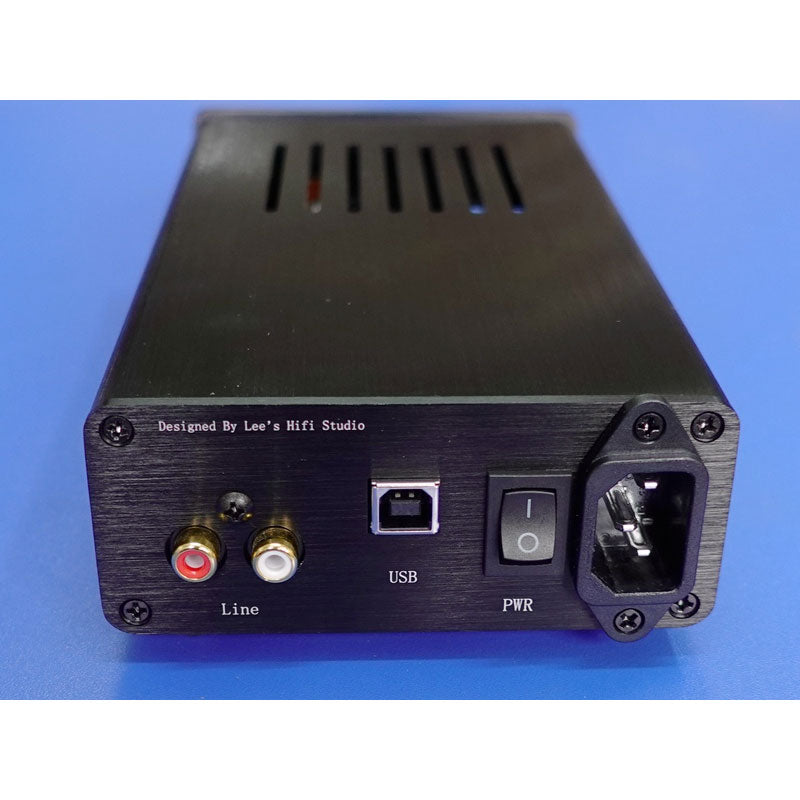

- Input interface: USB square port
- Input format: PCM 24-192K   DSD64, DSD128
- Line interface: RCA stereo
- THD+N: -107dB
- S/N: 112dB
- Line output level: 2.2 V vppm
- Line output impedance: <100 ohm
- Amplifier output power: 550mW/600ohm; 280mW/300ohm; 170mW/600ohm
- Amplifier frequency range: 10Hz-20kHz (-1dB)
- Headphone amplifier distortion: 0.02% at 1 kHz Vppm=20V (90% power output)
- Headphone amplifier output noise level: -88dB
- Headphone amplifier output impedance: 10 ohm
- Average power consumption: AC220V<10W.
- Size: 118 x 52 x 205mm
- Weight: 1.8 kg

Features:
- Adopt CS4398 decoding chip and using MCU to dynamically optimize 24-192KPCM and DSD.
- Compatible with Italian digital interface, support PCM's ASIO, for Wasabi source code and DSD bus output.
- LPF uses AD712 operational amplifier.

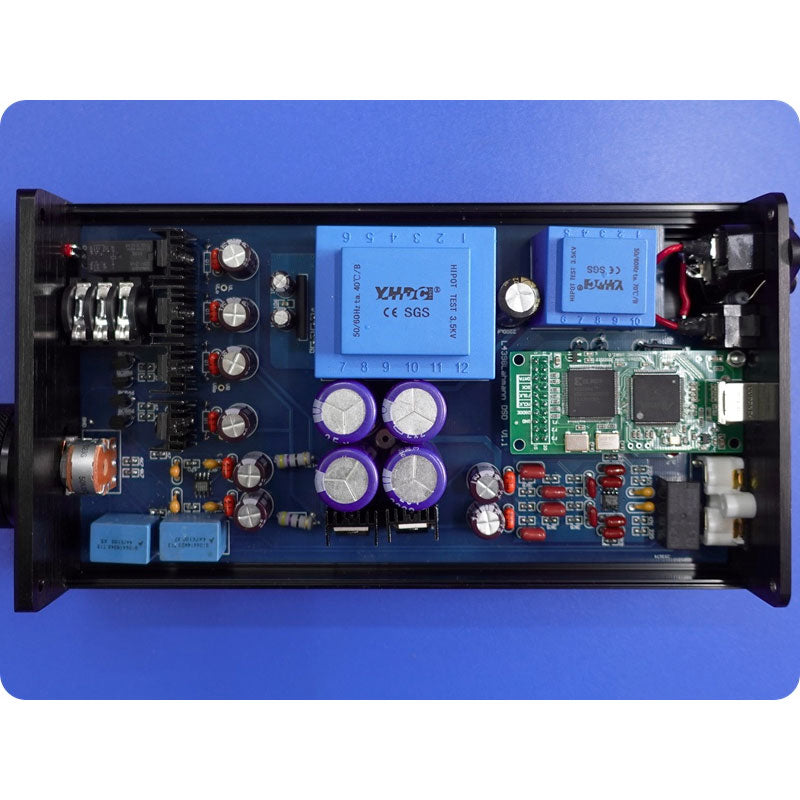

- Dual transformer output, three independent power supply, strictly independent power supply for digital, DAC analog, and low-pass parts.
- The core part of CS4398 has been optimized in terms of power supply, software, low-pass filtering, wiring, etc.
- Using CS4398DSD bus to transmit and hard decode DSD audio.
- It Integrated a complete Lehman headphone amplifier circuit and equipped with headphone protection function.
- The driver used in this machine and foobar2000 with all plug-ins are shown in the following software package: https://pan.baidu.com/s/18nc5Bdu9wjlgGda6jCiU-A; password: 8888

Package Included:
- 1 x Host
- 1 x Power Cable
