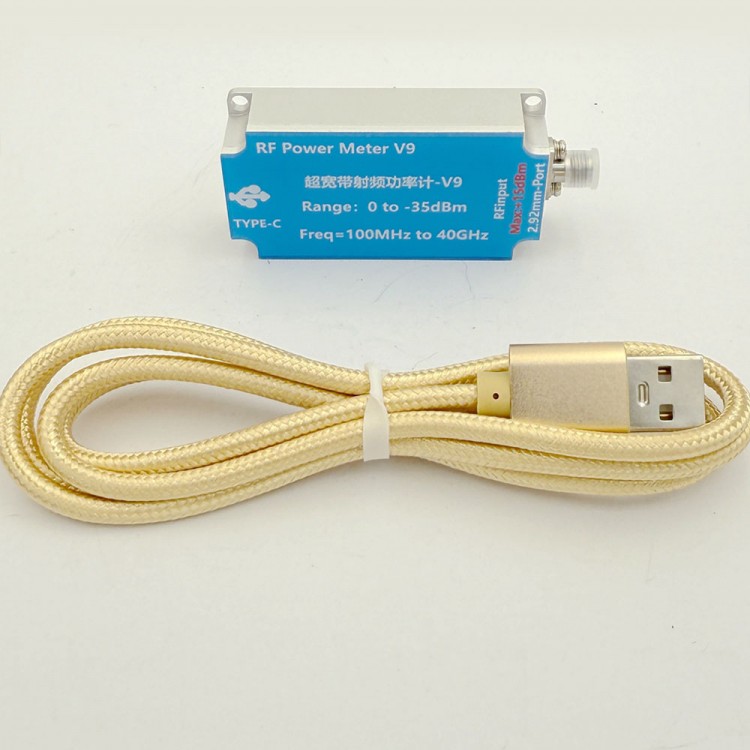

V9 100MHz - 40GHz USB Ultra-wideband RF Power Meter Upper Computer High Speed RMS Power Meter with Type-C Cable
Description:

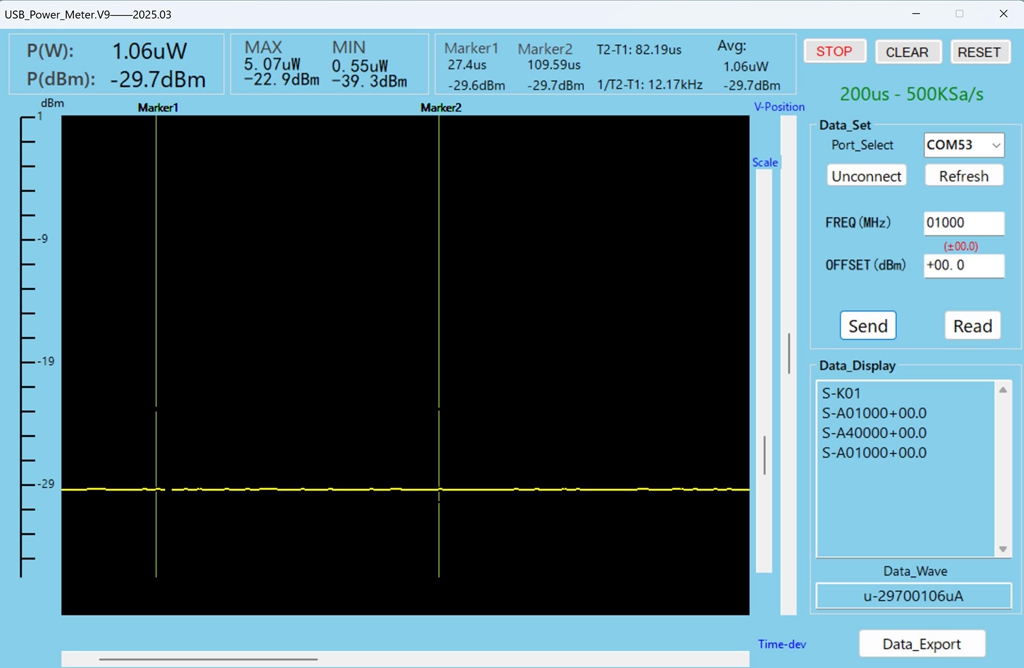

- The RF-Power-Meter-V9.0 series is a high-performance, low-cost, portable USB simple RF power meter. Equipped with 5V power supply and data communication via USB. Easy to use, compact in size, convenient to carry, stable in performance, high accuracy, customizable bias, wide dynamic range, and fast measurement speed. The software that comes with this power meter allows users to configure the power meter on their PC and makes data recording and sharing simple.
Advantages:
- Support multiple high-speed dynamic data acquisition, up to 500kbps (2uS).
- Supports up to 40GHz RF signal acquisition function.
- Equipped with 2 MARK cursor functions for easy measurement of modulation pulse width.
- Automatic calculation of maximum and minimum values function.
- Maximum storage depth of 500 points.
- Support pause, data saving, and export functions.
Applications:
- Calibration of RF instruments.
- Detection and maintenance of RF equipment.
- Measurement of standing wave ratio in RF circuits (with the addition of a feedback bridge).
- Measurement of RF circuit return loss.
- Interference detection between wireless communication devices.
- RSSI (Received Signal Strength Indicator) and transmit power level detection.
- Performance evaluation of step attenuator.
- Measurement of amplifier gain and network attenuation.
- Measurement of forward power and reflected power in directional couplers.
- Power measurement of GSM signals using GMSK modulation.
Specification:
- Power measurement range: -35 ~ +0dBm
- Power measurement resolution: ±0.1dBm
- Frequency measurement range: 100M ~ 40GHz
- Input impedance: 50ohms
- Dynamic range: 35dB
- Working voltage: 5V DC (power supply through Type-C cable)
- Charging current: 100mA

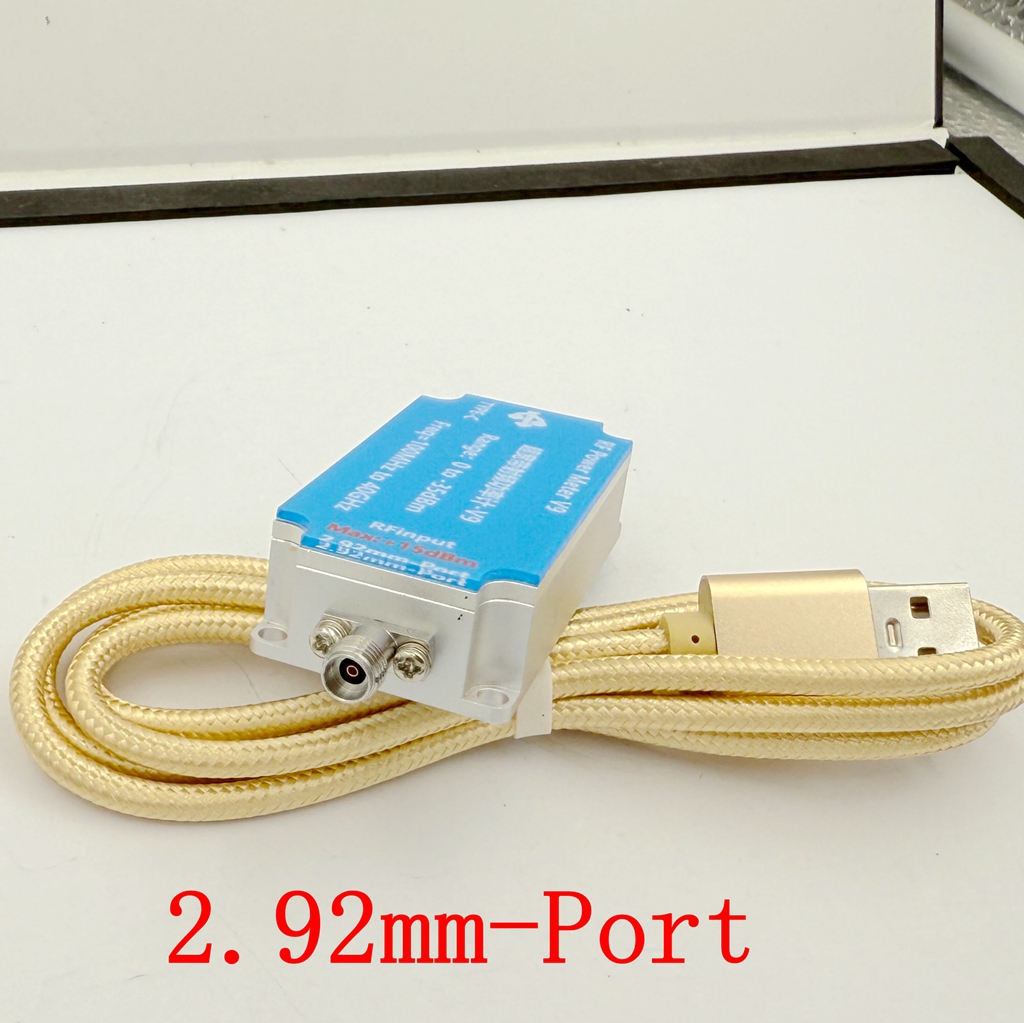

- Interface: 2.92mm
- Product size: 6 x 3 x 1.4cm

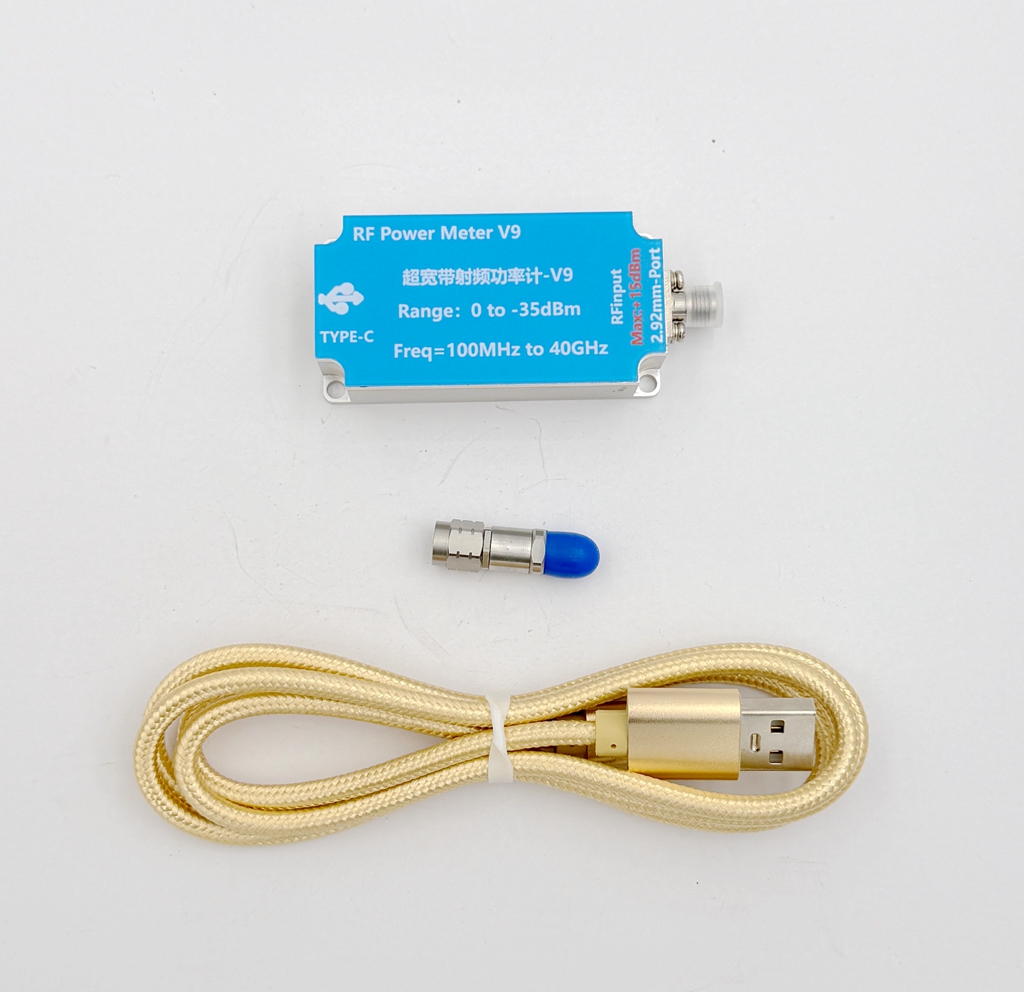

Package Included:
- 1 x RF Power Meter
- 1 x Type-C Cable
- 1 x 2.92mm Male to 3.5mm Female Adapter
