XIAO nRF52840 & Wio-SX1262 Kit Micro-controller Development Board 862-930MHz LoRa for Meshtastic

XIAO nRF52840 & Wio-SX1262 Kit Micro-controller Development Board 862-930MHz LoRa for Meshtastic

Description:
- This kit combines the XIAO nRF52840 and Wio-SX1262, supporting for BLE5.0, Thread, Zigbee and LoRa (862-930MHz), and operates with low power consumption. It can be applied in various fields for Meshtastic, sensor networks, environmental monitoring, asset tracking, education, and innovation.

Features:
- Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, support for Arduino / CircuitPython / Micropython.
- Powerful LoRa Performance: Long-range LoRa on Semtech SX1262, supports 868/915 MHz bands.
- Dual-core communication: It supports both Bluetooth and LoRa dual modes, enabling cross-domain interconnection.
- With dimensions of only 8mm x 22mm x 23mm, it features an integrated antenna design.

Specification:
- XIAO nRF52840:
  MCU: for Nordic nRF52840
  Core: for ARM Cortex-M4 with FPU, up to 64MHz
- Wio-SX1262:
  LoRa module: for Semtech SX1262
  Frequency: 862~930MHz
- Wireless: Bluetooth 5.0 / NFC
- Operating temperature: -40°C ~ 65°C
- Dimensions: 21 x 17.8mm

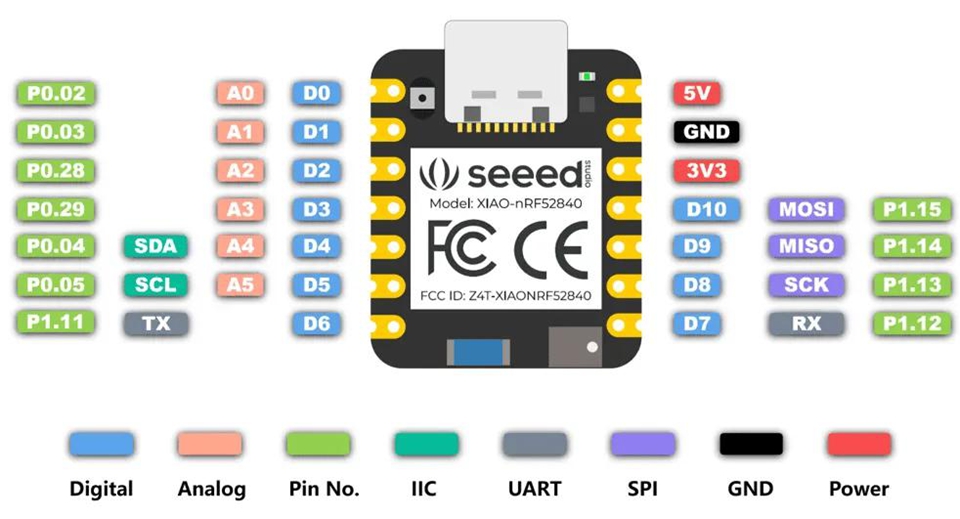

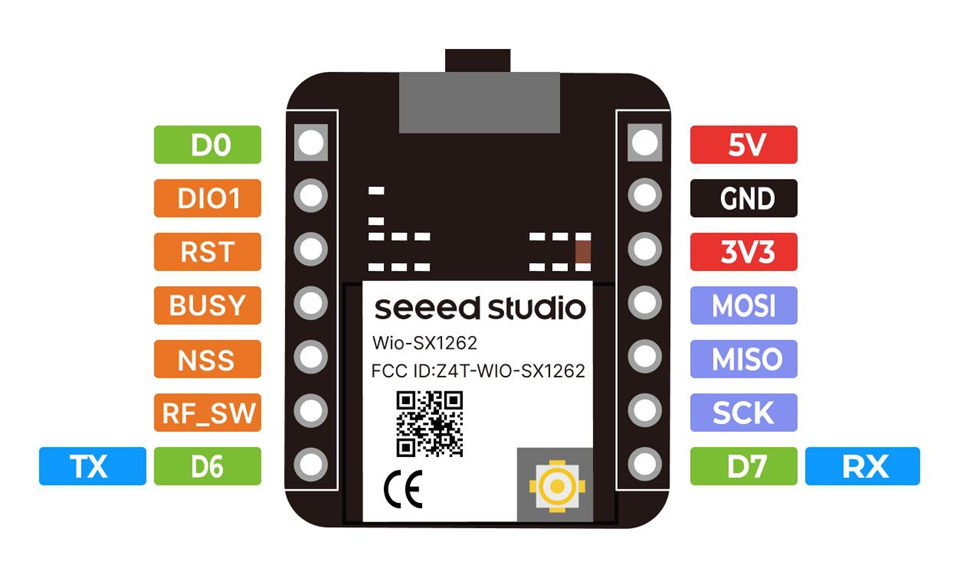

Interface:
- XIAO nRF52840:
  1 x UART, 1 x I2C, 1 x SPI (connects to SX1262)
  1 x NFC, 1 x SWD, 11 x GPIO (PWM)
  6 x ADC
- Wio-SX1262: 1x SPI (connects to XIAO nRF52840)

Power:
- Input voltage: 5V for Type-C; 4.2V for Battery (BAT)
- Battery charging current: 50mA / 100mA
- Standby power consumption: <5µA

Package Included:
- 1 x XIAO nRF52840 & Wio-SX1262 Kit
