2PCS Photosensitive Relay Module Photoresistor Sensor Module Light Control Switch Light Detection Switch 5V 12V

2PCS Photosensitive Relay Module Photoresistor Sensor Module Light Control Switch Light Detection Switch 5V 12V

Product Details

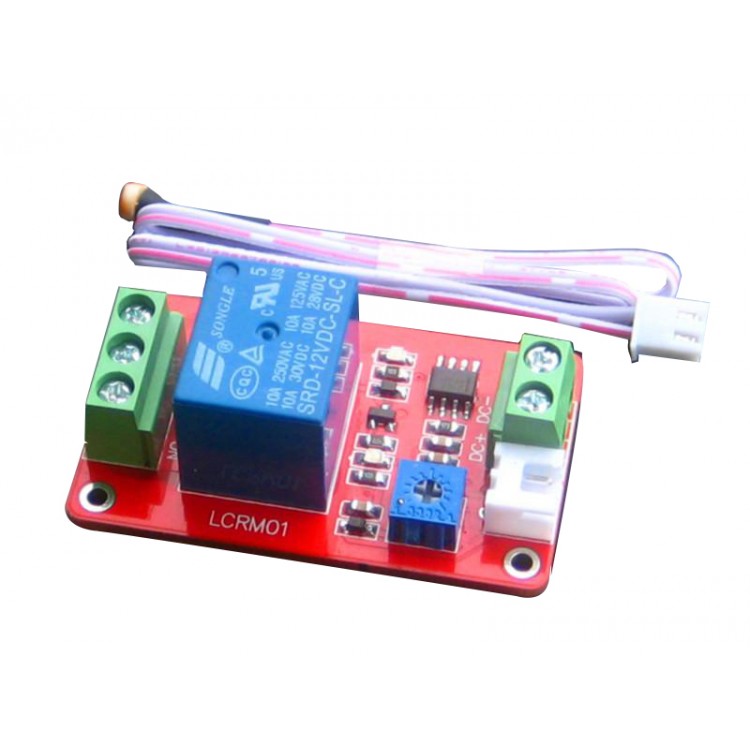

- Light control relay control module description
- Standard 1-channel light control relay module, using genuine quality components, red, blue signal lights, military grade double-sided PCB board, cloth board to consider a comprehensive, stable performance, can be widely used in all kinds of light detection and control

Applications.
- Module can be used as light detection, brightness detection, adjustable via potentiometer detects the brightness threshold, comes relays, do all kinds of brightness detection switch, you can control a variety of lights at night automatically open during the day and automatically turns off and the vehicle supplies control and automation equipment.

Features:
- Using the photoresistor light intensity sensor, comes with genuine quality relay, can directly control AC or DC loads,
- Normally Open Interface Maximum load capacity: AC 0V--250V/10A, DC 0V--30V/10A;
- Can be adjusted via potentiometer sensitivity by adjusting potentiometer, set the start relay threshold, when the dark this threshold, the module relay, bright this threshold, the relay releases;
- Smart regulation design, when the relay, the automatic tuning action threshold, repeated action to solve the problem of the threshold;
- With a power indicator (red), relay status indicator (blue)
- The module Operating voltage 5V, 12V optional user purchase, please be sure to indicate;
- With 4 fixing bolt holes for easy installation;
- The module size: 5.5cm * 3.0cm * 1.8cm;
- The module comes with free 30cm long photoresistance lead;

Instructions for use:
- The photosensitive resistor module on ambient light sensitive, generally used to detect the brightness of the ambient light changes;
- Dark ambient light module in the set threshold, the relay, often beginning with common terminal connected to (and normally closed terminal is disconnected), when the outside ambient light brighter than the set threshold, the relay is switched off, the common and often start off (and normally closed terminal connected);
- Common, normally open, normally closed three ports is equivalent to a dual-control switch, relay coil power, often beginning with common terminal conduction, no electricity, the common and normally closed terminal conduction;

Electrical parameters
- Working voltage: DC 5V or 12V optional
- Operating Current: relay after: 5V module is less than 100mA, 12V module is less than 50mA
- Relay ago: less than 5mA
- Load capacity: AC 0V--250V/10A, DC 0V--30V/10A;

Package list
- Light control relay module 1pc
- With 30cm lead a photoresistor 1pc
