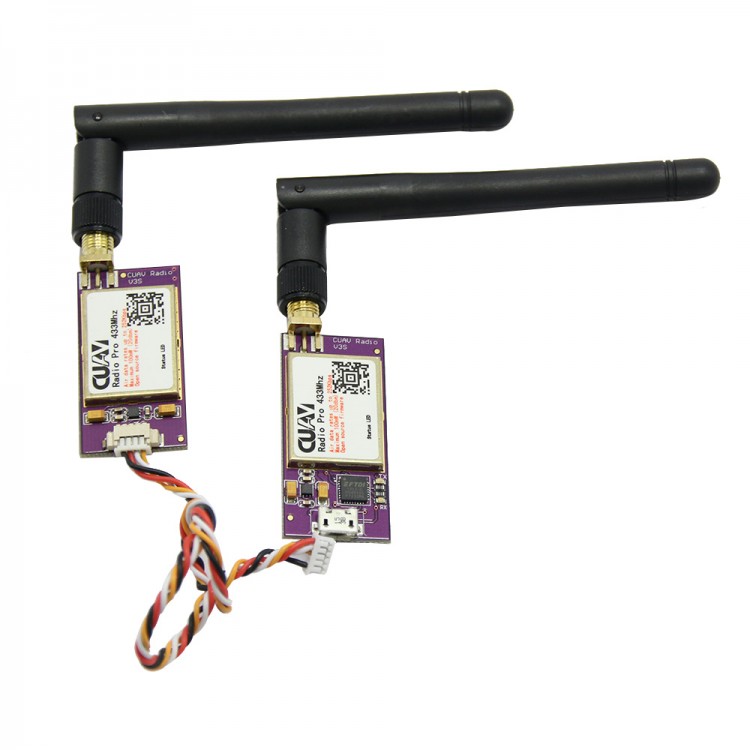

915MHZ CUAV V3 3DR RadioTelemetry System for APM APM2.6 AMP2.5 Flight Control w/ Antenna

Description:
- The 3DR Radio telemetry system is designed as an open source Xbee replacement radio set, offering a lower price, longer range and superior performance to Xbee radios. It’s available in 915Mhz and 433Mhz; and in the following configurations:  serial board (for the air) and USB (for the ground).
- open source firmware.  Interface to the module is via standard 5V-tolerant TTL serial / FTDI USB serial.
- The SiK firmware includes a bootloader that permits radio firmware upgrades over the serial interface, and radio firmware with configurable parameters. Firmware upgrades and configuration are fully supported in the APM Mission Planner. Configuration is also possible through the 3DR Radio Configurator or AT commands.

Test data:
- Range:800M (57600 buad rate)
- Note:CUAV RADIO V3 version with Micro USB port as APM 2 flight control

Hardware features and specifications(915Mhz version)
- Very small size
- Light weight (under 4 grams without antenna)
- Available in 900MHz or 433MHz variants
- Receiver sensitivity to -121 dBm
- Transmit power up to 20dBm (100mW)
- Transparent serial link
- Air data rates up to 250kbps
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Built in error correcting code (can correct up to 25% data bit errors)
- Demonstrated range of several kilometers with a small omni antenna
- Can be used with a bi-directional amplifier for even more range
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM
- Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller

Package including:
- 915 3DR Telemetry
- Atenna and cable
