Tarot 60W TL3301 Drone Searchlight Dimmable Drone Search Light for 1" Diameter Arm Drone Multi-Rotor

Tarot 60W TL3301 Drone Searchlight Dimmable Drone Search Light for 1" Diameter Arm Drone Multi-Rotor

Description:

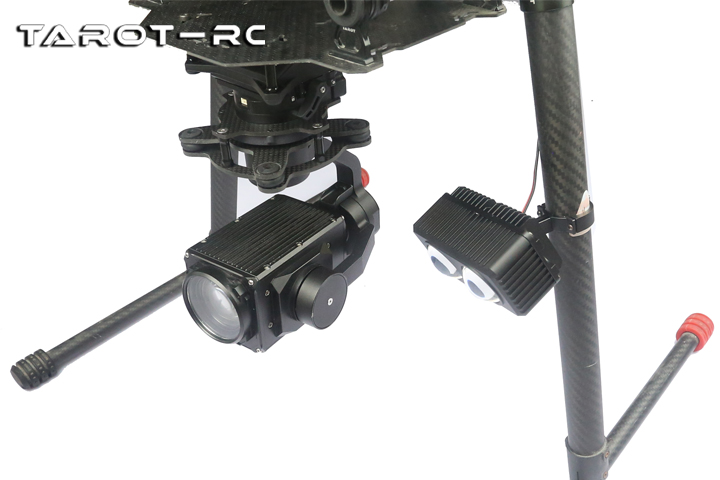

The electrodeless searchlight produced by Tarot adopts double lamp bead components, and the irradiation angle is 15 degrees. When the maximum power is 60W, the central illuminance value of the spot at a distance of 50m/164ft reaches 24 lux; the effective irradiation area reaches 600 square meters at an irradiation height of 80m/262.5ft. This searchlight uses PWM signal to control stepless dimming and flashing functions. It adopts ultra-light design and weighs 203g/0.4lb. It can be installed on the arm or tripod with a diameter of 25mm/1". It can meet the requirements of night patrol, warning drive away, orientation indication, power line patrol, search and rescue and other night operation needs.

Product operation instructions and searchlight working conditions:

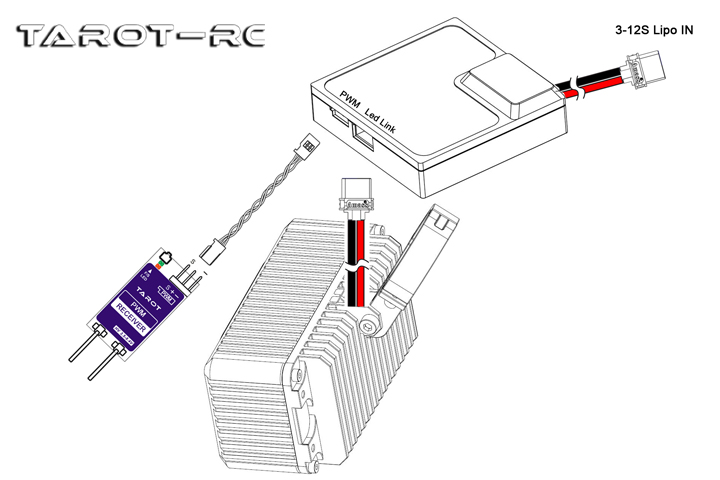

Attention: This product adopts standard PWM remote control servo signal analysis (the following description assumes the 0-100% stroke amount based on the analysis result)
1. When the PWM signal input value remains at 0-10% of the stroke, the searchlight is turned off;
2. When the PWM signal input value reaches 11-90% of the stroke, the searchlight will be dimmed steplessly;
3. When the PWM signal input value reaches 91-100% of the stroke, the searchlight will flash.

Specifications:
- Size: 126 x 131 x 167mm/5 x 5.2 x 6.6"
- FOV: 15°
- Supply voltage: 15-60V
- LED power: 60W
- Luminous flux: 8000lm±3% (power: 60W)
- Light Efficiency: 133.33lm/W (Power: 60W)
- Searching area: 136m² (distance: 50m/164ft)
- Center Illumination: 45Lux (Power: 60W; Distance: 50m/164ft); 12Lux (Power: 60W; Distance: 100m/328.1ft)
- Functional Mode: Always on: 60W; Strobe: 60W

Package Included:

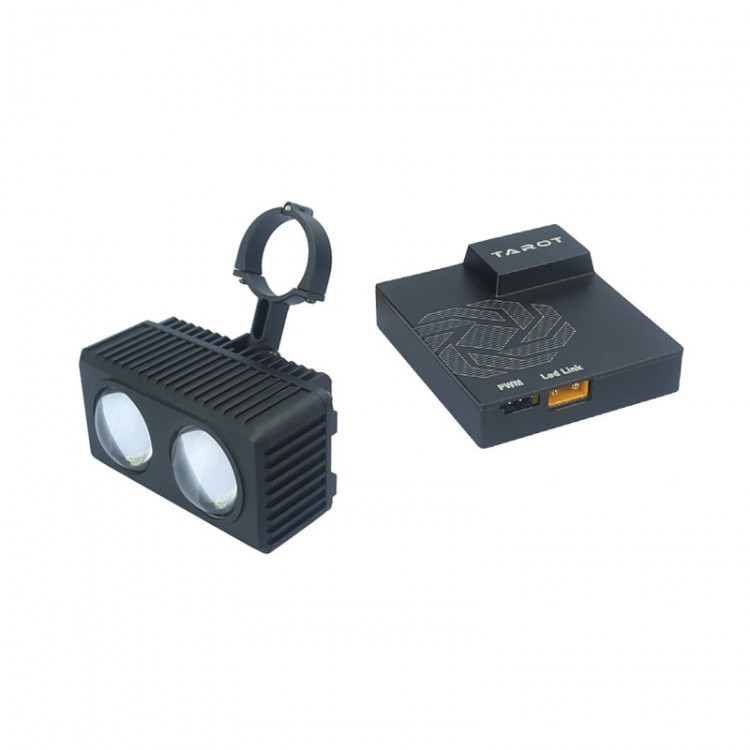

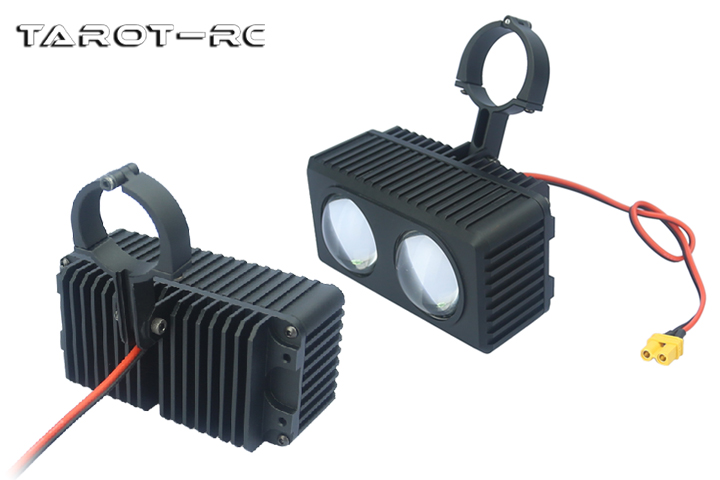

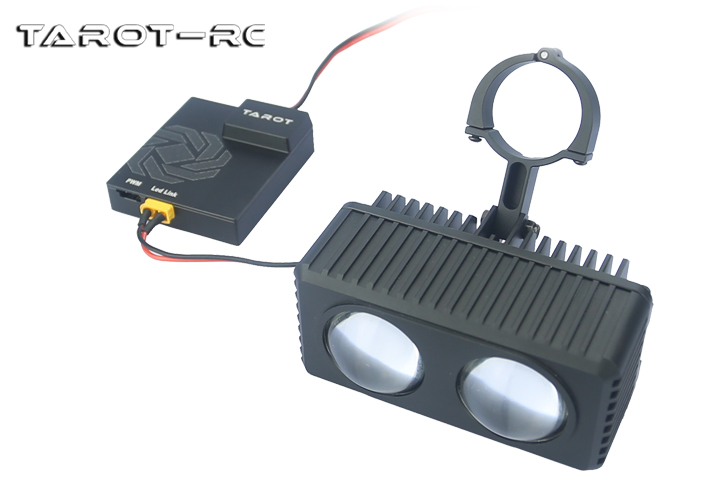

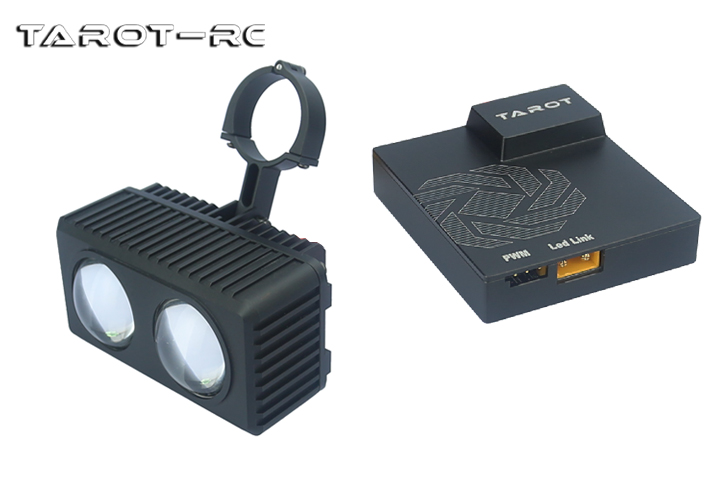

- 1 x Searchlight

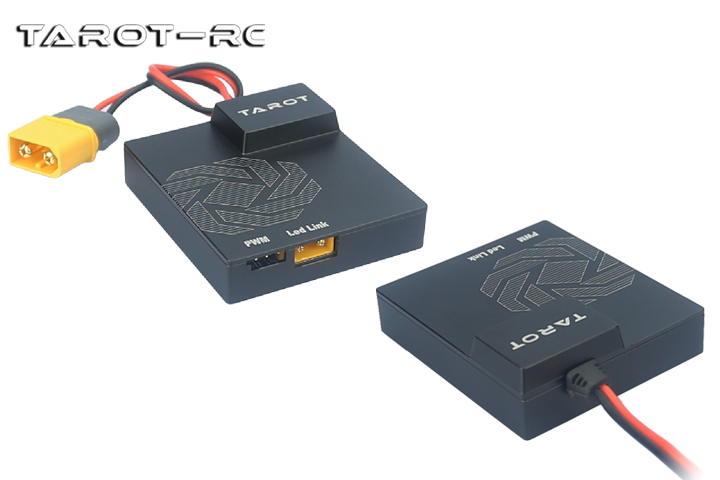

- 1 x Light Controller

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
