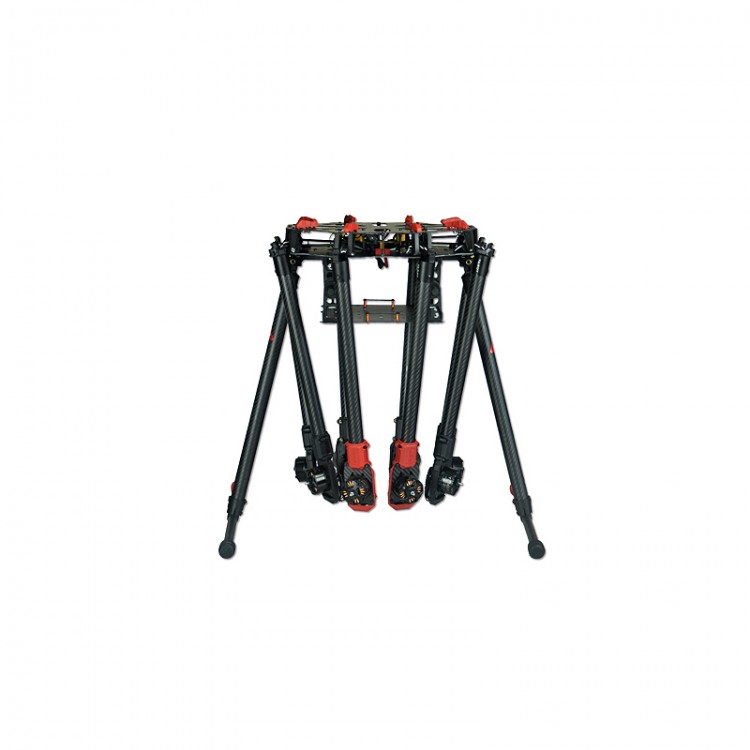

Tarot X8-II TL8X000-Pro 1125MM/44.3" Octocopter Frame Drone Frame Kit Unassembled For Aerial Photography
TAROT X8-II multi-axis aircraft is a new generation version based on the first-generation X8. It is also an 8-axis flight carrier designed for professional aerial photography users. New electric shrink-folding tripod and umbrella-folding arm, the integrated PCB board make the connection of power supply and ESC faster and safer, and provide sufficient installation space for various flight control systems.
8 rotors provides sufficient power, even if one of the axes stops working unexpectedly, the aircraft can be kept in a stable state. It is light and easy to carry. The effective time of no-load hover is 31 minutes.
- Diagonal wheelbase: 1125mm/44.3"
- Folding propeller: 16"
- Arm length (arm to the center of motor mount): 395mm/15.6"
- Arm weight (arm and motor mount): 122g/0.3 lb
- Center plate diameter: 335mm/13.2"
- Landing gear headroom: 490mm/19.3"
- 6S brushless ESC: 40A (recommended)
- No-load hovering time: 31MIN (21.0V remaining battery power; battery is not included)
- Working environment temperature: -10℃ to 40℃
- Net weight: 3.42kg/7.5 lb
- Integrated PCB Board x 1
- Arms (Diameter 25x355MM/1x14") x 8
- TL96027 Motor Mounts x 8
- Electric Landing Gears (Diameter 25x425MM/1x16.7") x 2
- TL8X002-02 Drivers For Landing Gears x 1
- Board For Battery (275x190x1.6MM/10.8x7.5x0.06") x 1
- Bags of Accessories x 6
- User Manual x 1
- Battery and other accessories are not included.
- Assembling is needed.
Recommended Parts (Not Included):
- Propeller: 1655 high-efficiency folding propeller clip set TL100D07
- Brushless motor: 4114/320KV multi-axis brushless motor TL100B08
- Brushless ESC: HobbyWing 40A TL2923
- Battery Specifications: 25C, 22.2V, 22000MHA
- X series carbon fiber canopy TL8X008
