Tarot 1.2G Wireless Transmitter Receiver 600MW AV TX RX with 1.2G Antenna for FPV Quadcopter Drone TL300N5

Tarot 1.2G Wireless Transmitter Receiver 600MW AV TX RX with 1.2G Antenna for FPV Quadcopter Drone TL300N5

Description:
TAROT developed 8 frequency,600mw 1.2g image transmission system. The transmission distance is up to 7000m-8000m( without obstacle).With 6061T6 aluminum alloy for heat dissipation and super mini appearance and ultra-light weight ,it is specially small-sized multi-rotor drones and racing drones. 8 frequency is compatible with regular frequency,providing 1 video signal and 2 audio signal far distance transmission, 5V1A power output as well. (Can be used for image overlays, cameras ,etc . Please confirm the voltage and current to prevent related equipment being burnt), that transmitting end is just 15.2g (without antenna).

AV Transmitter Specifications:
- Weight: 15.2g ( without antenna)
- Dimension: 21*33*7.5MM
- Working Frequency: 1060-1380MHz
- Channel: 4 bands / 8 channel
- Channel: 3-DIP switch
- Output Power: 28dbm (600mw)
- Input Voltage: DC 7-26V (2-6S)
- Output Voltage /current : 5V / 1A
- Antenna Adaptor: RP-SMA 50  ohm
- Working Temperature: -10 ~ 60 degrees
- Modulation type: FM / Frequency: FM

Note:
- Install the antenna before connecting the power to avoid further damage.
- Choose proper working frequency and tune the receiver to the same frequency. Please refer to the channel list.
- Do not touch the surface of transmitter while operating. It is normal that the surface is getting hot.
- The input voltage range is between 7-26V (2-6S), do not overload the working voltage.
- The output voltage is 5V,the output current is 1A. Please confirm the current and voltage of the camera.

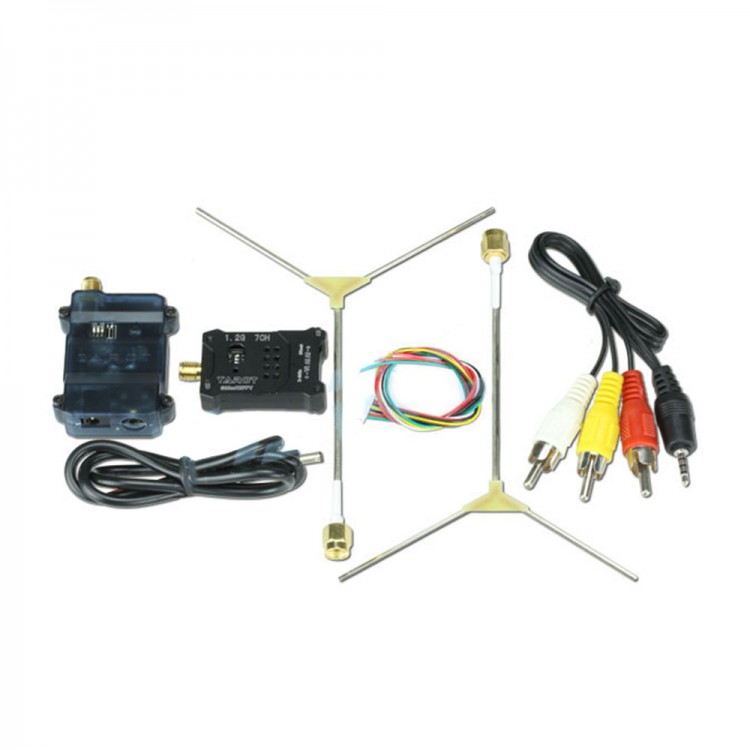

Package Includes:
- 1 x 1.2G FPV Transmitter
- 1 x 1.2G FPV Receiver
- 1 x 7P colorful strip line
- 1 x 1.2G transmitting antenna
- 1 x Manual
