Tarot QAV250 Carbon Fiber Quadcopter TL250A with Emax Motor & ESC & 5.8G TX RX & CC3D Flight Controller & Camera & OSD Combo

Availability: In stock, usually dispatched in 1 business day

  • Price:$279.80
  • Price in reward points: 2798 Reward Points: 28
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $274.20 $268.61 $260.21 $249.02 Contact US
Quantity:

Tarot QAV250 Carbon Fiber Quadcopter TL250A with Emax Motor & ESC & 5.8G TX RX & CC3D Flight Controller & OSD Combo

Tarot 250 QAV Description:
- Tarot mini 250 QAV quadcopter is the only quadcopter in the same type, which can integrates camera, image superposition system, battery power, ESC, 5.8G wireless telemetry, antenna and GPS. Can all be pluged in or welded on the PCB board, reducing wiring, easy for installation
- All adopts 2.1mm pure carbon fiber, supporting structure is simple, using 450 landing gear is antidamper
- PCB board integrates all holdes for electronic devices, the reasonable light weight frame provides a longer lasting time

Tarot 250 QAV Features:
- Multi holes camera installation board, adopting middle installation design. Adopting camera TL300M, to achieve better viewing effect. PCB integrates version and 2.1mm pure carbon fiber board adopts metal CNC parts
- Lipo battery can be directly pluged in PCB board and XT60 plug. The tail part has place for 5.8G wireless antenna and GPS plug. ESC can be directly welded on the responding PCB board

Tarot 250 QAV Parameters:
- Wheelbase: 250mm
- Empty aicraft wheight/ total weight: 43mm/85.8mm
- Empty aicraft length/ total length:  195MM/288MM
- Empty aircraft width/ total width/: 219mm/315mm
- Bottom head room: 21.8mm
- Empty aircraft weight/ take off weight: 115G/430G(including 2200mha battery)

Tarot 250 QAV Specs:
- 2.0 middle pure carbon board x 1 (159×33×2.0MM)11.7G
- 2.0 front pure carbon board x 1 (219×49×2.0MM)16.5G
- 2.0 back pure carbon board x 1 (219×58×2.0MM)16.9G
- 1.0 front pure carbon board x 1 (159×33×2.0MM) 1.3G
- PCB cable board x 1 (181×106×19.5MM) 28G
- Plastic landing gear x 1 (175×108×43MM) 25G
- Front metal support holder  x 1(73×10×8MM) 5G
- M2X4MM half round head hexa screw 0.2G x 7
- Upper metal supporting holder x 2 (48.5×4×8MM) 1.7G
- M2 x 12mm cup hexa screws 0.3G  x6
- Flight control two sides paste x 1 (35×35×1.5MM) 0.5G
- Battery ribbon  x 1
- Manual x 1

Tarot CC3D Description:
- CC3D openpilot opensource flight control is suitable fro Tarot MINI 200/250/300 multicopter
- With damper two sides sticks, and three connecting cables
- Shell size: 40mm*40mm*14mm
- Board size: :36mm*36mm
- Board net weight: 7.3g
- Total weight: 15.2g

Tarot 5.8G Telemetry 600MW:
- Tarot independent developing TX RX package with 32 frequency point
- 600mw 5.8G telemetry system has super mini size and light weight, specially suitable for mini multirotor and QAV quadcopter
- 32 frequency points are compatible with normal frequency, providing 1 channel of video signal, 2 channels of audio signal distant transmission, and also providing 5V 1A power supply output

Tarot OSD Module:
- TAROT mini applicable across other sections 250/300 machines, optional English interface, you can set the parameters directly on the screen. Standard chip barometer and GPS module, so the height and position parameters more accurately. TAROT Mini 250/300 machine has been set aside through video overlay system installation holes, use more convenient.
OSD video overlay system has the following features: battery voltage / flight / flight speed / altitude / home direction / distance from home / cumulative voyage / Lift Rate / longitude latitude / number of satellites / azimuth functions.
OSD video overlay system button functions
1: After the start, short press to save the family's position, long press to enter the setup menu. Double-click twice as fast switching video formats (can also be switched in the Settings menu)
2: Press the Setup menu for the selection function, press for the preservation or confirmation.
Battery voltage calibration:
3: first with a multimeter measure the authenticity of the battery voltage, battery voltage into the calibration set it to the measured voltage exit. Calibration voltage only with 3S calibration.

Tarot 12V Mini Camera PAL 600TVL:
- Definition: 600TV Lines HD
- Available pixels: PAL=720(H) × 576 (V)
- Video format: PAL
- Sensible chip: 1/3 inch HD Color CMOS
- Video output: 1.0Vp-p/ 75 ohm
- Minimal illumination:  0.008Lux
- Power consumption: 40mA ±10%
- Working power: DC5-15V +10%
- Synchronous system: internal synchronous
- SNR: large than 50dB
- Electronic shutter: (N)1/60-1/10000s, (P)1/50-1/10000s
- Working temp: 0-45 degree

Emax MT1806 Motor and ESC Features:
Motor:
- KV: 2280
- No. of cell: 2-3S
- Framework: 12N 14P
- Propeller: 5-6inch
- Length: 26.7mm
- Weight: 18g
- Shaft: 2MM
- Diameter: 25mm

ESC:
- Based on Simonk programme
- Low voltage protection, over current protection, power on self detection function
- Supportmax rotate speed: 210,000r(2 magnetic poles), 70,000r(6 magnetic pole), 35000r(12 magnetic poles)
- MCJ and BEC adopts different stabilizer, improve anti interference ability
- ESC multiparameters can be set through RC
- Throttle range can be set, to compatible with different receiver, has very good low speed performance
- Built in linear BEC or switch BEC
http://gd4.alicdn.com/imgextra/i4/1811422106/TB2DyaNXVXXXXcnXXXXXXXXXXXX_%21%211811422106.jpg

FlySky FS-T6 2.4GHz Digital Proportional 6 Channel Transmitter and Receiver System:
- If you need FS-T6 Manual,  please leave your email to us!
- FlySky Introduces its newest 6 channel 2.4GHz system, The FS-T6. After years of success with the CT6B, FlySky presents the new FS-T6 with loads of cool and convenient features making the operation of this transmitter simple and instinctive.
- The 6-channel FlySky FS-T6 is the perfect transmitter for sport modelers who want the power of a programmable transmitter but don't necessarily need a lot of excess features they do not use. It includes all of the important features and programmable parameters to support a variety of helicopters, gliders, and airplanes. It even has the ability to store 20 models allowing the user to save a whole fleet of aircrafts.
- Programming the FS-T6 is very easy and intuitive. It is implemented with a simple click and scroll dial allowing quick and easy menu navigation and manipulation. The large backlite LCD screen with large fonts is easy to read and the simplified menus will immediately put first-time programmers at ease. Many programming functions like throttle curves and expo are graphically depicted to give you a clearer picture of the changes you're making.
- FlySky AFHDS (Automatic Frequency Hopping Digital System) 2.4GHz system offers a lot of advantages. It is equipped with a super active and passive anti-jamming capability and has very low power consumption with high receiver sensitivity. The 2.4GHz system puts the radio out of the frequency range by any generated by other electronic components in your model such as the brushless motor, speed controller, servos, or other metal to metal noise. This eliminates interference and glitching that can plague a traditional radio system. Extreme rigorous testing by FlySky engineers makes this AFHDS system solid and worthy.

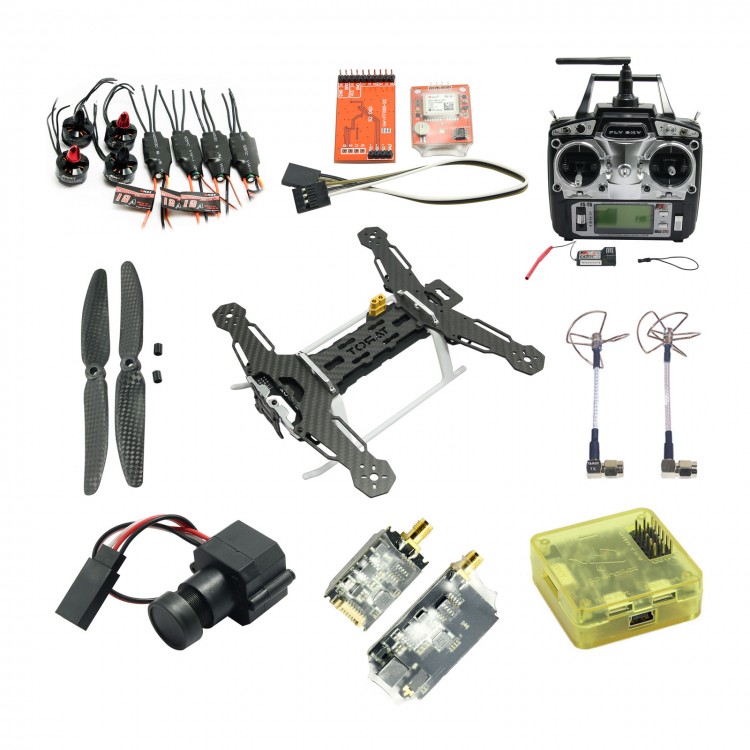

Package Listing:
- 1 x Tarot 250 QAV Carbon Fiber Quadcopter TL250A Frame (SKU:34774)
- 2 x EMAX MT1806 2280KV CW   (SKU:30478)
- 2 x EMAX MT1806 2280KV CCW  (SKU:30479)
- 4 x EMAX Simonk 12A ESC  (SKU:30765)
- 1 x Tarot CC3D Flight Controller (SKU:34772)
- 1 x Tarot OSD Module
- 1 x Tarot 5.8G Telemetry 600MW FPV Transmitter Receiver
- 1 x Tarot 5.8G Telemetry Antenna
- 1 x Tarot 12V Mini Camera PAL 600TVL TL300M
- 2pairs x 6030 Carbon Propeller (SKU:32274)
- 1 x FlySky FS-T6 2.4GHz Digital Proportional 6 Channel Transmitter and Receiver System(SKU:30361)
