Tarot QAV250 Carbon Fiber Quadcopter TL250A with MT1806 Motor & CC3D & TX RX & XRotor 10A ESC for FPV Photography Combo

Tarot QAV250 Carbon Fiber Quadcopter TL250A with MT1806 Motor & CC3D & TX RX & XRotor 10A ESC for FPV Photography Combo

Tarot 250 QAV Description:
- Tarot mini 250 QAV quadcopter is the only quadcopter in the same type, which can integrates camera, image superposition system, battery power, ESC, 5.8G wireless telemetry, antenna and GPS. Can all be pluged in or welded on the PCB board, reducing wiring, easy for installation
- All adopts 2.1mm pure carbon fiber, supporting structure is simple, using 450 landing gear is antidamper
- PCB board integrates all holdes for electronic devices, the reasonable light weight frame provides a longer lasting time

Tarot 250 QAV Features:
- Multi holes camera installation board, adopting middle installation design. Adopting camera TL300M, to achieve better viewing effect. PCB integrates version and 2.1mm pure carbon fiber board adopts metal CNC parts
- Lipo battery can be directly pluged in PCB board and XT60 plug. The tail part has place for 5.8G wireless antenna and GPS plug. ESC can be directly welded on the responding PCB board

Tarot 250 QAV Parameters:
- Wheelbase: 250mm
- Empty aicraft wheight/ total weight: 43mm/85.8mm
- Empty aicraft length/ total length:  195MM/288MM
- Empty aircraft width/ total width/: 219mm/315mm
- Bottom head room: 21.8mm
- Empty aircraft weight/ take off weight: 115G/430G(including 2200mha battery)

Tarot 250 QAV Specs:
- 2.0 middle pure carbon board x 1 (159×33×2.0MM)11.7G
- 2.0 front pure carbon board x 1 (219×49×2.0MM)16.5G
- 2.0 back pure carbon board x 1 (219×58×2.0MM)16.9G
- 1.0 front pure carbon board x 1 (159×33×2.0MM) 1.3G
- PCB cable board x 1 (181×106×19.5MM) 28G
- Plastic landing gear x 1 (175×108×43MM) 25G
- Front metal support holder  x 1(73×10×8MM) 5G
- M2X4MM half round head hexa screw 0.2G x 7
- Upper metal supporting holder x 2 (48.5×4×8MM) 1.7G
- M2 x 12mm cup hexa screws 0.3G  x6
- Flight control two sides paste x 1 (35×35×1.5MM) 0.5G
- Battery ribbon  x 1
- Manual x 1

Tarot CC3D Description:
- CC3D openpilot opensource flight control is suitable fro Tarot MINI 200/250/300 multicopter
- With damper two sides sticks, and three connecting cables
- Shell size: 40mm*40mm*14mm
- Board size: :36mm*36mm
- Board net weight: 7.3g
- Total weight: 15.2g

Tarot MT1806 Motor Parameters:
- Support lipo section: 2-3S
- Prop dia: 5MM
- Prop: 5 inch three blade propeller TL300E
- Max throttle: 460g
- Interphase resistance：≤4mΩ
- Stator ida: 18MM
- Unload current: 0.4A-0.7A
- Stator thickness: 6.0
- Stator terminal number: 12
- Motor poles number: 14
- Rotation speed:  2280KV±5%
- Motor external dia: 23MM
- Axis core diameter: 2MM
- Motor length: 26.5MM
- Motor weight: 18G

Hobbywing XRotor 10A opto ESC Description:
- Multirotor professional programme, very quick throttle response speed, surpass all kinds of open source software
- Specially designed for disc motor optimized firmware, has excellent compatibility
- Highly intelligence, well adaptive ability, easy operation
- Throttle signal cable is twisted pair, can effectly reduce the serial interference transmitted through  cooper wire, making the flying more stable
- Max support 621Hz throttle signal, compatible with all kinds of flight control
- Adopting MOSFET professional driving chip, performance and stability will surpass driver circuit made by seperated components
- Super low internal resistor MOSFET, strong current resistance
- Transient current: 15A
- Continuous current: 10A
- BEC: NO
- Battery pack: 2-3S
- Weight: 6.5g
- Dimension: 36.5*16.4*4.1
- Application: wheelbase 250mm multirotor

FlySky FS-T6 2.4GHz Digital Proportional 6 Channel Transmitter and Receiver System:
- If you need FS-T6 Manual,  please leave your email to us!
- FlySky Introduces its newest 6 channel 2.4GHz system, The FS-T6. After years of success with the CT6B, FlySky presents the new FS-T6 with loads of cool and convenient features making the operation of this transmitter simple and instinctive.
- The 6-channel FlySky FS-T6 is the perfect transmitter for sport modelers who want the power of a programmable transmitter but don't necessarily need a lot of excess features they do not use. It includes all of the important features and programmable parameters to support a variety of helicopters, gliders, and airplanes. It even has the ability to store 20 models allowing the user to save a whole fleet of aircrafts.
- Programming the FS-T6 is very easy and intuitive. It is implemented with a simple click and scroll dial allowing quick and easy menu navigation and manipulation. The large backlite LCD screen with large fonts is easy to read and the simplified menus will immediately put first-time programmers at ease. Many programming functions like throttle curves and expo are graphically depicted to give you a clearer picture of the changes you're making.
- FlySky AFHDS (Automatic Frequency Hopping Digital System) 2.4GHz system offers a lot of advantages. It is equipped with a super active and passive anti-jamming capability and has very low power consumption with high receiver sensitivity. The 2.4GHz system puts the radio out of the frequency range by any generated by other electronic components in your model such as the brushless motor, speed controller, servos, or other metal to metal noise. This eliminates interference and glitching that can plague a traditional radio system. Extreme rigorous testing by FlySky engineers makes this AFHDS system solid and worthy.

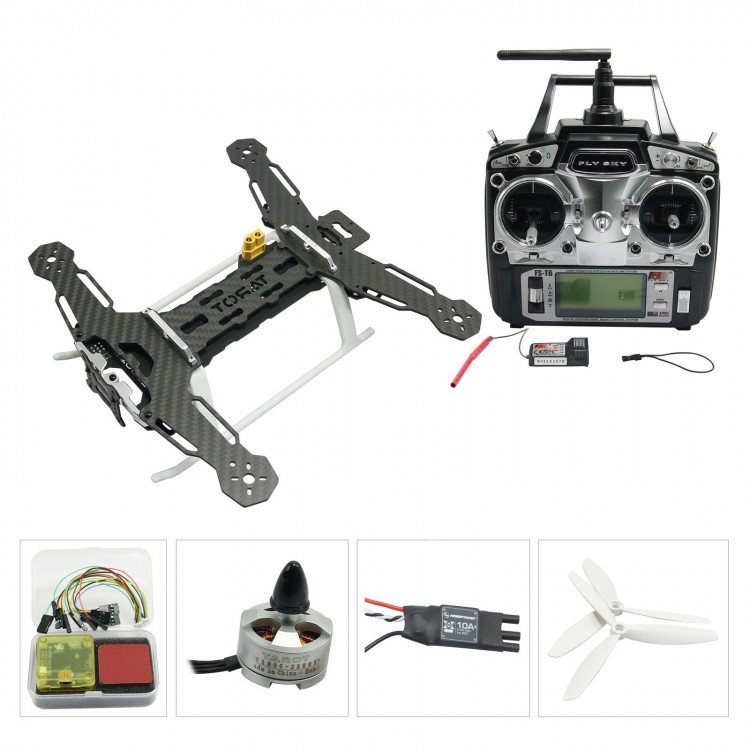

Package Listing:
- 1 x Tarot 250 QAV Carbon Fiber Quadcopter TL250A Frame (SKU:34774)
- 2 x Tarot MT1806 2280KV CW   (SKU:35709)
- 2 x Tarot MT1806 2280KV CCW  (SKU:35708)
- 4 x Hobbywing XRotor-10A-opto Series Multiroter ESC (SKU:31350)
- 4 x Propeller
- 1 x Tarot CC3D Flight Controller (SKU:34772)
- 1 x FlySky FS-T6 2.4GHz Digital Proportional 6 Channel Transmitter and Receiver System(SKU:30361)
