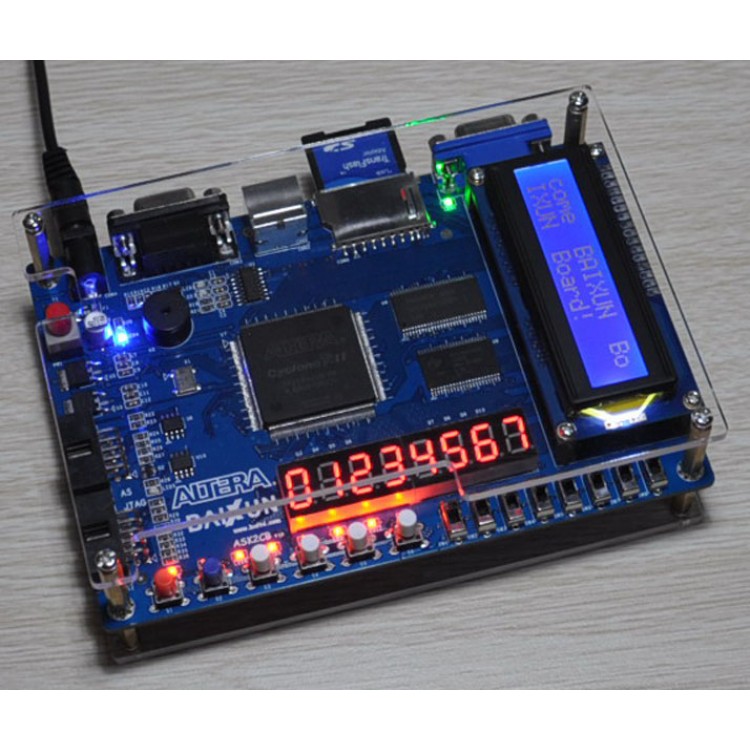

Altera EP2C8Q208 NIOSII FPGA Board Nor Flash+SDRAM
  • Altera EP2C8Q208 NIOSII FPGA Board Nor Flash+SDRAM
  • Altera EP2C8Q208 NIOSII FPGA Board Nor Flash+SDRAM
  • Altera EP2C8Q208 NIOSII FPGA Board Nor Flash+SDRAM
  • Altera EP2C8Q208 NIOSII FPGA Board Nor Flash+SDRAM
  • Altera EP2C8Q208 NIOSII FPGA Board Nor Flash+SDRAM

  • SKU:24079
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 7
  • Price:$73.99
  • Price in reward points: 740
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $72.51 $71.03 $68.81 $65.85 Contact US

- CycloneII Core: EP2C8Q208 FPGA chip.
- EPCS4 configuration Flash chip.
- Configuration mode: JTAG and AS.
- Onboard active crystal clock 50Mhz.
- 8 User LEDs/
- Onboard 4M Bit SRAM, Model CY7C1041VC33.
- Onboard 256M Bit (32M bytes) SDRAM.
- Onboard 64M Bit NOR FLASH (8M bytes) (as storage device for uCOSII, uCLINUX, Linux, Nucleus).
- Onboard SD card socket for external SD card memory.
- One RS232 serial port with MAX3232.
- One buzzer.
- two 4-digit 7-segment LED digital tube.
- 8 DIP switches for decoding experiment.
- 5 User buttons.
- One PS / 2 keyboard and mouse interface, can als beuse the PS / 2 adapter for both Keyboard and Mouse application together)
- LCD1602/LCD12864 interface.
- AT24C04 IIC Interface.
- 8 bit VGA interface, support for 256 color display.
- 16 bit TFT LCD interface, support for various size TFT LCD screen.(4.3" TFT LCD module is optional, please contact us for buying)
- Lead out 32 I/O ports, two clock inputs, two clock output via 40-pin IDE transposon for easy expansion

PackageIncludes:
- Altera CycloneII EP2C8Q208 Development Boardx 1
- DC 5V Power Adapterx 1
- Romote controllerx 1
- Rs232 cablex 1
- CD for Datasheet & Source codex 1
