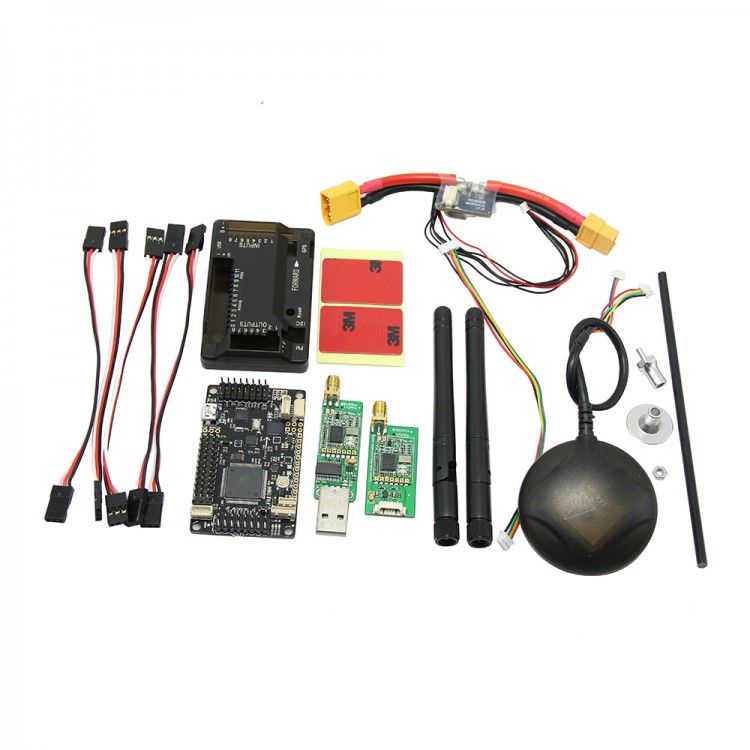

APM2.6 ArduPilot UAV Flight Controller APM 2.6+ 6M GPS w/ Compass+Power Module+ 915Mhz 3DR Radio Telemetry
- APM 2.6 Flight board with protective case and cables
- NEO-6M GPS module for APM with compass
- 1 set 3DRobotics 3DR Radio Telemetry Kit for APM 2.5/ APM 2.6 ( 915Mhz )
- APM2.5 / APM2.6 ArduPilot Power Module/ Voltage Current 90A Module (APM Power Module)
- The ArduPilot Mega 2.6 is a complete open source autopilot system and the bestselling technology that won the prestigious 2012 Outback Challenge UAV competition. This version is ready to use, with no assembly required. It allows the user to turn any fixed, rotary wing or multirotor vehicle (even cars and boats) into a fully autonomous vehicle; capable of performing programmed GPS missions with waypoints.
- This revision of the board has no onboard compass, which is designed for vehicles (especially multicopters and rovers) where the compass should be placed as far from power and motor sources as possible to avoid magnetic interference. (On fixed wing aircraft it's often easier to mount APM far enough away from the motors and ESCs to avoid magnetic interference, so this is not as critical, but APM 2.6 gives more flexibility in that positioning and is a good choice for them, too). This is designed to be used with the 3DR uBlox GPS with Compass (see option below), so that the GPS/Compass unit can be mounted further from noise sources than APM itself.
- APM 2.6 requires a GPS unit and external compass for full autonomy. Choose your compass from options menu at right.
- Arduino Compatible
- Comes pre-soldered (with angle pins) and tested.
- Includes 3-axis gyro, accelerometer along with a high-performance barometer
- External Compass (Optional)
- Onboard 4 MP Dataflash chip for automatic datalogging
- Digital compass powered by Honeywell's HMC5883L-TR chip, now included on the main board.
- Optional off-board GPS, uBlox NEO6 (select GPS option from options)
- One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.
- Set includes Telemetry cable, Micro USB cable, DF13 6 Position connector for the Power Module (select from options) and GPS connector cable.
- Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, Telemetry radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.
