Ublox NEO-6M GPS(built-in compass) Module Aircraft Flight Controller w/ Case For Arduino MWC IMU APM2.6

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.90
  • Price in reward points: 189 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.52 $18.14 $17.58 $16.82 Contact US
Quantity:

Ublox NEO-6M GPS(built-in compass) Module Aircraft Flight Controller w/ Case For Arduino MWC IMU APM2.6

Product description
 - Newest Version Ublox NEO-6M GPS Module for Flight Control Model Aircraft GPS Module CJMCU-6M
- U-BLOX Ublox NEO-6M latest version of the GPS module serial output
- Ultra-small integrated integrated antenna is compatible with a variety of flight control
- GPS module to the host computer software

Summary
- PCB with Immersion Gold process. The signal is more stable.
- Main chip: U-BLOX NEO-6M
- C / A code 1.023MHz stream
- Receiving frequency: L1 1575.42 MHz]
- Positioning performance
- 2D plane: 3m [average]
- 2D plane: 2m [average], WAAS auxiliary.
- Drift: <0.02m / s
- Timing accuracy: 1us
- Refer to the coordinate system: WGS-84
- Maximum altitude: 18,000 m
- Maximum Speed: 515m / s
- Acceleration: <4g
- Electrical properties:
- Tracking sensitivity:-161dBm
- Acquisition sensitivity:-148dBm
- Cold Start: 38s [average]
- Warm Start: 35s [average]
- Hot start time: 1s [average]
- Recapture time: 0.1s [average]
- Operating temperature:
- -40 C to +80 C
- Interface electrical properties:
- Wide voltage range: Main power for +3.5 V ~ +5.5 V, owned RTC power

Note:the APM2.6 case not included ,the picture just show that the cable is compatible with APm2.6

On-board antenna effect is not ideal, For a stronger signal, and can replace the antenna. Module opposite of the interface can be connected to the ceramic integrated antenna

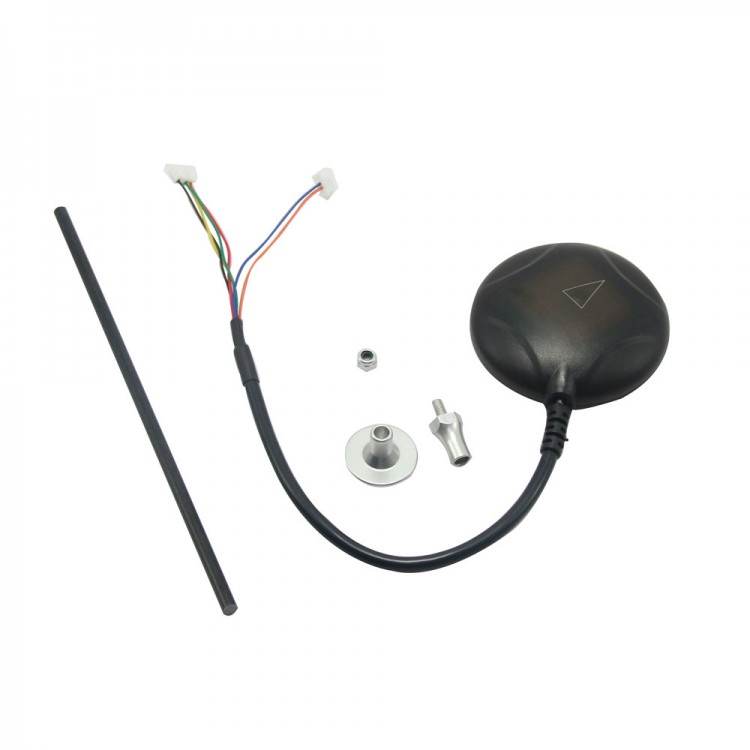

Package includes:
- 1 X Ublox NEO-6M GPS Module(built-in compass)
- 1 X GPS Case
- 1 X GPS Bracket
